Thermokon · Cable sensor
TF14 passive
Passive cable temperature sensor with a 4 mm stainless probe and a choice of Pt100, Pt1000, Ni1000 or NTC elements.
Sign in for trade prices
Availability and lead time confirmed on your quote
Part number69267
Datasheet, PDF
- Quotes answered within 24 hours, no account needed
- DHL, under 15 kg £13.50 ex VAT
- Technical support from the people who commission it
Specification
Communication
- Connection
- Plug-in terminal up to 2.5 mm2, removable M20 cable entry for cable 4.5 to 9 mm
Environment
- Protection
- IP65 (pressed probe) or IP67 (rolled probe), enclosure IP65 IP rating
Performance
- Output signal
- Passive resistance element
- Sensor element
- Pt100, Pt1000, Pt1000 1/3 DIN, Ni1000, Ni1000 TK5000 or NTC10k, by part
- Measuring range
- Operating ranges -35 to +100, -50 to +150, -50 to +180 or -80 to +250 °C, by part
- Accuracy
- Depends on element and class, for example ±0.1 K typical at 0 °C for 1/3 DIN
- Probe length
- 50, 100 or 150 mm, diameter 4 mm, stainless steel V4A (1.4571)
Physical
- Cable length
- 1 m (2 m on one part), 2 wire, 3 wire or 4 wire, PVC, silicone or PTFE
- Housing material
- PC, USE-S enclosure
- Colour
- Pure white
Part numbers
- 64347Pt100, up to 100 °C, 50 mm probe, 1 m cable
- 69267Pt1000, up to 100 °C, 50 mm probe, 1 m cable
- 69427Pt1000 1/3 DIN, up to 100 °C, 50 mm probe, 1 m cable
- 73844NTC10k, up to 100 °C, 50 mm probe, 1 m cable
- 73080Ni1000, up to 100 °C, 50 mm probe, 1 m cable
- 73240Ni1000TK5000, up to 100 °C, 50 mm probe, 1 m cable
- 64354Pt100, up to 180 °C, 50 mm probe, 1 m cable
- 78405Pt1000, up to 180 °C, 50 mm probe, 1 m cable
- 78603Pt1000 1/3 DIN, up to 180 °C, 50 mm probe, 1 m cable
- 80408NTC10k, up to 150 °C, 50 mm probe, 1 m cable
- 78795Ni1000, up to 180 °C, 50 mm probe, 1 m cable
- 78993Ni1000TK5000, up to 180 °C, 50 mm probe, 1 m cable
- 95563Pt100, up to 250 °C, 50 mm probe, 1 m cable
- 97185Pt1000, up to 250 °C, 50 mm probe, 1 m cable
- 91633Pt1000 1/3 DIN, up to 250 °C, 50 mm probe, 1 m cable
- 91831Ni1000, up to 250 °C, 50 mm probe, 1 m cable
- 97338Ni1000TK5000, up to 250 °C, 50 mm probe, 1 m cable
- 57554Pt100, up to 100 °C, 100 mm probe, 1 m cable
- 57561Pt100, up to 100 °C, 150 mm probe, 1 m cable
- 78009Pt100, up to 180 °C, 100 mm probe, 1 m cable
- 78016Pt100, up to 180 °C, 150 mm probe, 1 m cable
- 96126Pt100, up to 250 °C, 100 mm probe, 1 m cable
- 96195Pt100, up to 250 °C, 150 mm probe, 1 m cable
- 69274Pt1000, up to 100 °C, 100 mm probe, 1 m cable
- 69281Pt1000, up to 100 °C, 150 mm probe, 1 m cable
- 78443Pt1000, up to 180 °C, 100 mm probe, 1 m cable
- 78481Pt1000, up to 180 °C, 150 mm probe, 1 m cable
- 97239Pt1000, up to 250 °C, 100 mm probe, 1 m cable
- 91510Pt1000, up to 250 °C, 150 mm probe, 1 m cable
- 69434Pt1000 1/3 DIN, up to 100 °C, 100 mm probe, 1 m cable
- 69441Pt1000 1/3 DIN, up to 100 °C, 150 mm probe, 1 m cable
- 78641Pt1000 1/3 DIN, up to 180 °C, 100 mm probe, 1 m cable
- 78689Pt1000 1/3 DIN, up to 180 °C, 150 mm probe, 1 m cable
- 91671Pt1000 1/3 DIN, up to 250 °C, 100 mm probe, 1 m cable
- 91718Pt1000 1/3 DIN, up to 250 °C, 150 mm probe, 1 m cable
- 73134Ni1000, up to 100 °C, 100 mm probe, 2 m cable
- 73103Ni1000, up to 100 °C, 150 mm probe, 1 m cable
- 78832Ni1000, up to 180 °C, 100 mm probe, 1 m cable
- 78870Ni1000, up to 180 °C, 150 mm probe, 1 m cable
- 91879Ni1000, up to 250 °C, 100 mm probe, 1 m cable
- 91916Ni1000, up to 250 °C, 150 mm probe, 1 m cable
- 73257Ni1000TK5000, up to 100 °C, 100 mm probe, 1 m cable
- 73264Ni1000TK5000, up to 100 °C, 150 mm probe, 1 m cable
- 79037Ni1000TK5000, up to 180 °C, 100 mm probe, 1 m cable
- 79075Ni1000TK5000, up to 180 °C, 150 mm probe, 1 m cable
- 97376Ni1000TK5000, up to 250 °C, 100 mm probe, 1 m cable
- 97413Ni1000TK5000, up to 250 °C, 150 mm probe, 1 m cable
- 73851NTC10k, up to 100 °C, 100 mm probe, 1 m cable
- 73868NTC10k, up to 100 °C, 150 mm probe, 1 m cable
- 81443NTC10k, up to 150 °C, 100 mm probe, 1 m cable
- 80484NTC10k, up to 150 °C, 150 mm probe, 1 m cable
From the manufacturer's datasheet for TF14 passive.
Overview

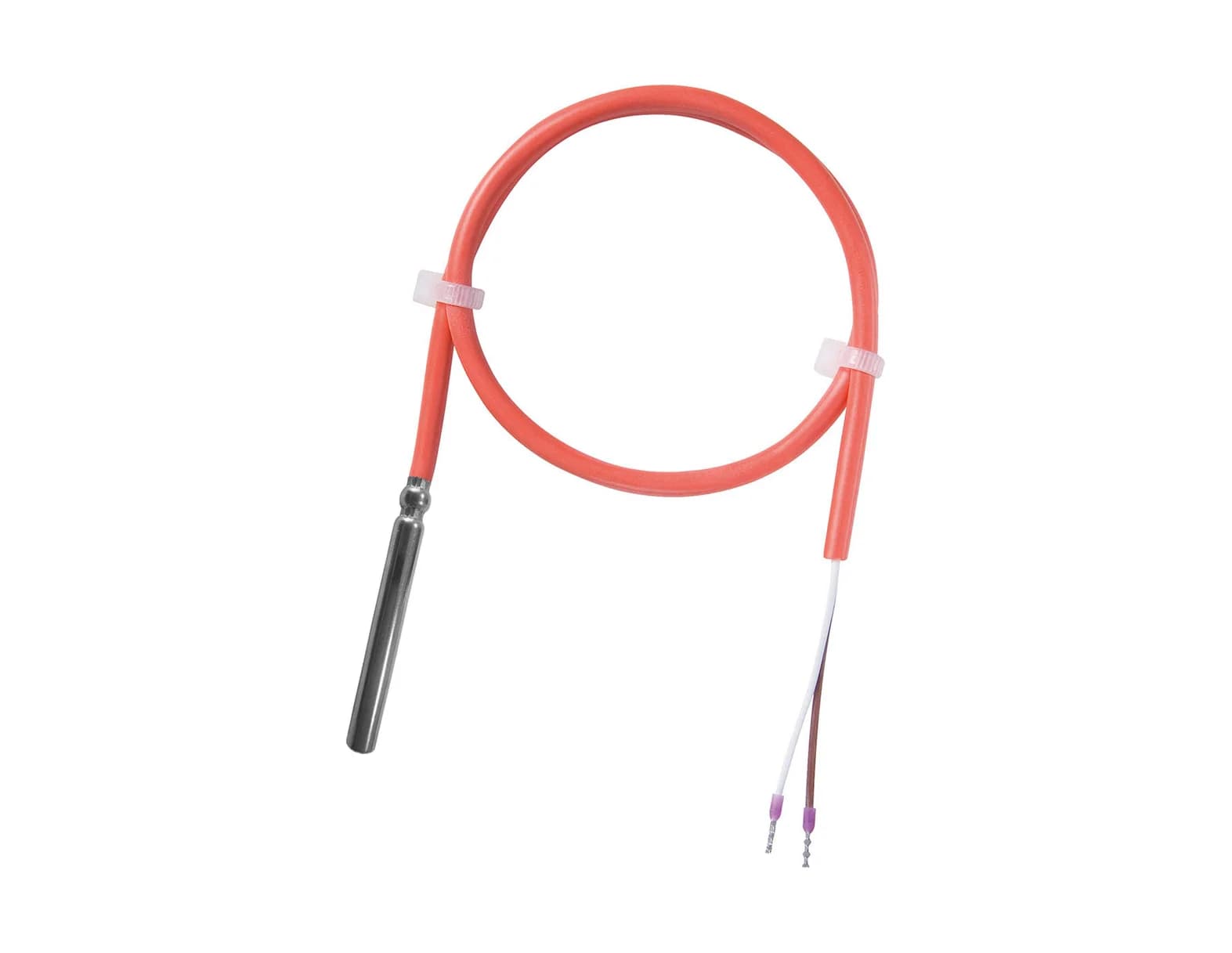

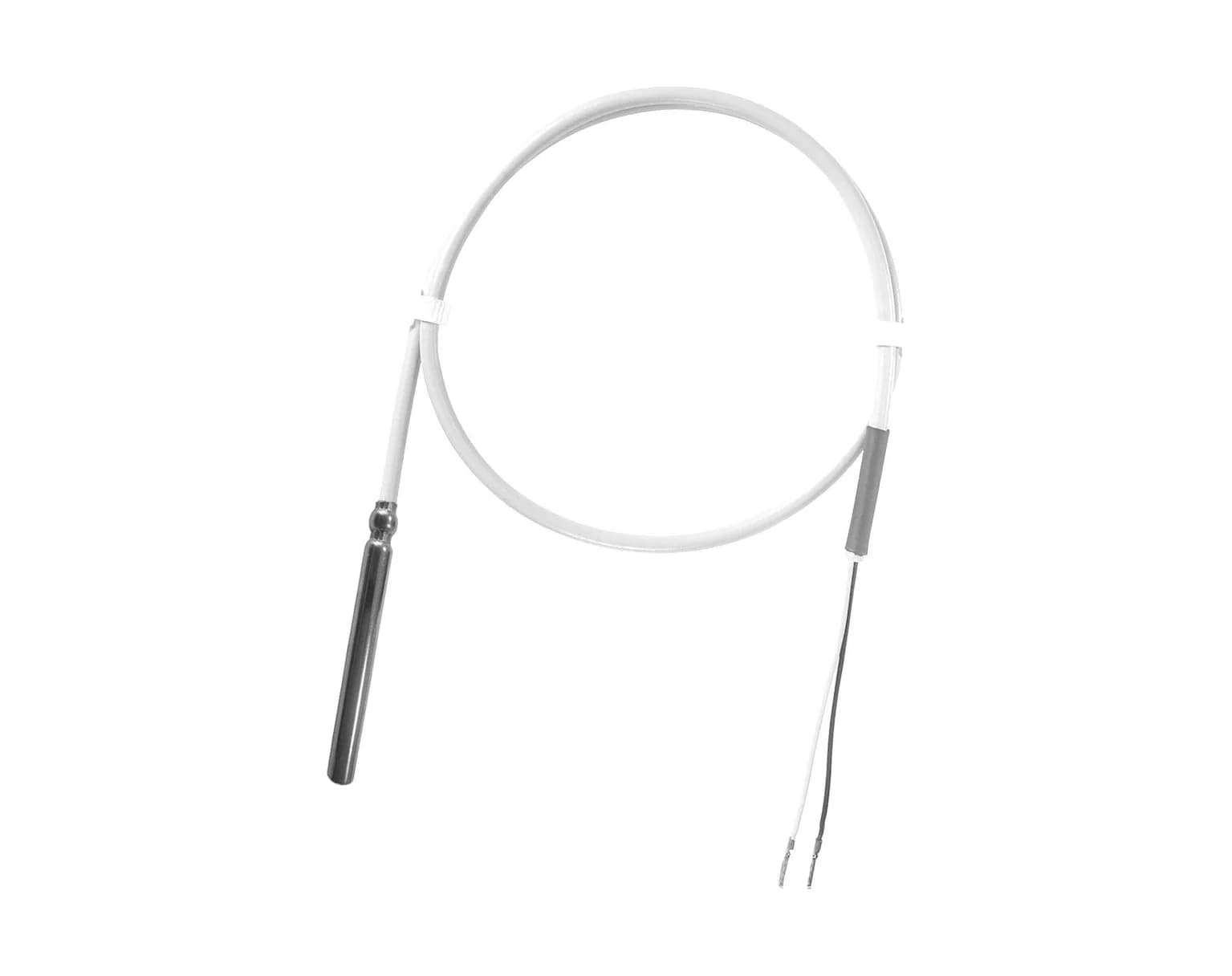

The TF14 is a cable temperature sensor for HVAC applications. The 4 mm diameter stainless steel probe is small enough for fast response measurement, and the cable is available in PVC, silicone or PTFE for different temperature and environmental needs. The passive version has no electronics. It gives a resistance output from a Pt100, Pt1000 (class B or 1/3 DIN), Ni1000, Ni1000 TK5000 or NTC10k element, depending on the part. Parts here are offered with 50, 100 or 150 mm probes and temperature ratings of up to 100, 150, 180 or 250 °C. The cable terminates in a USE-S enclosure with a quick release cover, a removable M20 cable entry and plug-in terminals.
