Thermokon · Cable sensor
TF14+ active

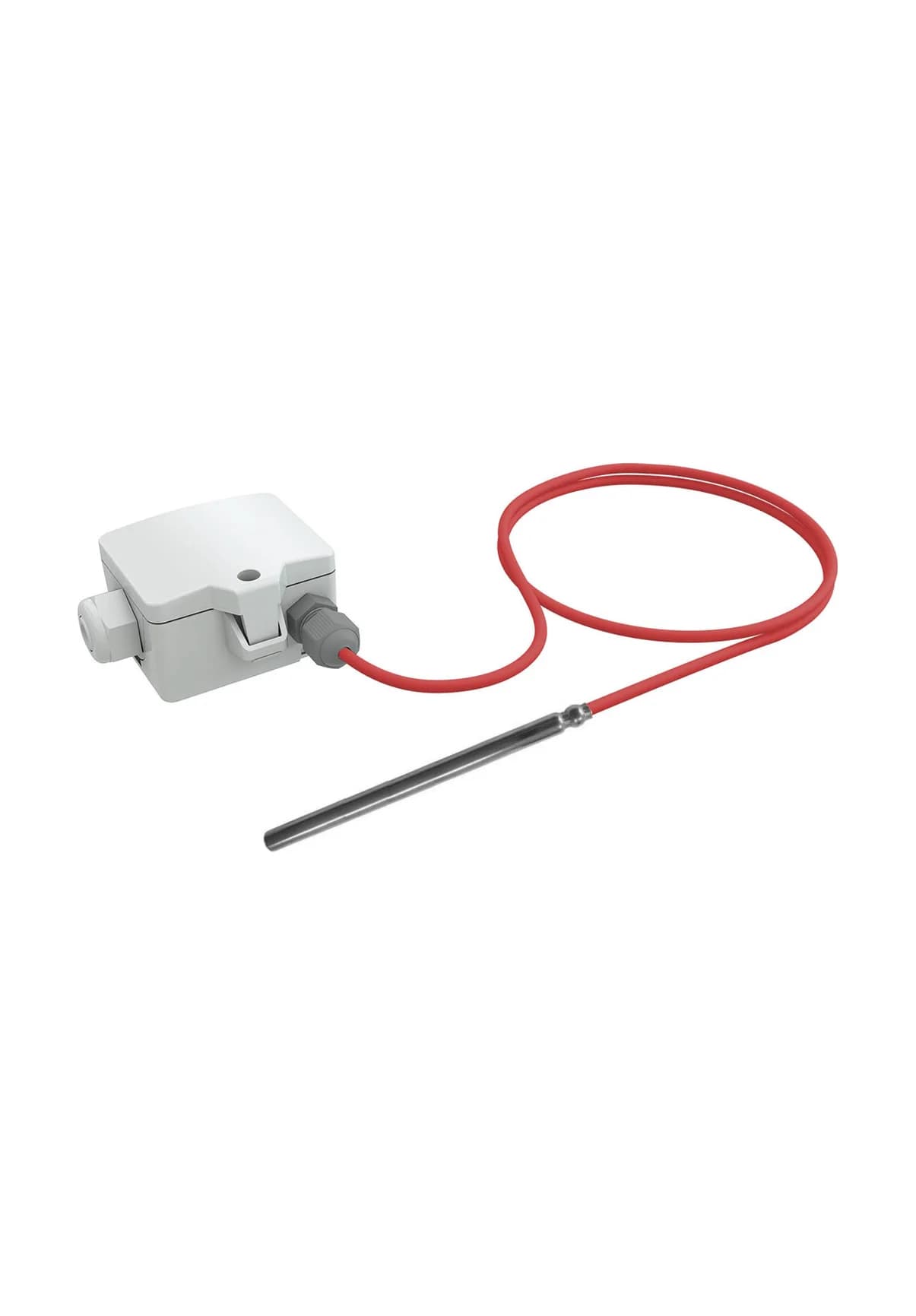

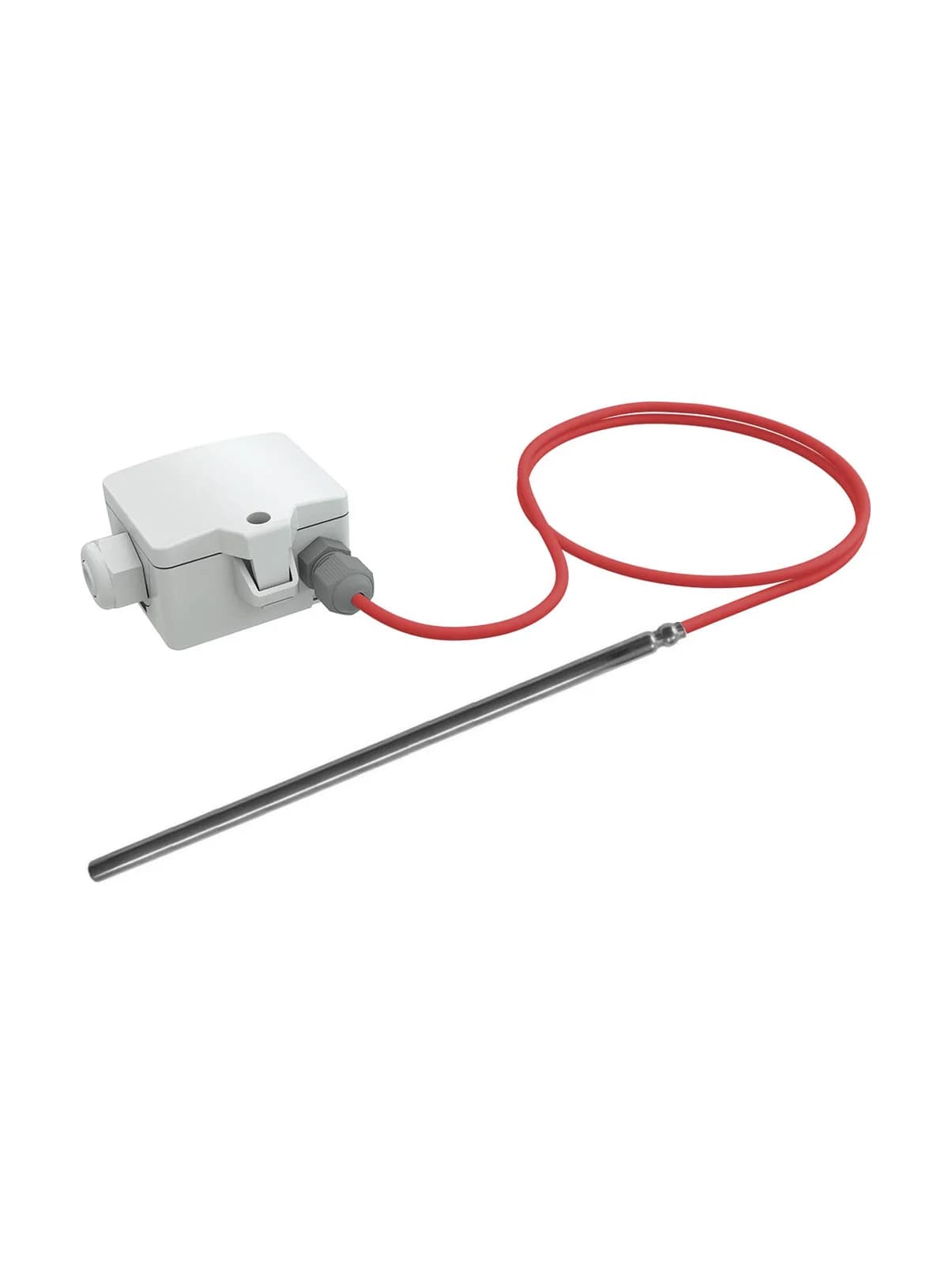

Active cable temperature sensor with a 4 mm stainless probe, a selectable measuring range and a voltage or current output.
Sign in for trade prices
Availability and lead time confirmed on your quote
Part number658850
Datasheet, PDF
- Quotes answered within 24 hours, no account needed
- DHL, under 15 kg £13.50 ex VAT
- Technical support from the people who commission it
Specification
Communication
- Connection
- Removable plug-in terminal up to 2.5 mm2, removable M20 cable entry
Electrical
- Power supply
- 15 to 24 V DC (±10%) or 24 V AC (±10%), SELV
- Power consumption
- Typically 0.4 W at 24 V DC (max. 0.5 W), 0.8 VA at 24 V AC
Environment
- Operating temperature
- Probe -50 to +180 or -50 to +250 °C, by cable; humidity up to 85% rH with short term condensation
- Protection
- IP65 (pressed probe) or IP67 (rolled probe) IP rating
Performance
- Output signal
- 0 to 10 V or 0 to 5 V (minimum load 5 kΩ), or 4 to 20 mA (maximum load 500 Ω)
- Measuring range
- 0 to +160 °C by default, selectable from -50 to +50, -20 to +80, -15 to +35, -10 to +120, 0 to +50, 0 to +100, 0 to +160 or 0 to +250 °C
- Accuracy
- ±0.5 K typical at 21 °C within the default range
- Probe length
- 50, 100 or 150 mm, diameter 4 mm, stainless steel V4A (1.4571)
Physical
- Cable length
- 1 m on these parts, 2 wire, silicone or PTFE
- Housing material
- PC, USE-S enclosure
- Colour
- Pure white
Part numbers
From the manufacturer's datasheet for TF14+ active.
Overview
The TF14+ is the active version of the TF14 cable temperature sensor. A transmitter in the USE-S enclosure converts the probe reading to a 0 to 10 V, 0 to 5 V or 4 to 20 mA signal. The measuring range is selectable at the transmitter from eight ranges between -50 and +250 °C, with 0 to +160 °C as the default. The output can be switched between 0 to 10 V and 0 to 5 V by jumper on the voltage version. A hinged cover, tool-free terminals and a removable cable entry speed up installation. The parts here use a multi range transmitter with a 180 °C rated cable and a 4 mm probe in 50, 100 or 150 mm lengths.
