Thermokon · Cable sensor
TF25 passive

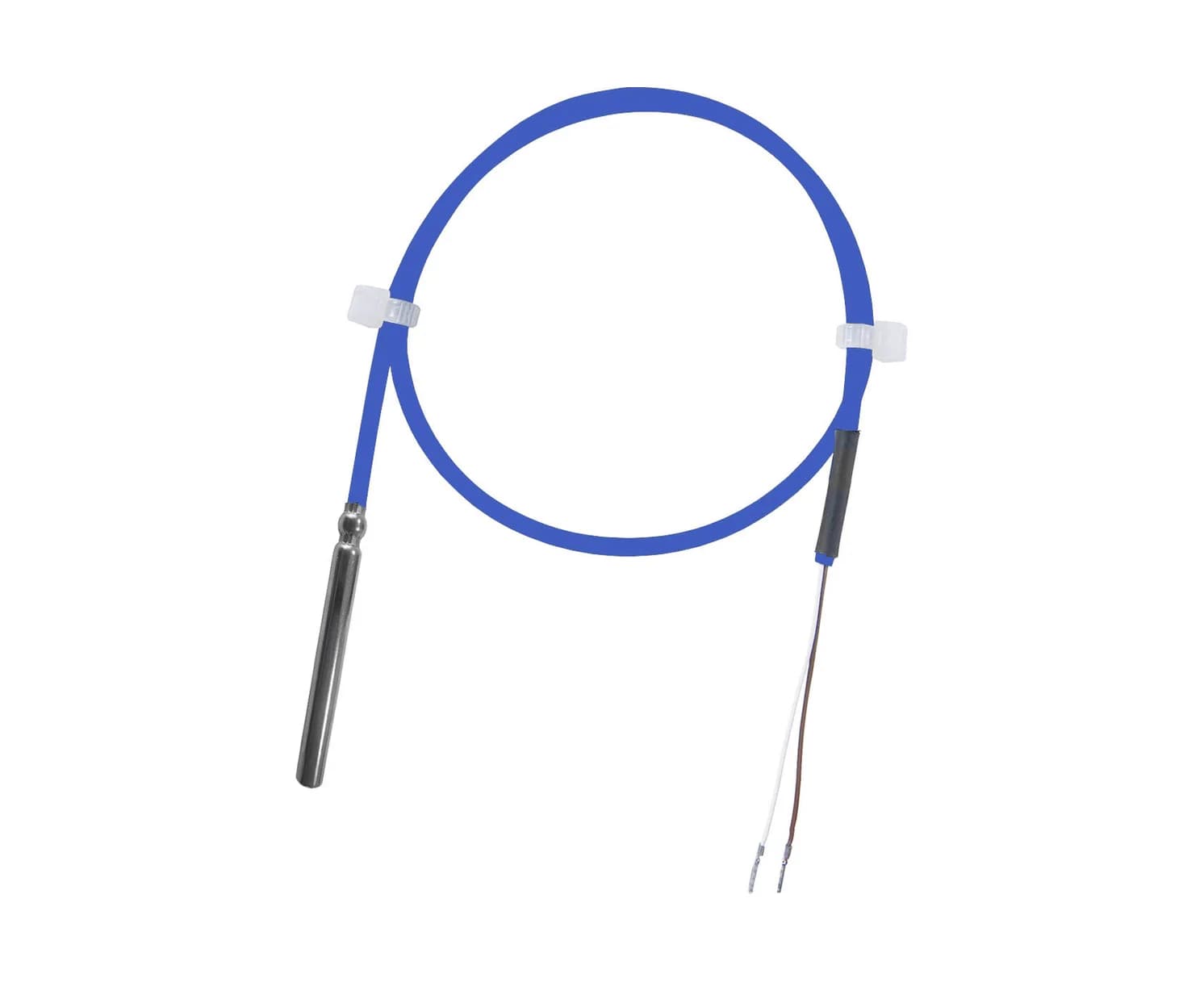

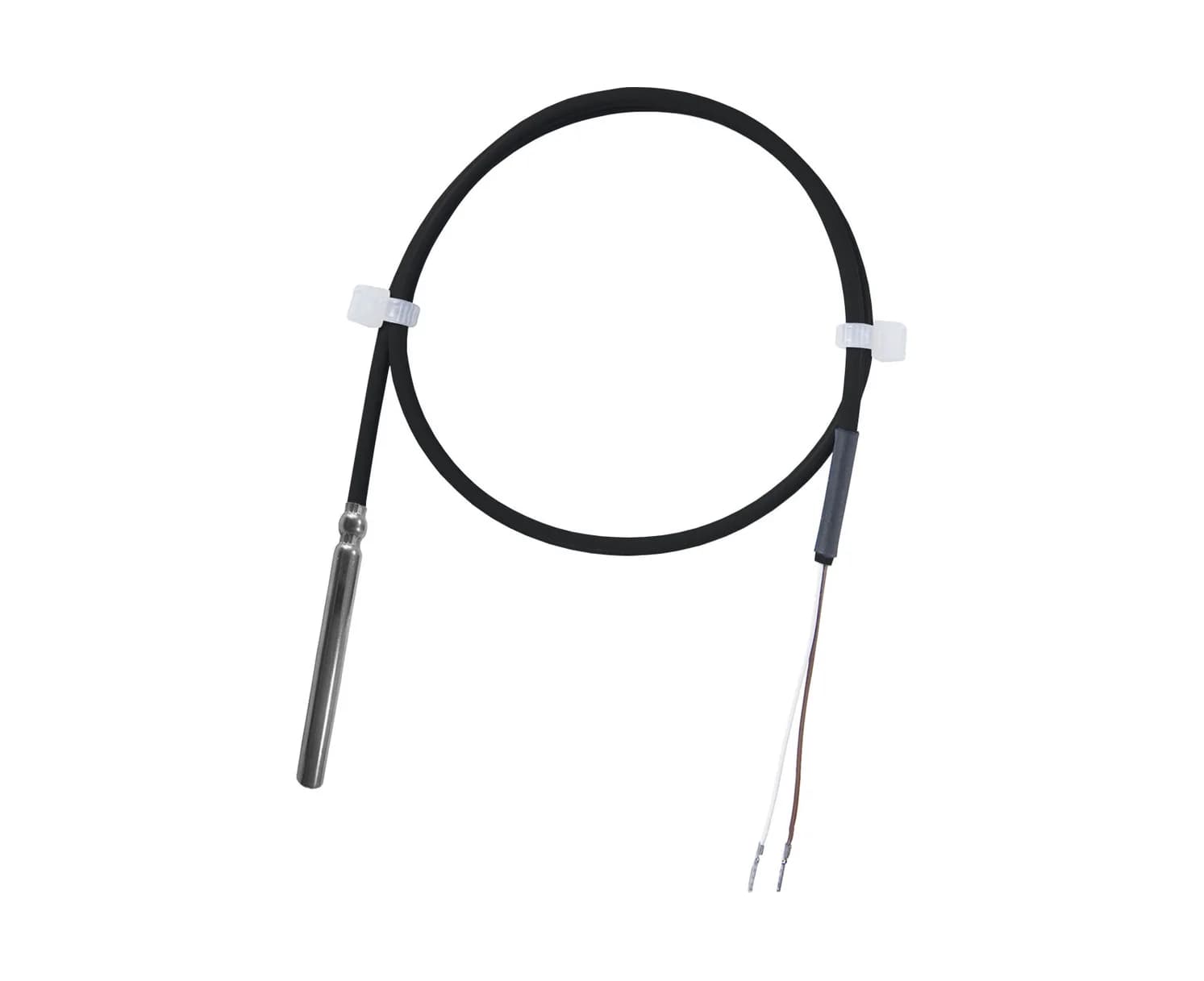

Cable temperature sensor with a 6 mm stainless steel probe on a connecting cable, for HVAC and refrigeration, with a choice of passive sensor elements and cable ratings.
Sign in for trade prices
Availability and lead time confirmed on your quote
Part number35484
Datasheet, PDF
- Quotes answered within 24 hours, no account needed
- DHL, under 15 kg £13.50 ex VAT
- Technical support from the people who commission it
Specification
Communication
- Interface
- Passive
- Connection
- Plug-in terminal, max. 2.5 mm², removable M20 cable entry for 4.5 to 9 mm cable
Environment
- Operating temperature
- Up to +100, +150, +180, +250 or +400 °C, by version
- Protection
- IP65 housing, IP65 or IP67 probe, by version IP rating
Performance
- Sensor element
- Pt100, Pt1000, Pt1000 1/3 DIN, Ni1000, Ni1000TK5000 or NTC10k, by version
- Accuracy
- ±0.1 to ±0.4 K, depending on sensor element (see characteristic curve)
- Probe length
- 50, 100 or 150 mm, 6 mm diameter, stainless steel 1.4571
Physical
- Cable length
- 1 m (2 m on the 400 °C versions)
- Housing material
- PC, USE-S
- Colour
- Pure white
Part numbers
- 35019Pt100, up to 100 °C, 50 mm probe, 1 m cable
- 35484Pt1000, up to 100 °C, 50 mm probe, 1 m cable
- 35729Pt1000 1/3 DIN, up to 100 °C, 50 mm probe, 1 m cable
- 41539NTC10k, up to 100 °C, 50 mm probe, 1 m cable
- 26116Ni1000, up to 100 °C, 50 mm probe, 1 m cable
- 26352Ni1000TK5000, up to 100 °C, 50 mm probe, 1 m cable
- 52771Pt100, up to 180 °C, 50 mm probe, 1 m cable
- 58247Pt1000, up to 180 °C, 50 mm probe, 1 m cable
- 58483Pt1000 1/3 DIN, up to 180 °C, 50 mm probe, 1 m cable
- 59466NTC10k, up to 150 °C, 50 mm probe, 1 m cable
- 58728Ni1000, up to 180 °C, 50 mm probe, 1 m cable
- 58964Ni1000TK5000, up to 180 °C, 50 mm probe, 1 m cable
- 167406Pt100, up to 250 °C, 50 mm probe, 1 m cable
- 168717Pt1000, up to 250 °C, 50 mm probe, 1 m cable
- 356749Pt1000 1/3 DIN, up to 250 °C, 50 mm probe, 1 m cable
- 151863Ni1000, up to 250 °C, 50 mm probe, 1 m cable
- 150781Ni1000TK5000, up to 250 °C, 50 mm probe, 1 m cable
- 799645Pt100, up to 400 °C, 50 mm probe, 2 m cable
- 166201Pt1000, up to 400 °C, 50 mm probe, 2 m cable
- 35026Pt100, up to 100 °C, 100 mm probe, 1 m cable
- 35033Pt100, up to 100 °C, 150 mm probe, 1 m cable
- 35491Pt1000, up to 100 °C, 100 mm probe, 1 m cable
- 35507Pt1000, up to 100 °C, 150 mm probe, 1 m cable
- 35736Pt1000 1/3 DIN, up to 100 °C, 100 mm probe, 1 m cable
- 35743Pt1000 1/3 DIN, up to 100 °C, 150 mm probe, 1 m cable
- 26154Ni1000, up to 100 °C, 100 mm probe, 1 m cable
- 26192Ni1000, up to 100 °C, 150 mm probe, 1 m cable
- 26390Ni1000TK5000, up to 100 °C, 100 mm probe, 1 m cable
- 388238Ni1000TK5000, up to 100 °C, 150 mm probe, 1 m cable
- 41812NTC10k, up to 100 °C, 100 mm probe, 1 m cable
- 40723NTC10k, up to 100 °C, 150 mm probe, 1 m cable
- 52788Pt100, up to 180 °C, 100 mm probe, 1 m cable
- 52795Pt100, up to 180 °C, 150 mm probe, 1 m cable
- 58254Pt1000, up to 180 °C, 100 mm probe, 1 m cable
- 58261Pt1000, up to 180 °C, 150 mm probe, 1 m cable
- 58490Pt1000 1/3 DIN, up to 180 °C, 100 mm probe, 1 m cable
- 58506Pt1000 1/3 DIN, up to 180 °C, 150 mm probe, 1 m cable
- 58735Ni1000, up to 180 °C, 100 mm probe, 1 m cable
- 58742Ni1000, up to 180 °C, 150 mm probe, 1 m cable
- 58971Ni1000TK5000, up to 180 °C, 100 mm probe, 1 m cable
- 58988Ni1000TK5000, up to 180 °C, 150 mm probe, 1 m cable
- 59473NTC10k, up to 150 °C, 100 mm probe, 1 m cable
- 59480NTC10k, up to 150 °C, 150 mm probe, 1 m cable
- 209731Pt100, up to 250 °C, 100 mm probe, 1 m cable
- 205658Pt100, up to 250 °C, 150 mm probe, 1 m cable
- 209724Pt1000, up to 250 °C, 100 mm probe, 1 m cable
- 388283Pt1000, up to 250 °C, 150 mm probe, 1 m cable
- 356756Pt1000 1/3 DIN, up to 250 °C, 100 mm probe, 1 m cable
- 388290Pt1000 1/3 DIN, up to 250 °C, 150 mm probe, 1 m cable
- 182430Ni1000, up to 250 °C, 100 mm probe, 1 m cable
- 388306Ni1000, up to 250 °C, 150 mm probe, 1 m cable
- 157018Ni1000TK5000, up to 250 °C, 100 mm probe, 1 m cable
- 388313Ni1000TK5000, up to 250 °C, 150 mm probe, 1 m cable
From the manufacturer's datasheet for TF25 passive.
Overview

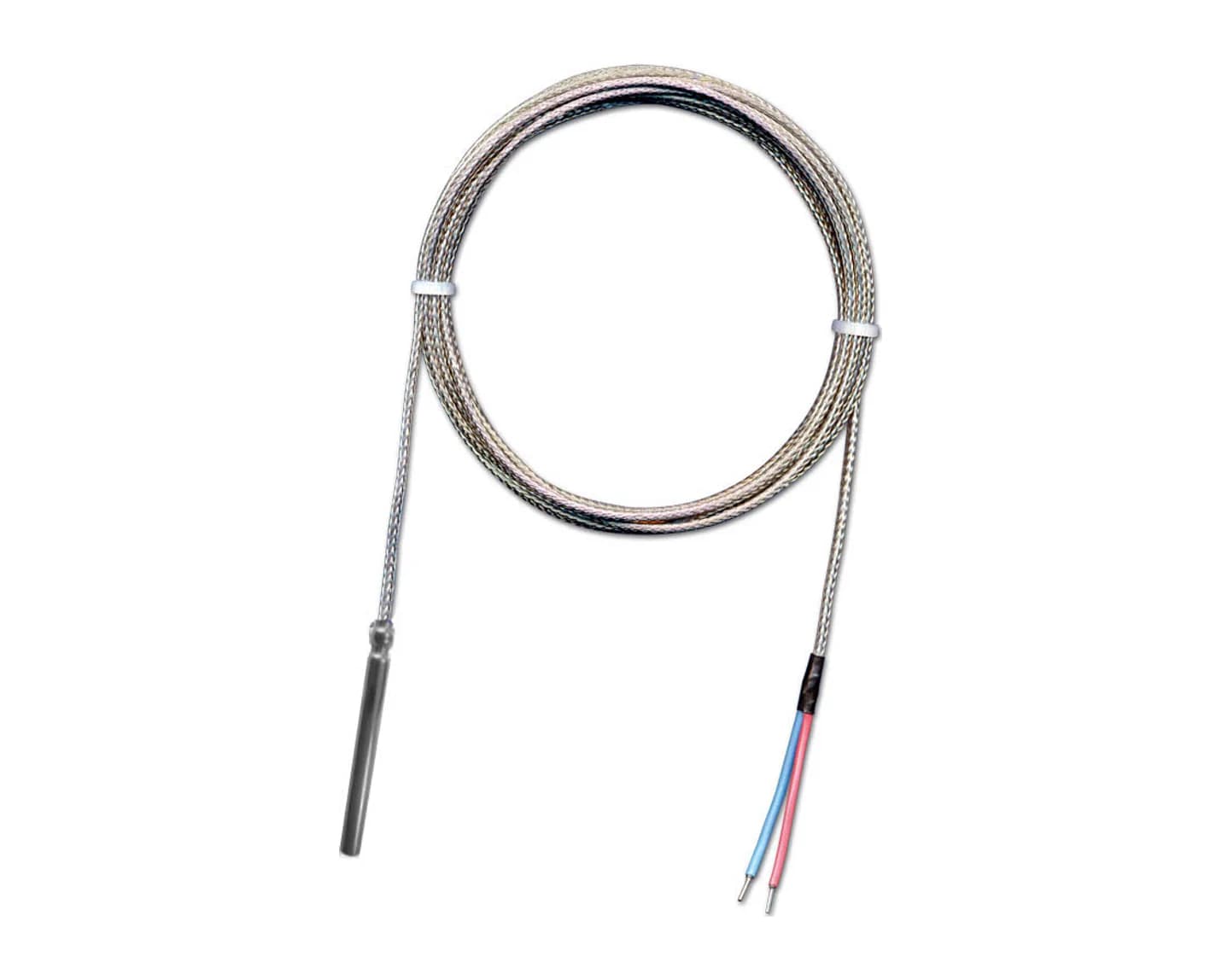

The TF25 passive is a cable sensor for temperature measurement in HVAC and refrigeration applications. With a thermowell it can also measure liquids. The stainless steel probe is 6 mm in diameter and is fitted to a connecting cable that runs to a USE-S terminal housing. Choose the sensor element (Pt100, Pt1000, Pt1000 1/3 DIN, Ni1000, Ni1000TK5000 or NTC10k), the temperature rating of the cable from 100 °C to 400 °C, and the probe length of 50, 100 or 150 mm. The cable is PVC, silicone, high temperature silicone or fibreglass, depending on the version. Most versions have a 1 m cable and the 400 °C versions have 2 m.
