Thermokon · Cable sensor
TF25+ active

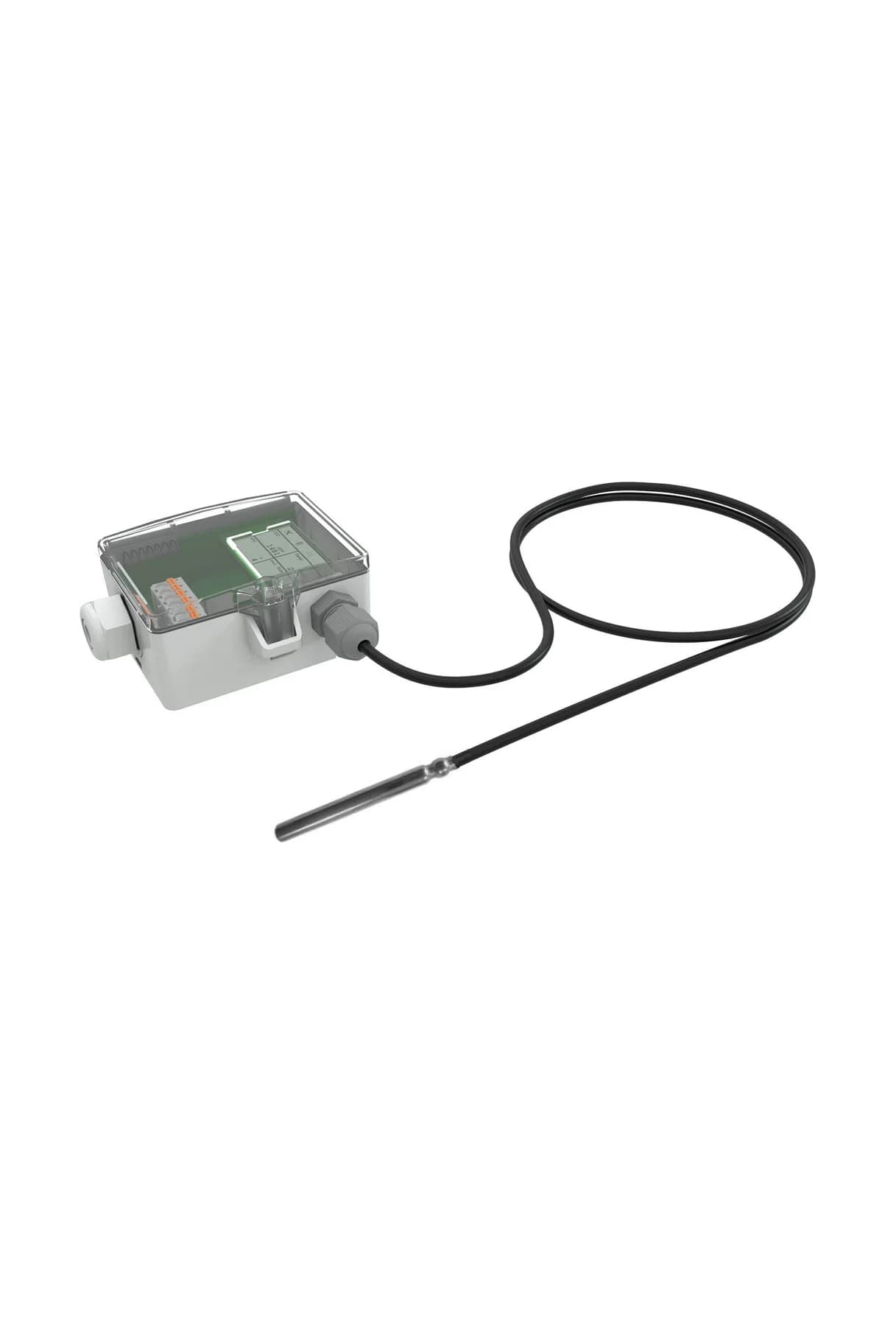

Cable temperature sensor with a 6 mm stainless steel probe and a 0 to 10 V or 4 to 20 mA output, for HVAC and refrigeration.
Sign in for trade prices
Availability and lead time confirmed on your quote
Part number658966
Datasheet, PDF
- Quotes answered within 24 hours, no account needed
- DHL, under 15 kg £13.50 ex VAT
- Technical support from the people who commission it
Specification
Communication
- Connection
- Plug-in terminal up to 2.5 mm², cable entry M20
Electrical
- Power supply
- 15 to 35 V DC or 19 to 29 V AC, by type
- Power consumption
- Max. 2.5 W (24 V DC), 4.3 VA (24 V AC) for LCD types
Environment
- Humidity
- Max. 85% rH, short term condensation
- Protection
- IP65 or IP67 probe, enclosure IP65 IP rating
Performance
- Output signal
- 0 to 10 V (min. load 5 kΩ) or 4 to 20 mA (max. load 500 Ω), by type
- Measuring range
- -50 to +180 °C (T180), -50 to +160 °C (T160 LCD types)
- Accuracy
- +/-0.5 K (typ. at 21 °C), offset adjustable
- Sensor element
- Active transmitter, 6 mm stainless steel probe
- Probe length
- 50, 100 or 150 mm on the listed parts
Physical
- Cable length
- 1 m, silicone cable 0.25 mm²
- Housing material
- PC, USE-S or USE-M enclosure
Part numbers
From the manufacturer's datasheet for TF25+ active.
Overview
The TF25+ is a cable sensor for temperature measurement in HVAC and refrigeration. With a thermowell it can measure in liquids. It has a stainless steel probe of 6 mm diameter and a 1 m connection cable, and the transmitter sits in a USE enclosure. The listed parts give either 0 to 10 V (TRV) or 4 to 20 mA (TRA), with a probe of 50, 100 or 150 mm. T180 types work from -50 to +180 °C, and the LCD types with a T160 range from -50 to +160 °C. The LCD has a colour traffic light function. The output range is scalable through the USEapp or uConfig.
