Thermokon · Frost protection thermostat
TFR active

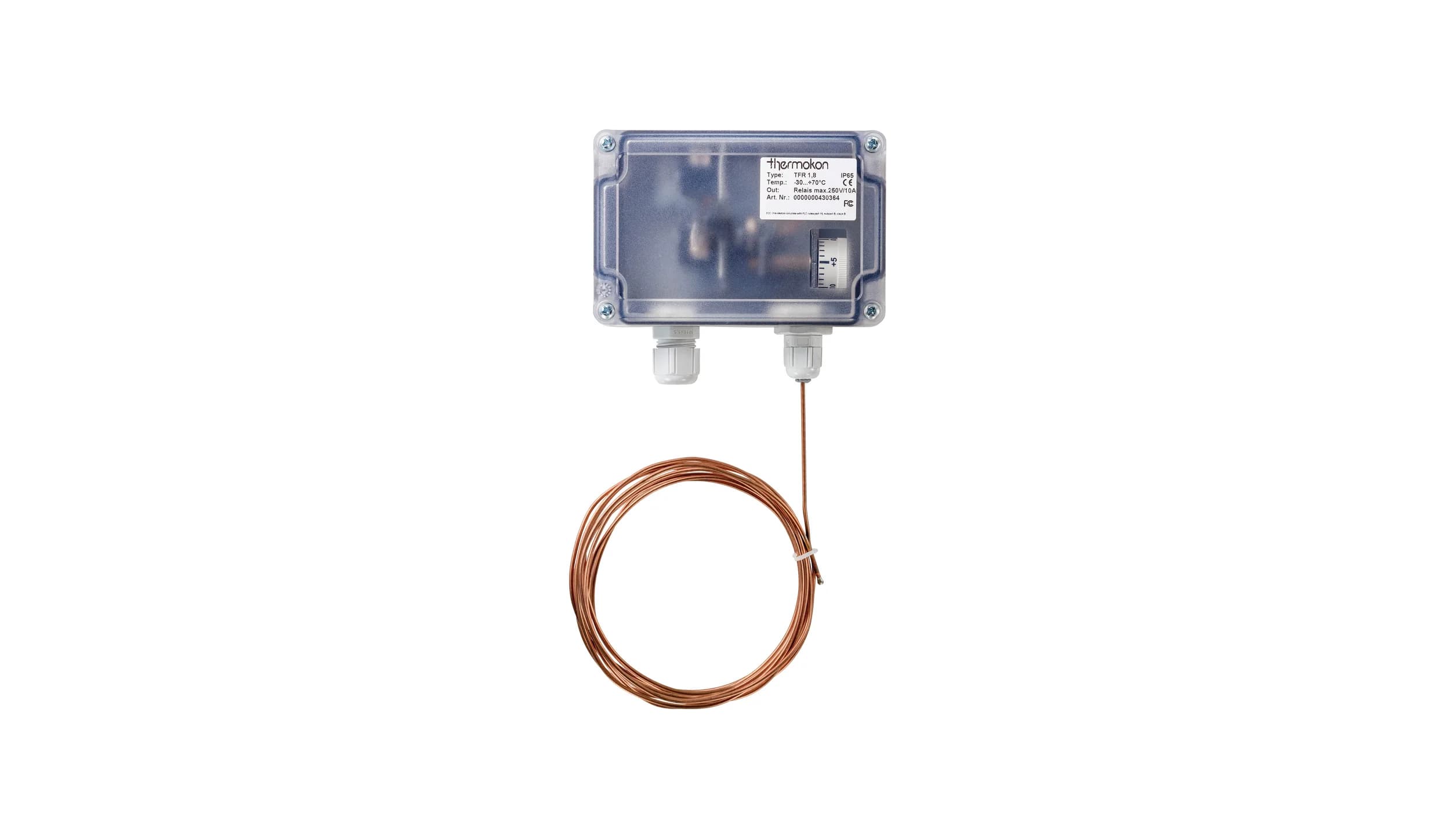

Frost protection thermostat with a capillary sensor, 1.8 to 12 m long, for monitoring the air behind a heat exchanger.
Sign in for trade prices
Availability and lead time confirmed on your quote
Part number430371
Datasheet, PDF
- Quotes answered within 24 hours, no account needed
- DHL, under 15 kg £13.50 ex VAT
- Technical support from the people who commission it
Overview
The TFR monitors the air temperature downstream of heat exchangers in ventilation and air conditioning systems. It has a small switching difference and good repeatability. Reset is automatic, or manual on the type with the -R suffix. When it trips the changeover contact can stop the fan, close the outside air dampers, open the heating valve fully or start the pump. The threshold is set by a rotary knob from -10 to +15 °C, with a default of +5 °C. The capillary comes in four lengths, and the sensing part is about 600 mm of it.
Specification13 values · 4 part numbers
Communication
- Interface
- Single pole changeover contact
- Connection
- M16 cable entry, terminal block up to 2.5 mm²
Environment
- Operating temperature
- -35 to +70 °C
- Humidity
- Max. 85% rH, short term condensation
- Protection
- IP65
Performance
- Output signal
- Changeover contact, 250 V AC, max. 10 A, switching difference 2 K +/-1 K
- Measuring range
- Setpoint -10 to +15 °C, default +5 °C
- Accuracy
- Repeatability +/-0.5 K
- Sensor element
- Copper capillary with R507 filling, about 600 mm active length
Physical
- Housing material
- PA6 GK30, with transparent ABS cover
- Colour
- Light grey
- Mounting
- Installation set included; flange MF2 usable from 3000 mm
- Dimensions
- 120 x 110 x 51 mm
From the manufacturer's datasheet for TFR active.
