Thermokon · Frost protection thermostat

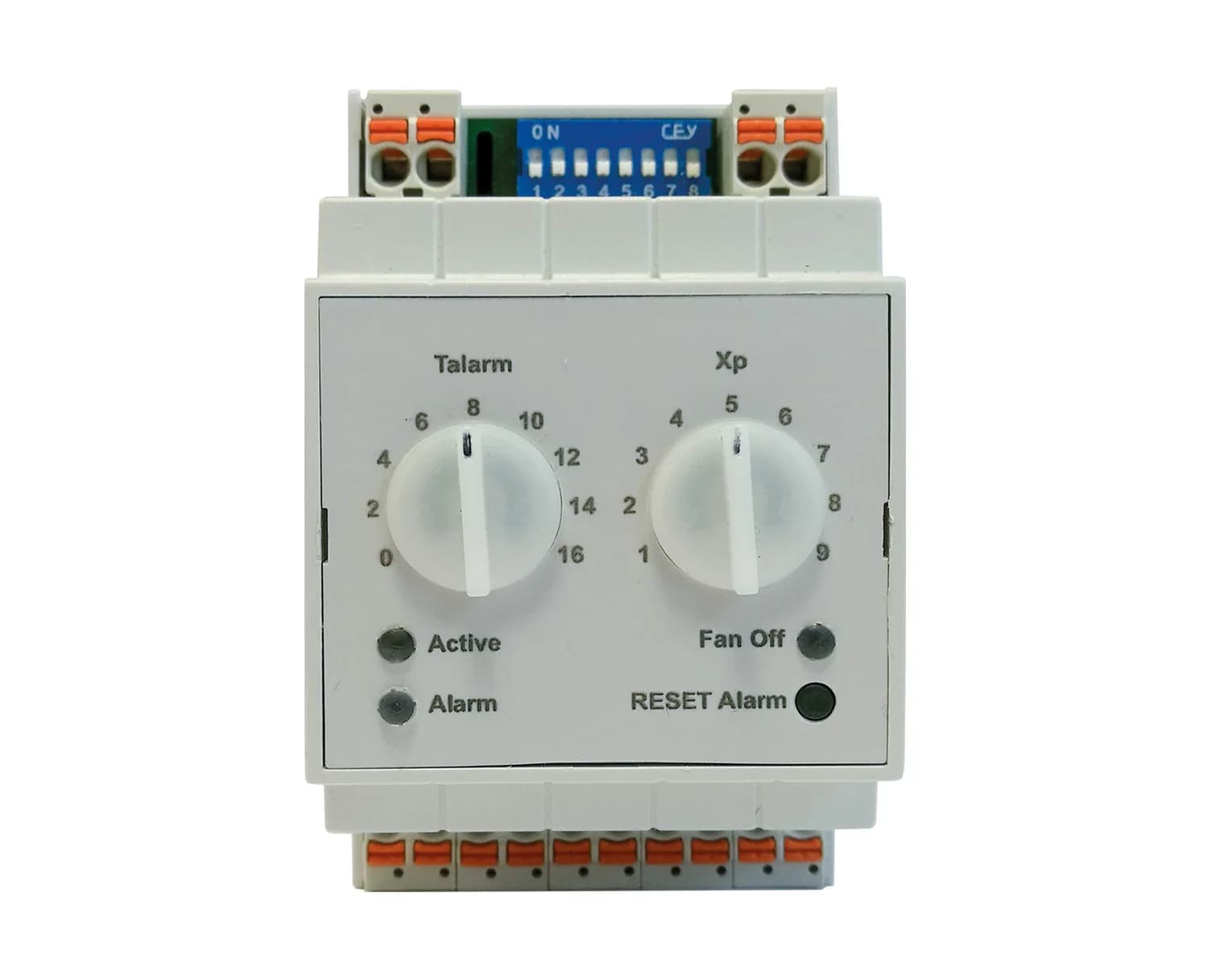

TFRe active

Name: TFRe active
Brand: Thermokon
SKU: 667203

Electronic frost protection thermostat with a P-controller for a heat exchanger valve, fan shutdown and an alarm contact.

Availability and lead time confirmed on your quote

Part number667203

Quotes answered within 24 hours, no account needed
DHL, under 15 kg £13.50 ex VAT
Technical support from the people who commission it

Specification

Communication

Connection: Plug-in terminal, max. 2.5 mm²

Electrical

Power supply: 15 to 24 V DC (+/-10%) or 24 V AC (+/-10%)
Power consumption: max. 2 VA (24 V AC)

Environment

Operating temperature: -40 to +70 °C
Humidity: max. 85% rH, non-condensing
Protection: IP20 IP rating

Performance

Inputs: Sensor Pt1000 (default), NTC10k, Ni1000 or Ni1000TK5000; external setpoint; floating contact
Outputs: 0 to 10 V measured value (0 to +100 °C), 0 to 10 V valve control (0 to 100%), max. 10 mA; NO fan contact 250 V AC, max. 6 A; NO alarm contact 30 V AC, max. 1 A
Output signal: 0 to 10 V
Measuring range: Output scaled 0 to +100 °C

Physical

Housing material: ABS
Colour: White
Mounting: DIN rail TS35 (35 x 7.5 mm) to EN 60715
Dimensions: 91 x 53 x 60 mm

From the manufacturer's datasheet for 667203.

Overview

The TFRe monitors the temperature downstream of a heat exchanger in ventilation and air-conditioning systems. An integrated P-controller drives the heat exchanger valve between 0 and 10 V, and the unit stops the fan, and if needed closes the air inlet flaps, when the set limits are passed. The temperature is measured with a contact, immersion or cable sensor, and the input accepts Pt1000 (default), NTC10k, Ni1000 or Ni1000TK5000 curves. There are two rotary knobs, one for the alarm temperature and one for the proportional band, and an alarm is raised on cable break or sensor short circuit. For a quick reading in the heat exchanger return pipe, Thermokon suggests a fast sensor such as the TF14 with KL4VA. The housing is prepared for TS35 DIN rail mounting.
