Thermokon · Room operating unit · KNX
thanos EVO KNX

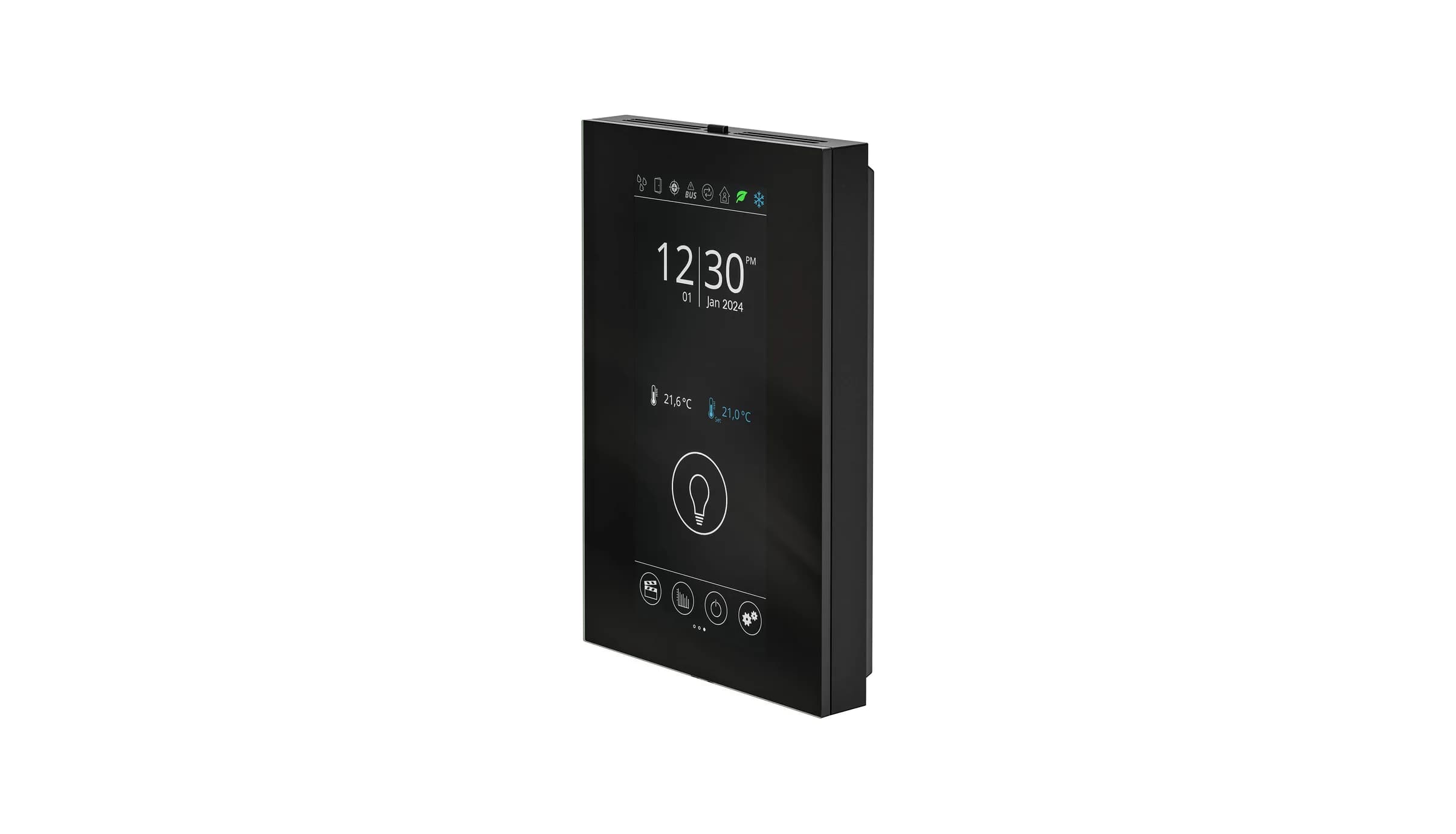

Touchscreen room operating unit for KNX TP with a 4.8 inch display and a temperature and humidity sensor, in a black design frame.
Sign in for trade prices
Availability and lead time confirmed on your quote
Part number807449
Datasheet, PDF
- Quotes answered within 24 hours, no account needed
- DHL, under 15 kg £13.50 ex VAT
- Technical support from the people who commission it
Specification
Communication
- Protocol
- KNX TP1
Electrical
- Power supply
- 24 V DC, +/-10%
- Power consumption
- Typically 3 W
Environment
- Operating temperature
- 0 to +50 °C
- Humidity
- Maximum 85% rH, non-condensing
- Protection
- IP30 IP rating
Performance
- Inputs
- 1 x NTC10k or floating contact, 2 x floating contact
- Measuring range
- Humidity 0 to 100% rH, non-condensing
- Accuracy
- Temperature +/-0.5 K at 21 °C; humidity +/-2% between 10 and 90% rH
Physical
- Housing material
- PC V0
- Colour
- Black design frame
- Mounting
- Flush, in a standard EU box of 60 mm diameter, minimum depth 45 mm
- Dimensions
- 146 x 90 x 20 mm
From the manufacturer's datasheet for 807449.
Overview
The thanos EVO is a room operating unit with a 4.8 inch capacitive touchscreen of 1120 x 480 pixels, for HVAC, lighting and blind control, scenes and an ECO function. 2D room graphics make operation easier, and it can show measured values and their history. The version here has temperature and humidity sensors. This version connects to KNX TP and is set up with ETS, the NOVOSapp or uConfig. It has an input for an NTC10k sensor or a floating contact and two inputs for floating contacts. It is supplied with a black design frame and fits a standard EU flush box, with the base part wired separately.
