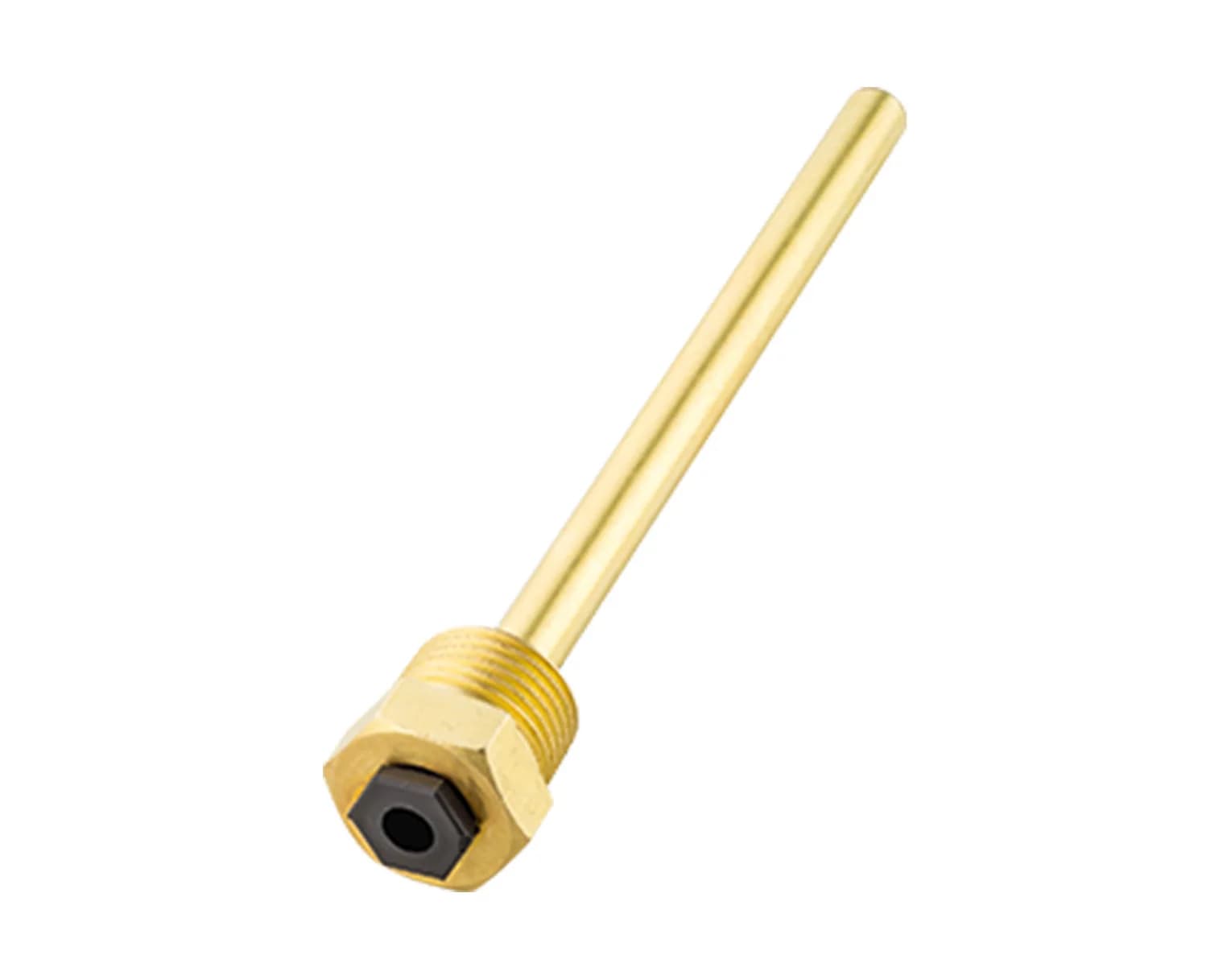

THMSDS brass thermowells

Name: THMSDS brass thermowells
Brand: Thermokon

Brass thermowells in seven lengths for fitting immersion sensors in liquid pipework, with an R1/2 inch thread.

Sign in for trade prices

Availability and lead time confirmed on your quote

Length: 100 mm

Part number611008

Quotes answered within 24 hours, no account needed
DHL, under 15 kg £13.50 ex VAT
Technical support from the people who commission it

Specification

Communication

Connection: R1/2 inch thread, SW22

Environment

Operating temperature: 0 to +130 °C

Performance

Nominal pressure: max. 16 bar
Probe length: 50, 100, 150, 200, 250, 300 or 450 mm

Physical

Housing material: Brass

Part numbers

From the manufacturer's datasheet for THMSDS brass thermowells.

Overview

Thermowells let an immersion temperature sensor be fitted to a liquid pipe or vessel without draining the system. The sensor sits in the well and can be removed for service while the pipe stays full. The THMSDS range is made from brass, with a 9 mm bore, a 22 mm spanner size and an R1/2 inch thread. It is rated to 130 °C and 16 bar and comes in seven lengths from 50 to 450 mm.

Picture coming soon

Thermokon · Mounting accessory
