Thermokon · Mounting accessory

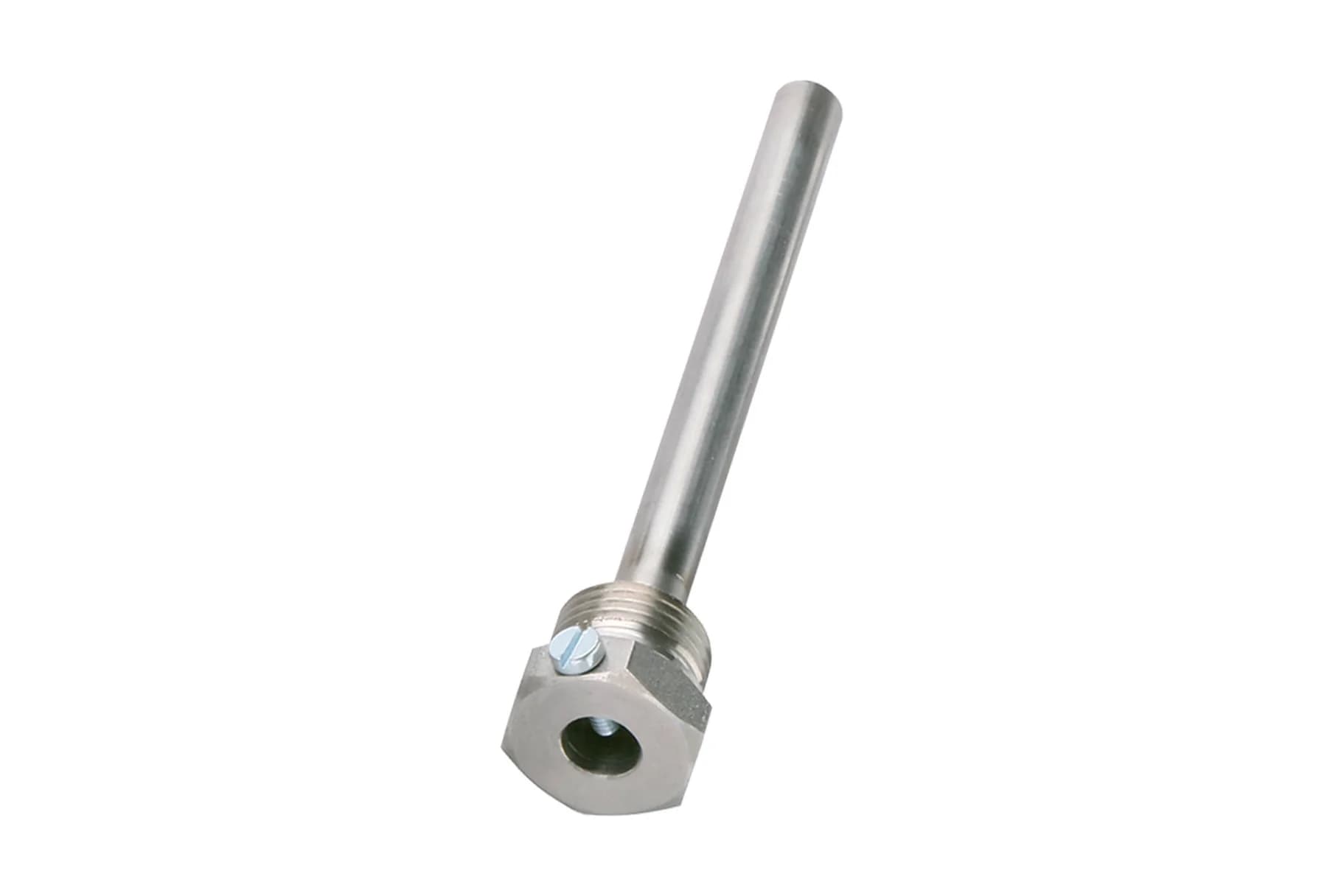

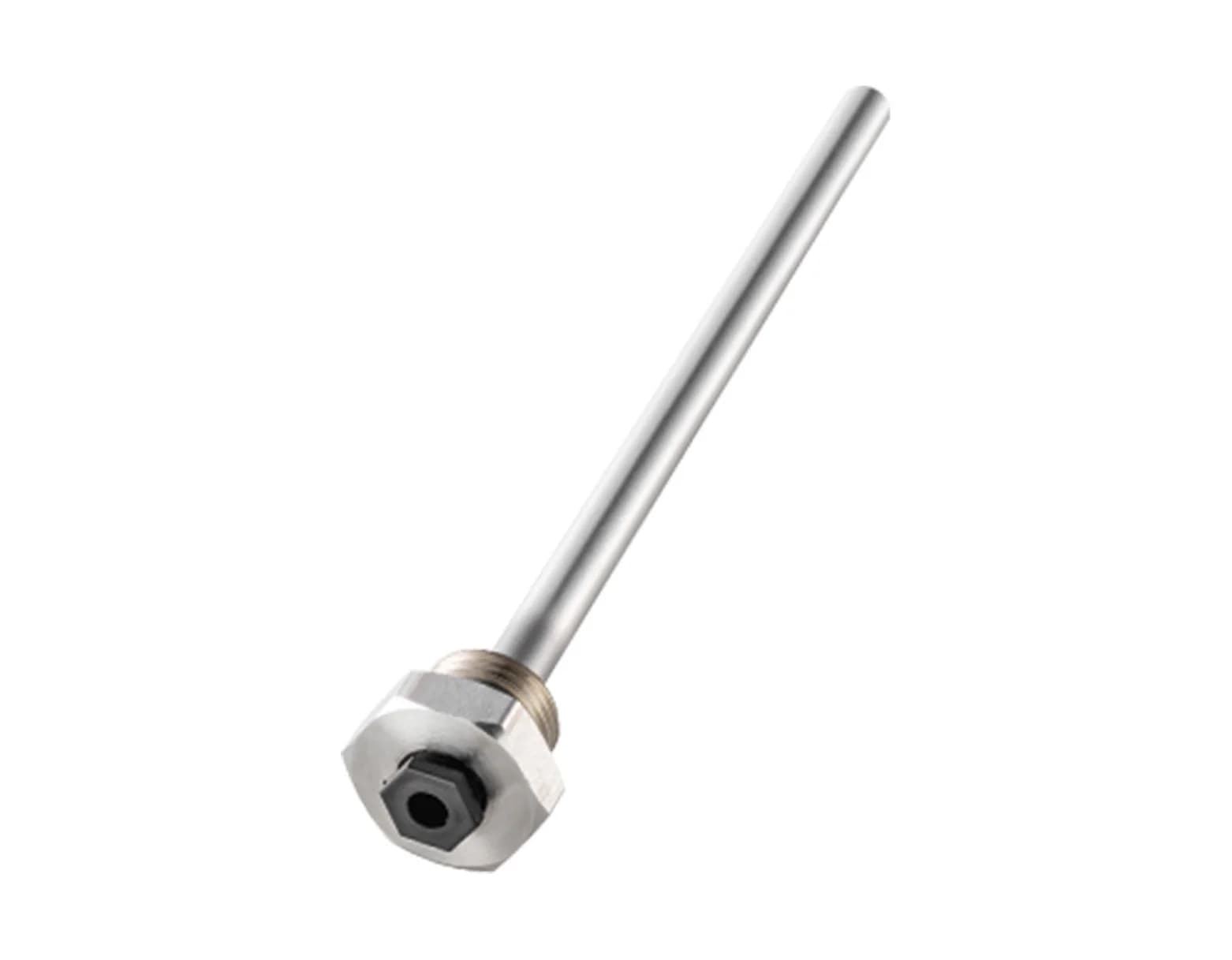

Thermowells stainless steel

Name: Thermowells stainless steel
Brand: Thermokon

Stainless steel thermowells in lengths from 50 to 450 mm for fitting immersion sensors in liquid pipework, with a PTFE pressure screw option.

Availability and lead time confirmed on your quote

Length: 100 mm

Version: Thermowell THVADS

Part number611817

Quotes answered within 24 hours, no account needed
DHL, under 15 kg £13.50 ex VAT
Technical support from the people who commission it

Specification

Communication

Connection: R1/2 inch thread, 22 mm hexagon (SW22)

Environment

Operating temperature: 0 to +200 °C

Performance

Nominal pressure: Up to 40 bar
Nominal size: Diameter 9 mm
Probe length: 50, 100, 150, 200, 250, 300 or 450 mm, by version

Physical

Housing material: Stainless steel

Part numbers

From the manufacturer's datasheet for Thermowells stainless steel.

Overview

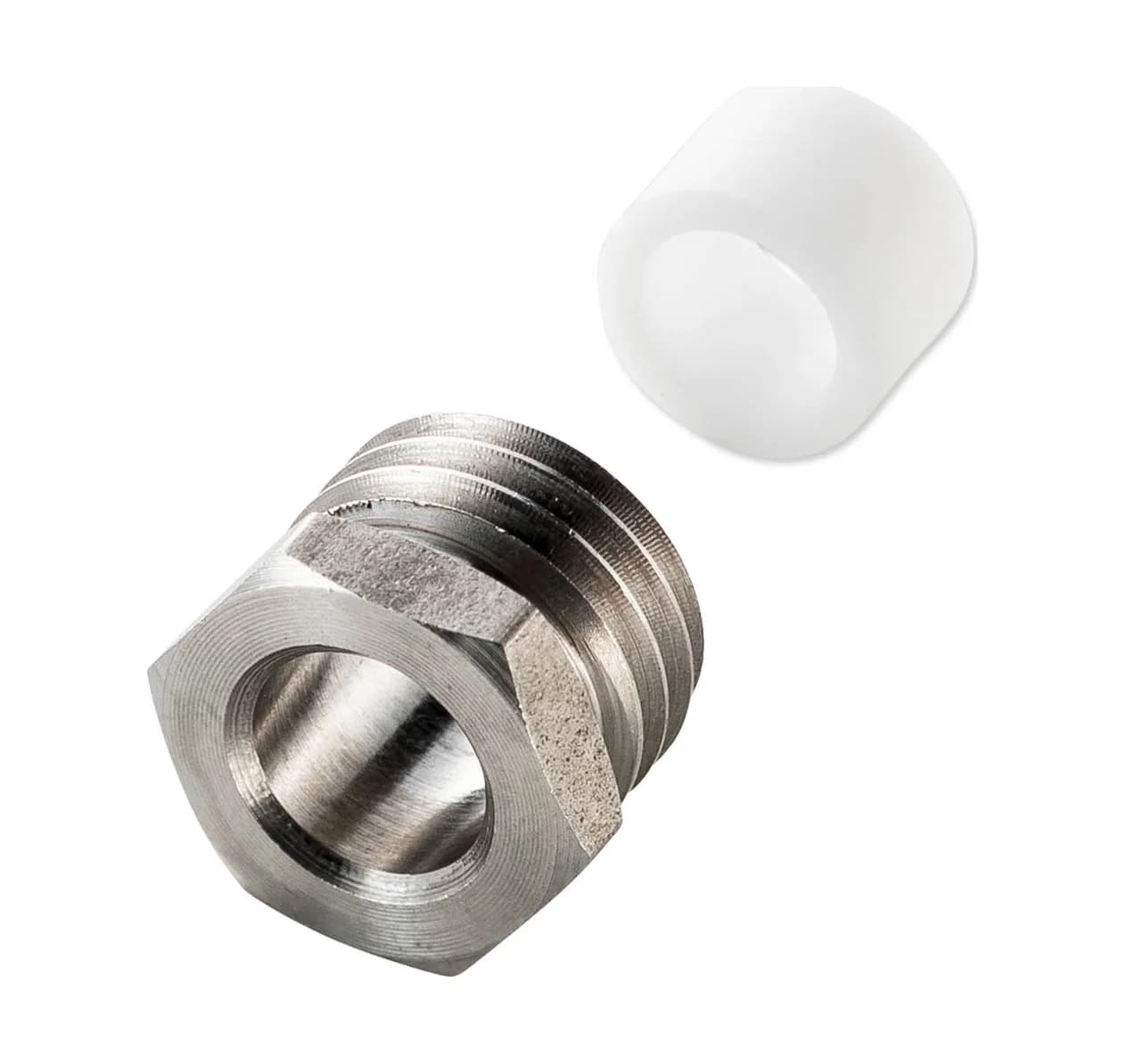

Thermowells let a temperature sensor be fitted in a liquid pipe without draining the system. The sensor sits in the pocket and can be removed for service while the pipe stays full. The THVADS thermowells come in seven installation lengths from 50 to 450 mm. A PTFE pressure screw is available for them for installations that must be free of silicone. The THVA thermowells in 100 to 250 mm are the ones specified for the KFK03 immersion sensor. The family page gives a 9 mm diameter, an R1/2 inch thread and a 22 mm hexagon.
