Vantage 10

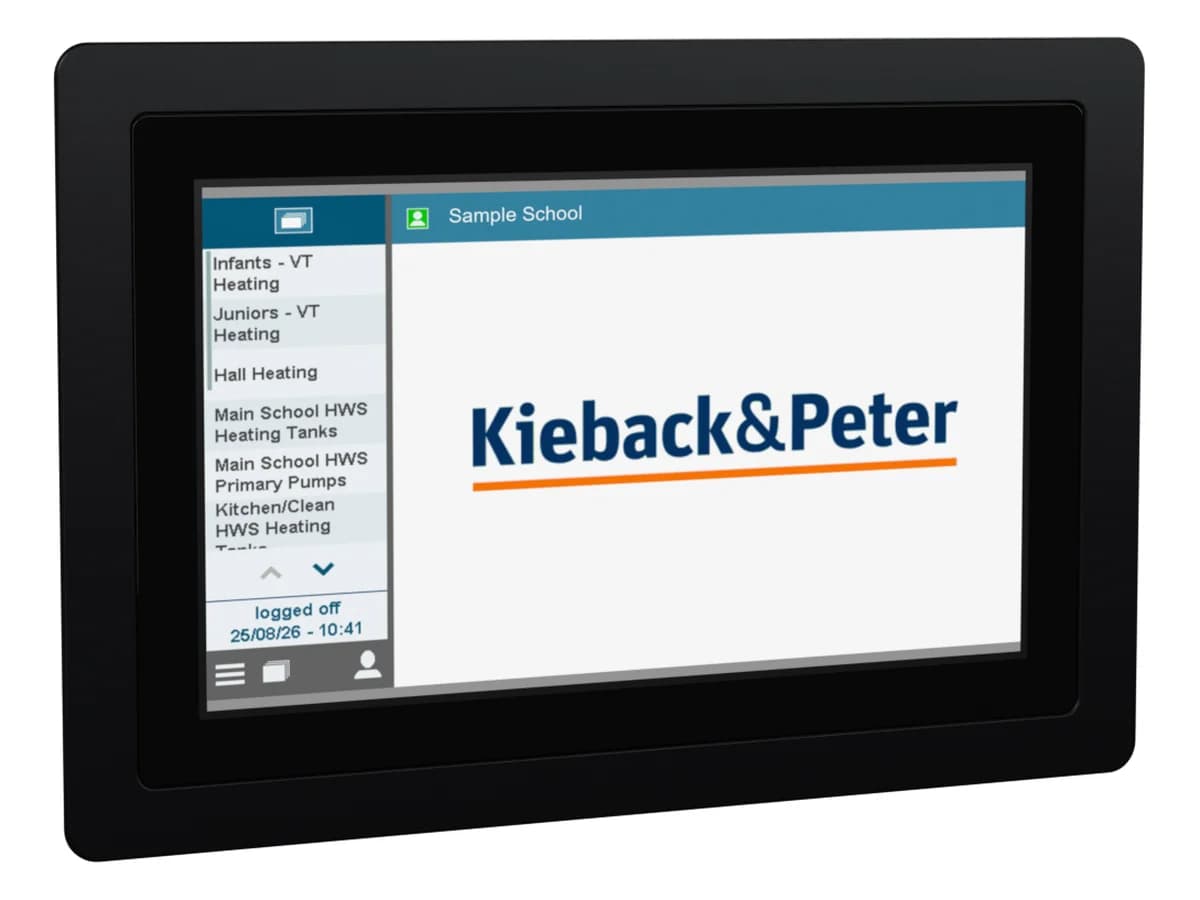

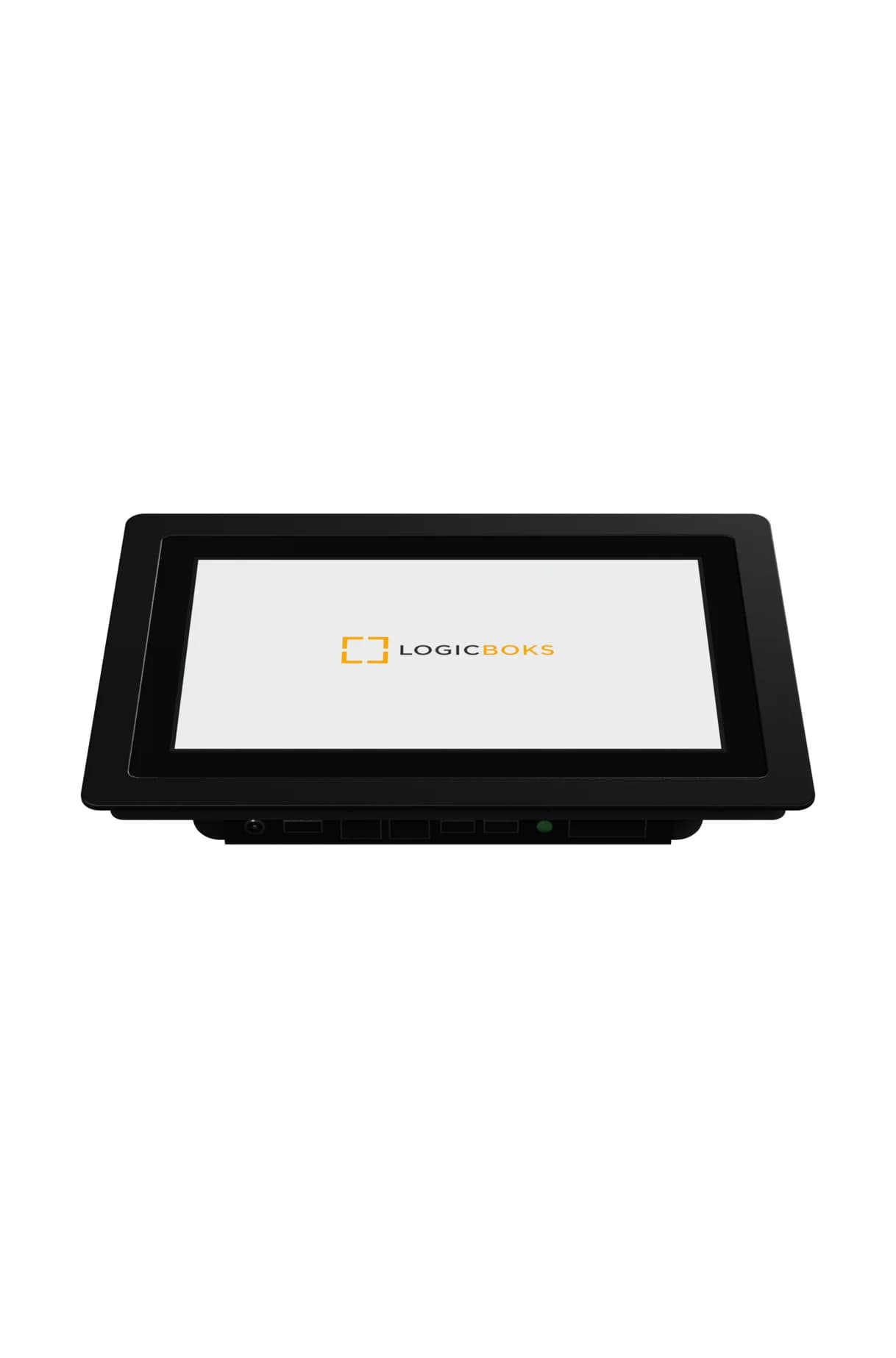

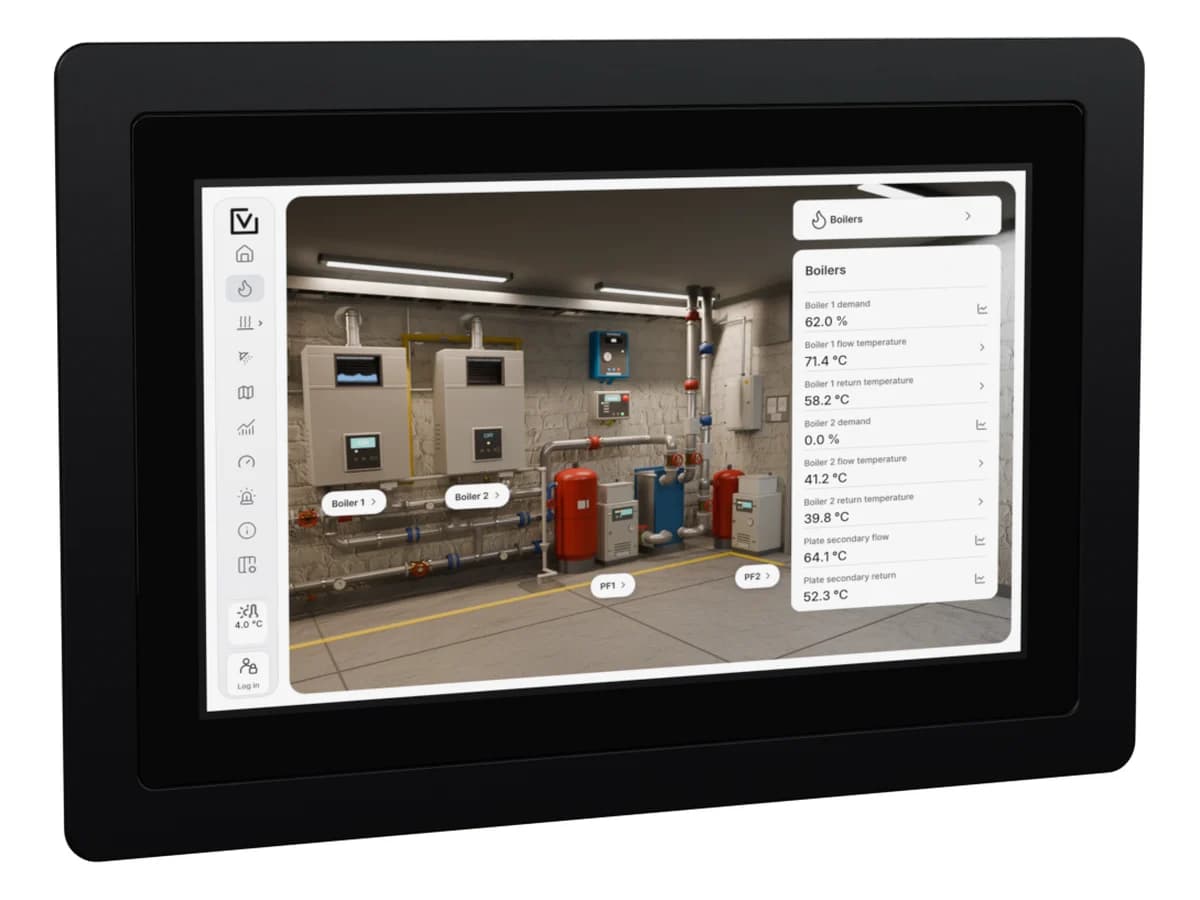

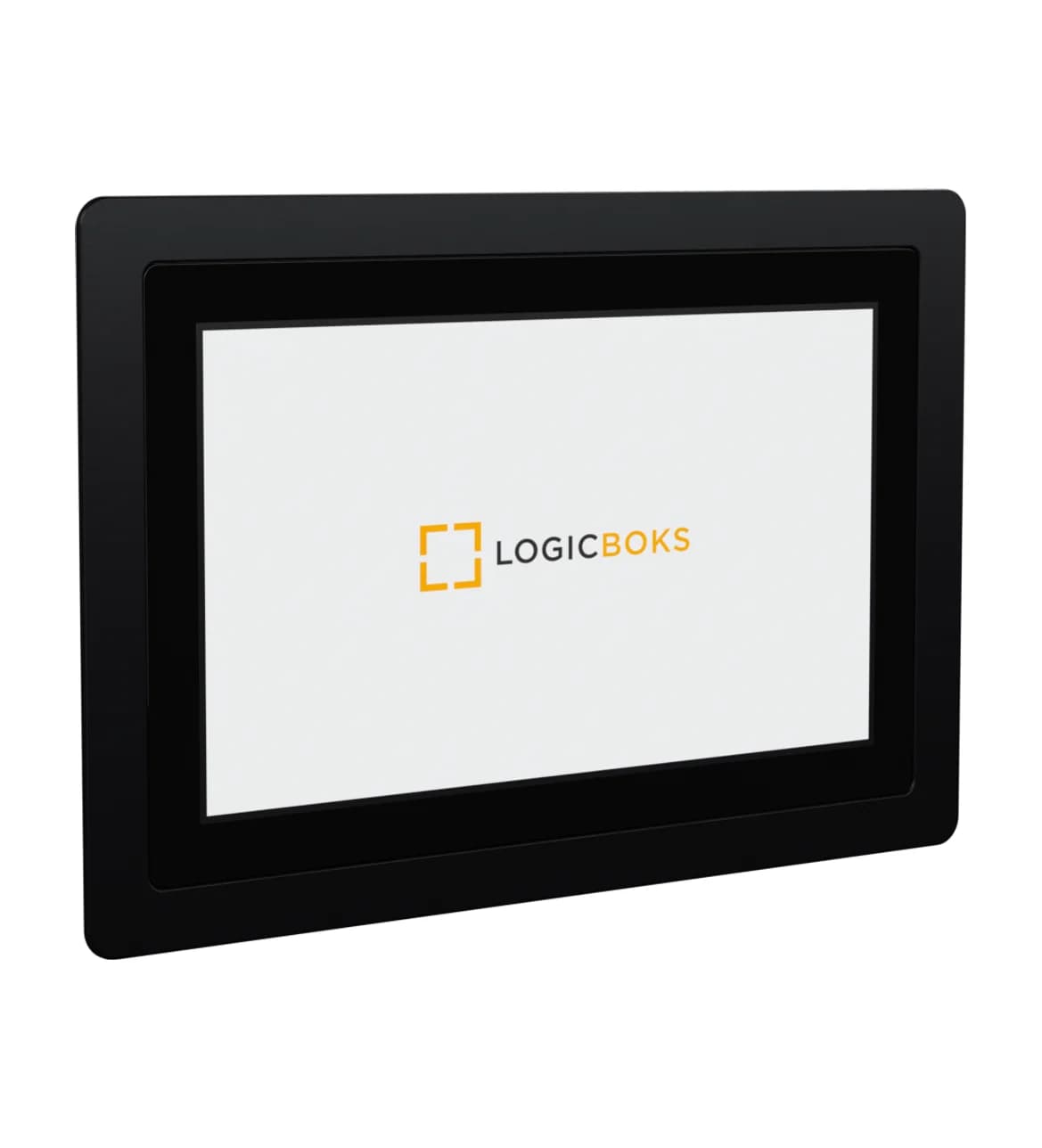

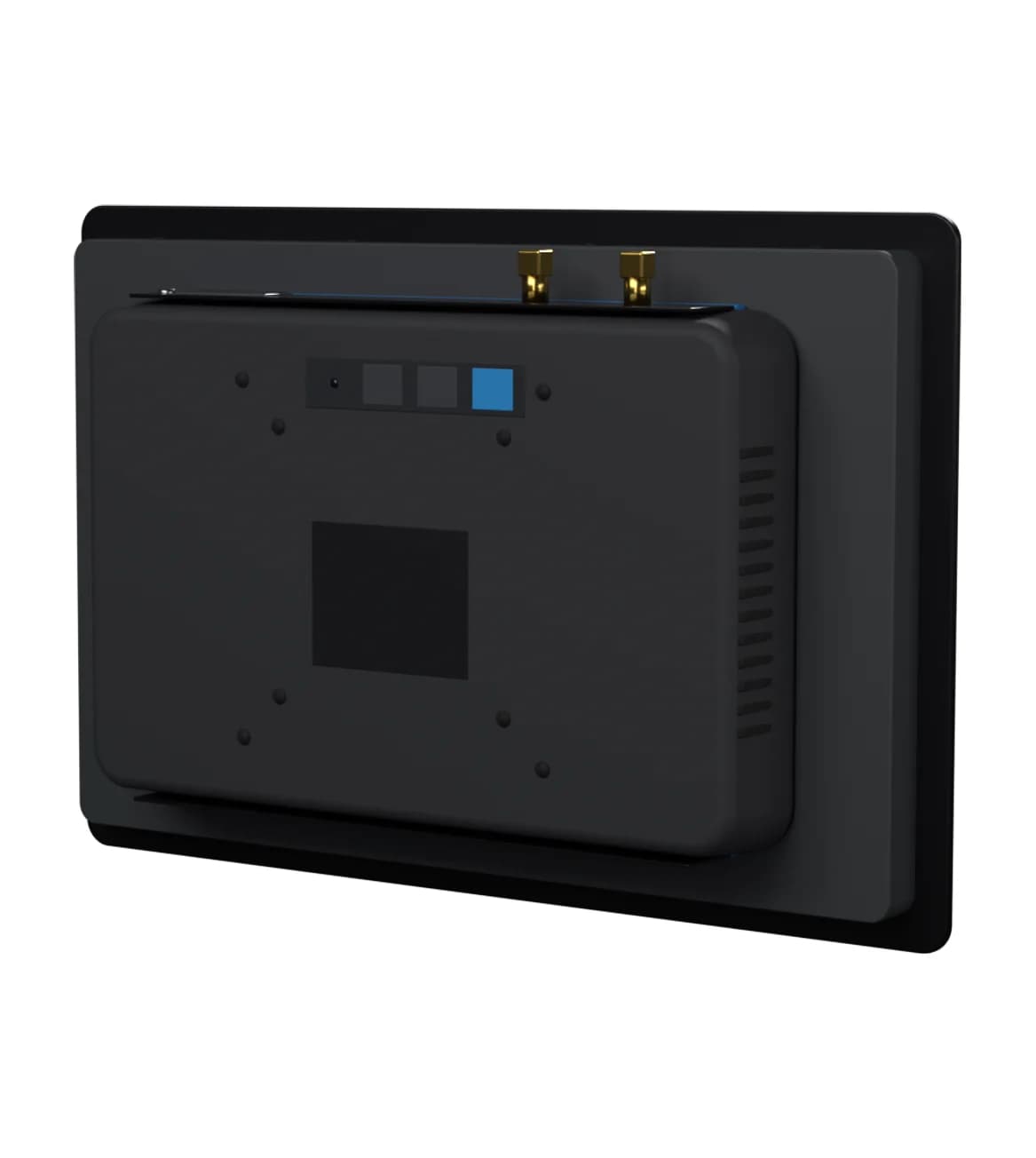

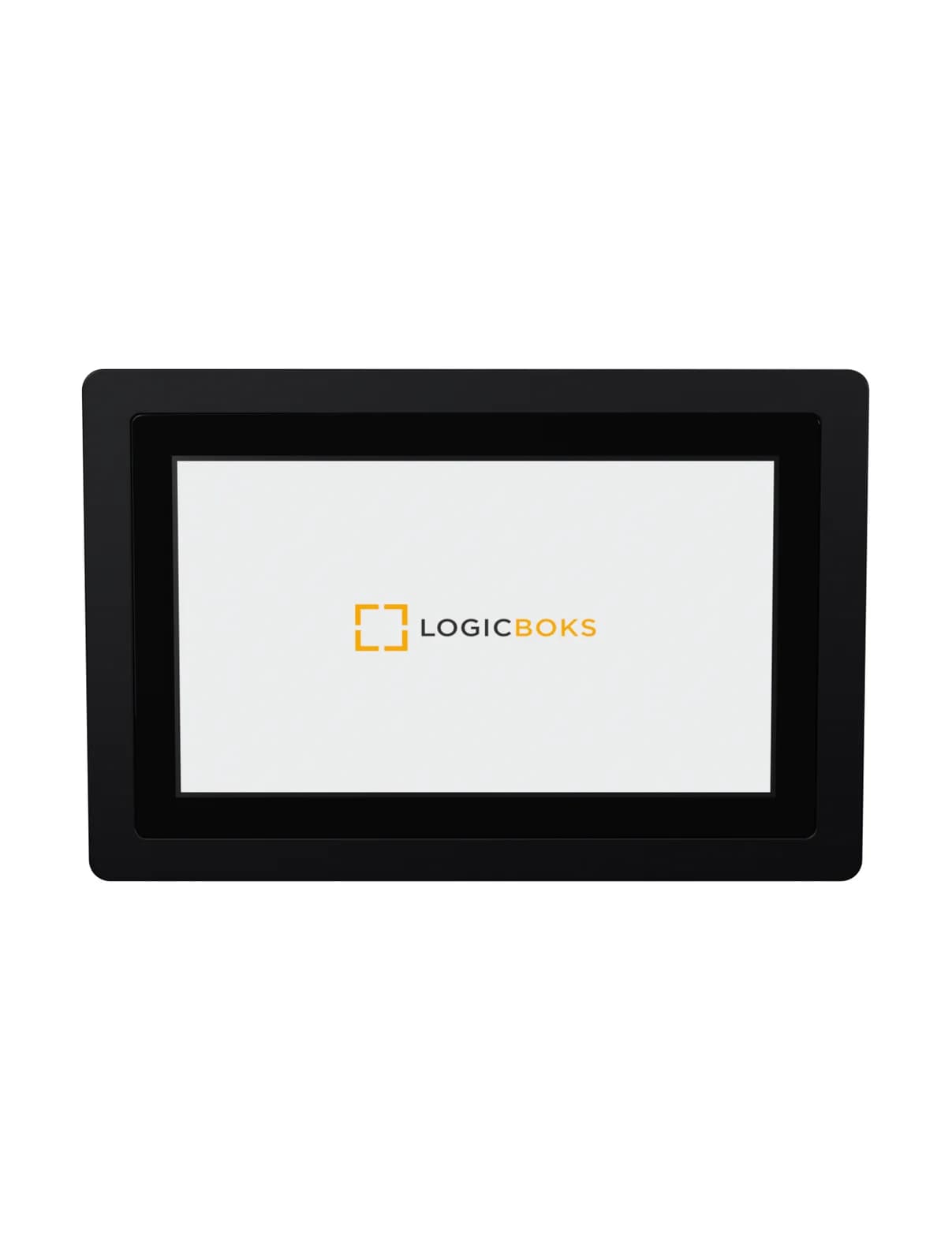

Vantage 10 is a 10.1 inch capacitive touchscreen in a black aluminium case, made to sit flush in a control panel door. It fits a 275 x 175 mm cut-out and is held by four clips from behind, with an IP65 front. It runs on 24 V DC, starts on its own when the supply is made and comes back by itself after a power cut. A 24 V DC mains adaptor is in the box, or it can take its supply from the panel. Every panel arrives with the Vantage app installed. The first time it starts it walks you through four short setup pages and tests itself against your controller, so you know it works before it goes live. It is then locked to its display, so nobody can change it in front of the plant, and it updates itself overnight while keeping its controller, settings and lock. One screen, two editions of the app. The Kieback&Peter edition (Vantage PML) takes a PML display seat on a DDC4000, DDC420 or DDC520 and leaves the controller's remote connection free for your engineer; it is the successor to the TPC70 and keeps its three PML user seats. The Loytec edition shows your L-WEB graphics full screen. Tell us which edition you need when you order.
