Thermokon · Contact sensor

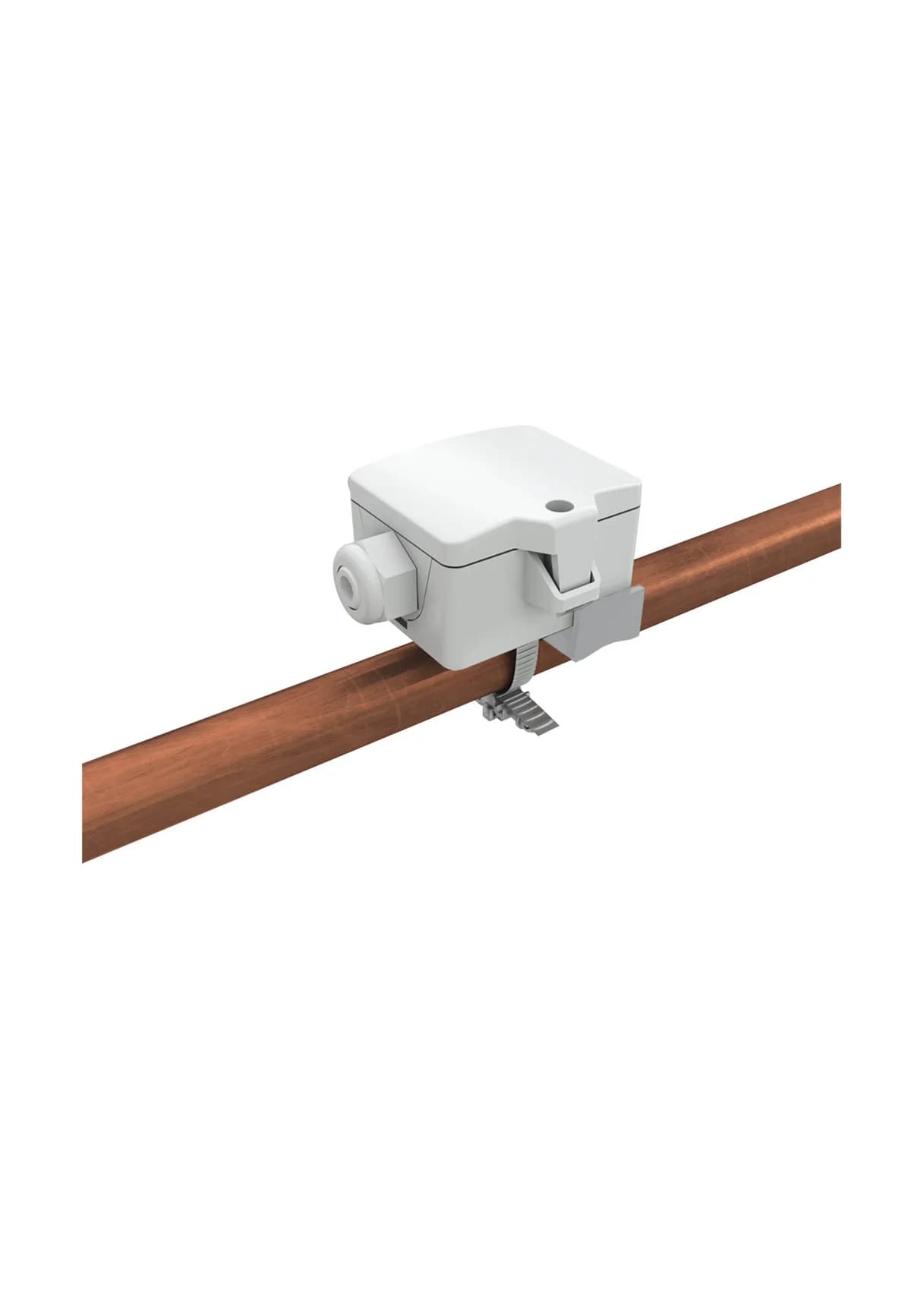

VFG54+ active
Strap-on pipe temperature sensor with a 0 to 10 V or 4 to 20 mA output, optional relay and optional colour LCD.
Sign in for trade prices
Availability and lead time confirmed on your quote
Part number620741
Datasheet, PDF
- Quotes answered within 24 hours, no account needed
- DHL, under 15 kg £13.50 ex VAT
- Technical support from the people who commission it
Specification
Communication
- Interface
- Active 0 to 10 V, 0 to 5 V or 4 to 20 mA; relay contacts on relay versions
- Connection
- Removable M20 or M25 cable entry, plug-in terminals up to 2.5 mm²
Electrical
- Power supply
- 15 to 35 V DC SELV or 19 to 29 V AC SELV
- Power consumption
- Up to 2.5 W at 24 V DC
Environment
- Operating temperature
- -35 to +120 °C (sensing)
- Humidity
- Maximum 85% rH, short term condensation
- Protection
- IP65 IP rating
Performance
- Output signal
- 0 to 10 V or 0 to 5 V, minimum load 10 kOhm; 4 to 20 mA, maximum load 500 Ohm
- Measuring range
- -35 to +120 °C
- Accuracy
- +/-0.5 K at 21 °C within the default range
Physical
- Housing material
- USE-S or USE-M enclosure, PC
- Colour
- Pure white, transparent cover
- Mounting
- Along the pipe or sideways
Part numbers
From the manufacturer's datasheet for VFG54+ active.
Overview

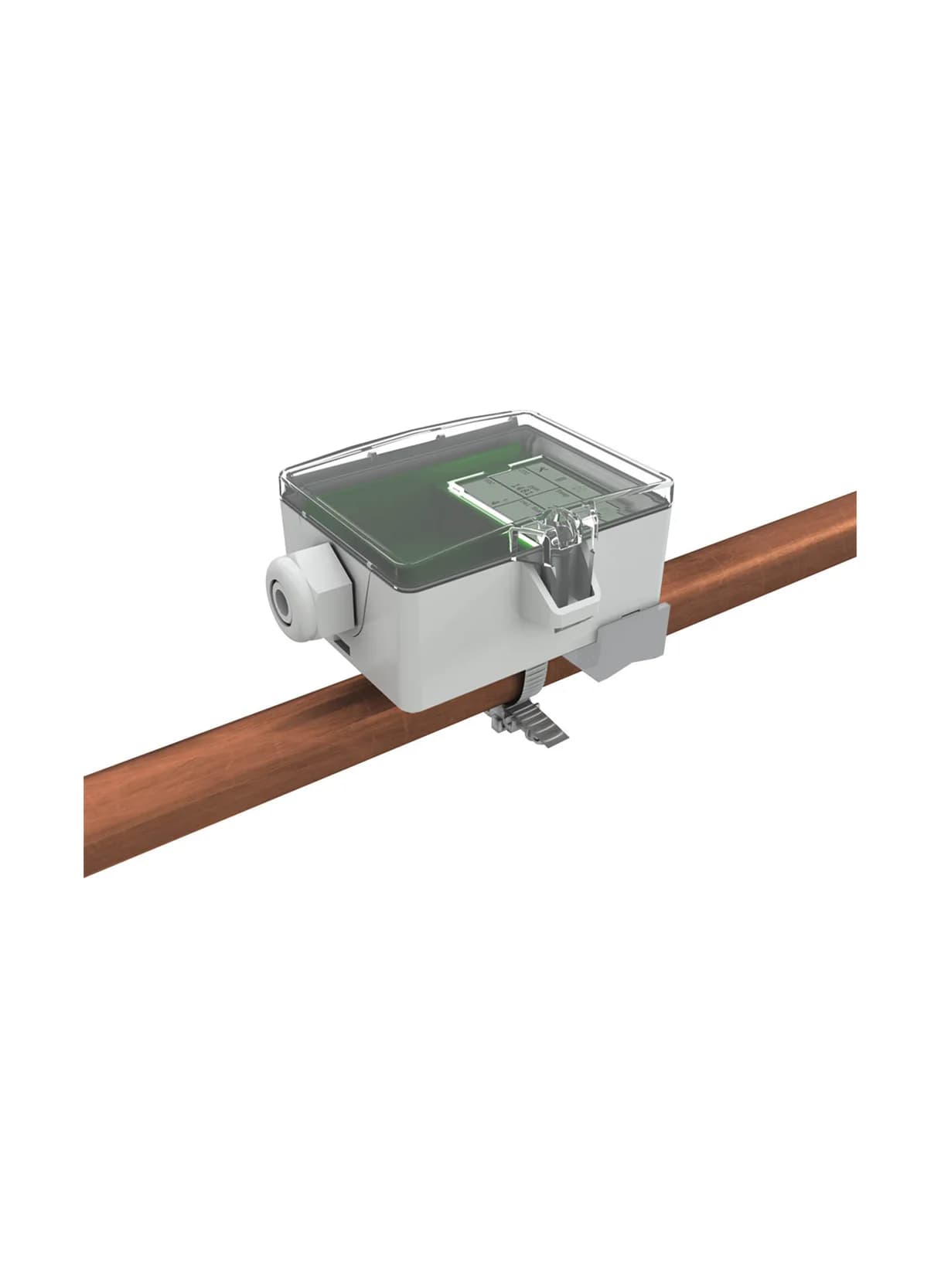

The VFG54+ measures the temperature of cold or hot water on pipes and other curved surfaces. A spring loaded brass contact sensor gives a quick response, and a hinged cover with tool-free terminals speeds up wiring. The MultiRange models output 0 to 10 V (TRV) or 4 to 20 mA (TRA) over a selectable temperature range, up to -50 to +250 °C scaling. Relay versions add two floating contacts for a two-stage thermostat, and LCD versions add a colour changing display with a traffic light function.
