Thermokon · Contact sensor · BACnet
VFG54+ RS485 BACnet

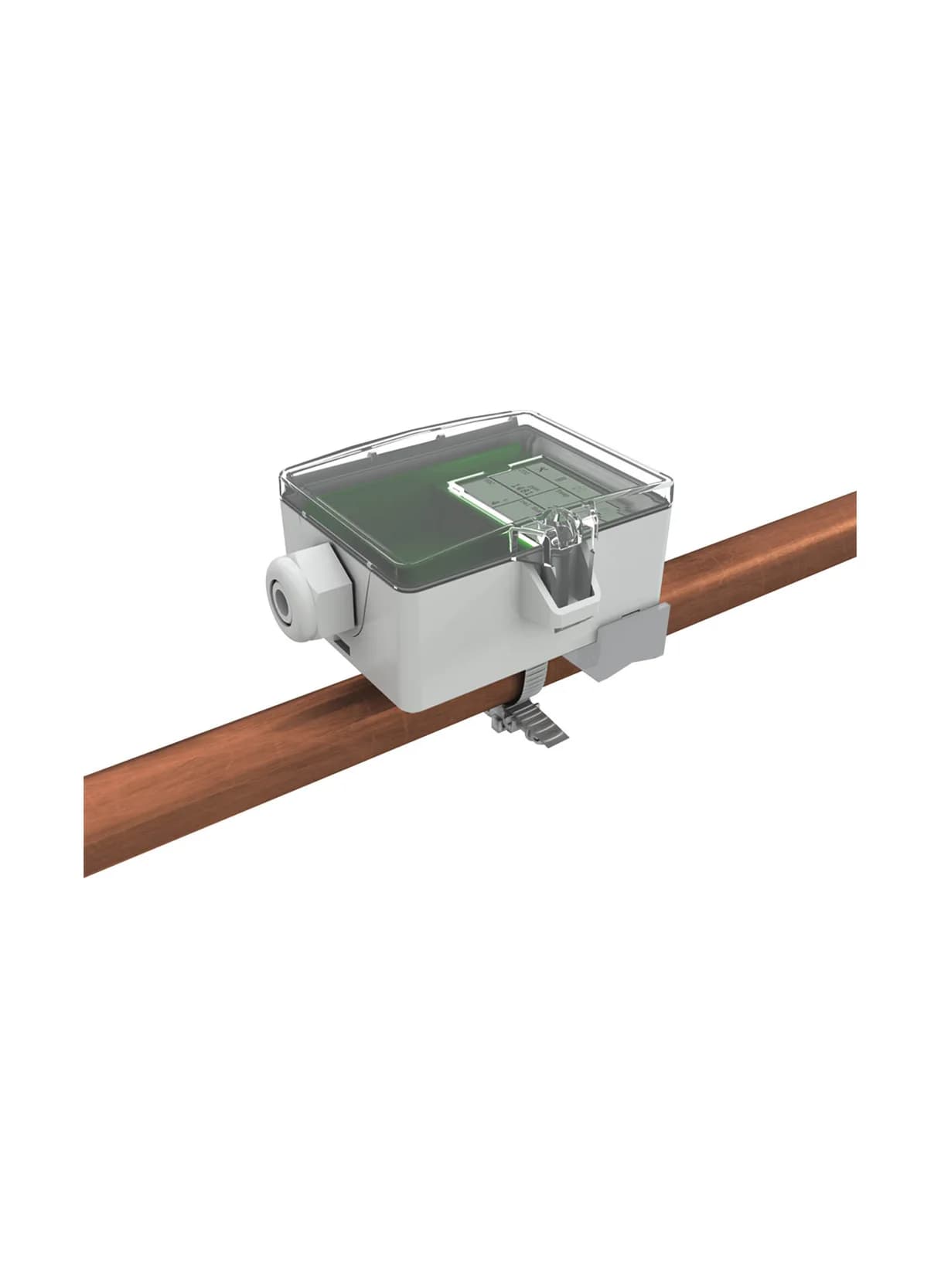

BACnet MS/TP contact sensor for the surface temperature of hot or cold water pipes, with a spring-loaded brass probe.
Sign in for trade prices
Availability and lead time confirmed on your quote
Part number699709
Datasheet, PDF
- Quotes answered within 24 hours, no account needed
- DHL, under 15 kg £13.50 ex VAT
- Technical support from the people who commission it
Specification
Communication
- Protocol
- BACnet MS/TP (RS485)
- Connection
- Plug-in terminal up to 2.5 mm², BUS up to 1.5 mm², M25 cable entry
Electrical
- Power supply
- 15 to 35 V DC or 19 to 29 V AC
- Power consumption
- Max. 2.5 W (24 V DC), 4.3 VA (24 V AC)
Environment
- Humidity
- Max. 85% rH, short term condensation
- Protection
- IP65 IP rating
Performance
- Output signal
- 0 to 10 V or 0 to 5 V, jumper selectable, min. load 10 kΩ
- Measuring range
- -35 to +120 °C, analogue output default -20 to +80 °C
- Accuracy
- +/-0.5 K (typ. at 21 °C), offset adjustable
- Sensor element
- Spring-loaded brass contact sensor
Physical
- Housing material
- PC, USE-M enclosure with quick-release cover
- Colour
- Pure white with transparent cover
Part numbers
From the manufacturer's datasheet for VFG54+ RS485 BACnet.
Overview
The VFG54+ measures the temperature of cold or hot water on pipes and other curved surfaces. The spring-loaded brass contact sensor gives a fast response and can be fitted along the pipe or sideways. It has a BACnet MS/TP interface and, as well, active 0 to 10 V or 0 to 5 V outputs. Settings are made with the USEapp, uConfig, jumpers and DIP switches. The LCD version has a colour changing display with a traffic light function. Wiring is tool-free in a USE-M enclosure with a hinged cover.
