Thermokon · Contact sensor · Modbus
VFG54+ RS485 Modbus

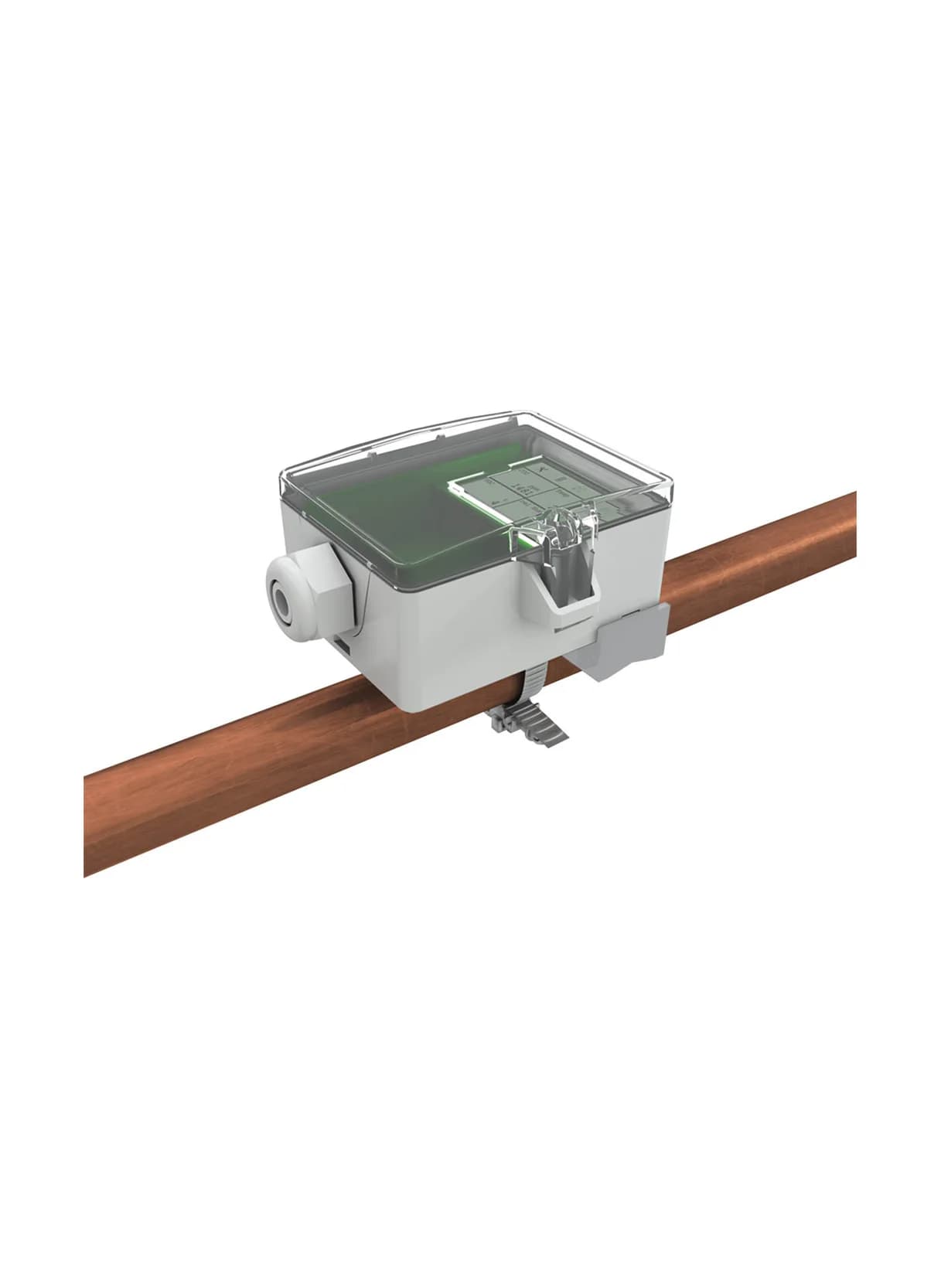

Spring-loaded contact temperature sensor for pipes, with RS485 Modbus and 0 to 10 V or 0 to 5 V output, and an optional colour changing LCD.
Sign in for trade prices
Availability and lead time confirmed on your quote
Part number663045
Datasheet, PDF
- Quotes answered within 24 hours, no account needed
- DHL, under 15 kg £13.50 ex VAT
- Technical support from the people who commission it
Specification
Communication
- Protocol
- Modbus RTU, RS485, 9600 to 57600 baud
- Interface
- RS485 Modbus and analogue
- Connection
- Plug-in terminal, max. 2.5 mm², bus max. 1.5 mm², M25 cable entry
Electrical
- Power supply
- 15 to 35 V DC or 19 to 29 V AC (SELV)
- Power consumption
- Max. 2.5 W (24 V DC), 4.3 VA (24 V AC)
Environment
- Operating temperature
- -35 to +120 °C
- Humidity
- Max. 85% rH, short term condensation
- Protection
- IP65 IP rating
Performance
- Output signal
- 0 to 10 V or 0 to 5 V, min. load 10 kΩ
- Measuring range
- Output scaling -20 to +80 °C by default, selectable from 8 ranges
- Accuracy
- ±0.5 K (typ. at 21 °C), offset adjustable by app or uConfig
Physical
- Housing material
- PC, USE-M housing; brass spring-loaded contact
- Colour
- Pure white, transparent cover
- Mounting
- Along the pipe or sideways
Part numbers
From the manufacturer's datasheet for VFG54+ RS485 Modbus.
Overview
The VFG54+ RS485 Modbus measures the temperature of cold or hot water on pipes and other curved surfaces. A spring-loaded brass contact gives a fast response. It reports over RS485 Modbus RTU and also has a 0 to 10 V or 0 to 5 V analogue output. The LCD version adds a 29 x 35 mm display with RGB backlight and a traffic light function with configurable thresholds. Set up is by the USEapp, uConfig, jumpers or DIP switches. The housing has a hinged cover, tool-free wiring and removable cable entries.
