Thermokon · Wireless switch · Bluetooth Low Energy
Wireless Switch BJ 63x63 BLE
Battery free Bluetooth Low Energy wall switch for lights or blinds, in the Busch-Jaeger 63 x 63 mm frame design.
Sign in for trade prices
Availability and lead time confirmed on your quote
Part number734516
Datasheet, PDF
- Quotes answered within 24 hours, no account needed
- DHL, under 15 kg £13.50 ex VAT
- Technical support from the people who commission it
Specification
Communication
- Protocol
- Bluetooth Low Energy, 2.4 GHz, beacon
- Interface
- Bluetooth Low Energy
Electrical
- Power supply
- Electrodynamic energy generator, maintenance free
Environment
- Operating temperature
- -25 to +65 °C
- Humidity
- Max. 85% rH, non-condensing
Physical
- Housing material
- PC
- Colour
- Studio white, ivory white or anthracite, by part
- Mounting
- Surface mounted flat, adhesive foil or screws
Part numbers
- 7345162-channel light, studio white
- 7345472-channel light, ivory white
- 7345612-channel light, anthracite
- 7345094-channel light, studio white
- 7345784-channel light, ivory white
- 7345924-channel light, anthracite
- 7346152-channel blind, studio white
- 7346222-channel blind, ivory white
- 7350562-channel blind, anthracite
- 7346084-channel blind, studio white
- 7350704-channel blind, ivory white
- 7351004-channel blind, anthracite
From the manufacturer's datasheet for Wireless Switch BJ 63x63 BLE.

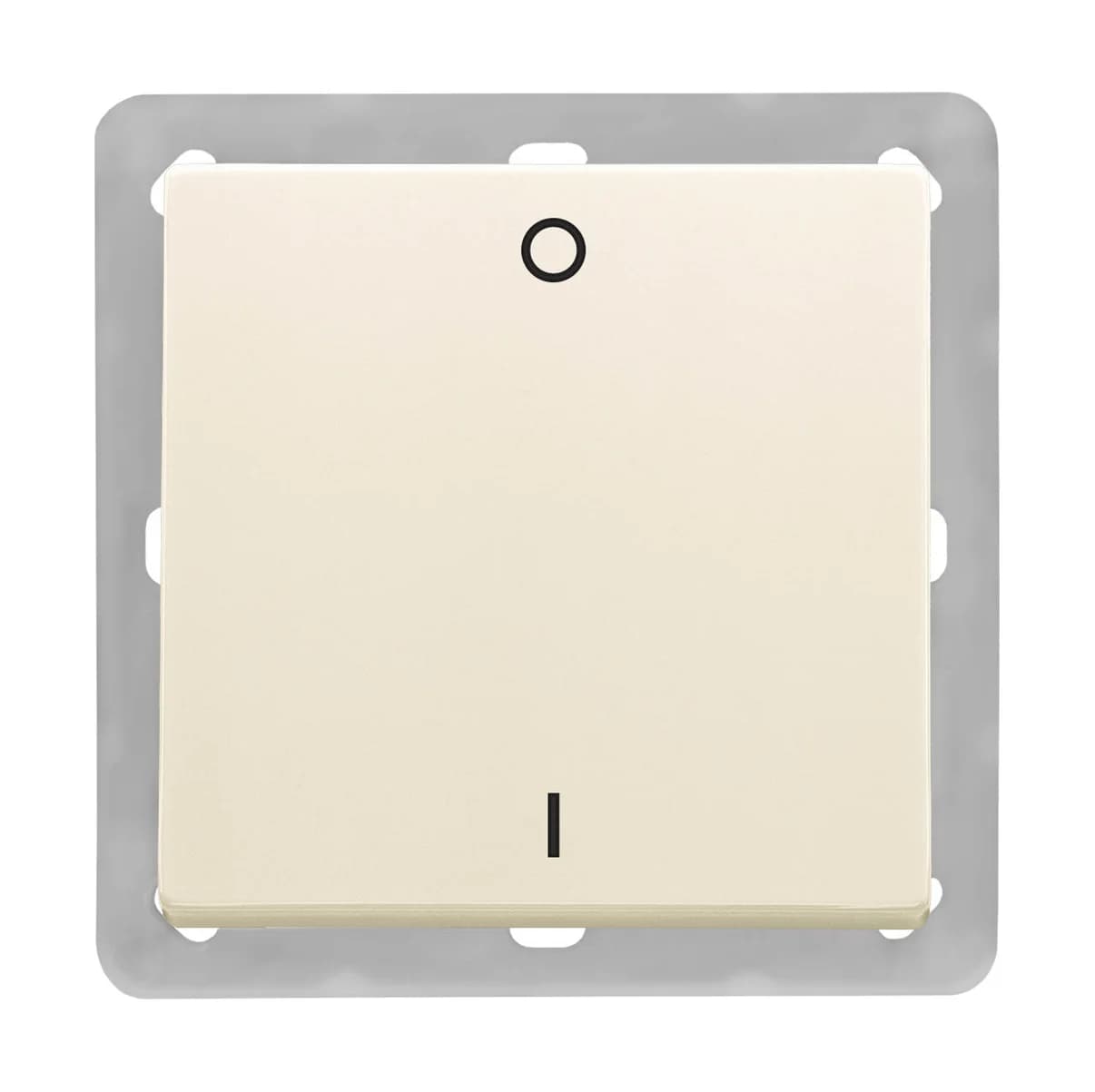

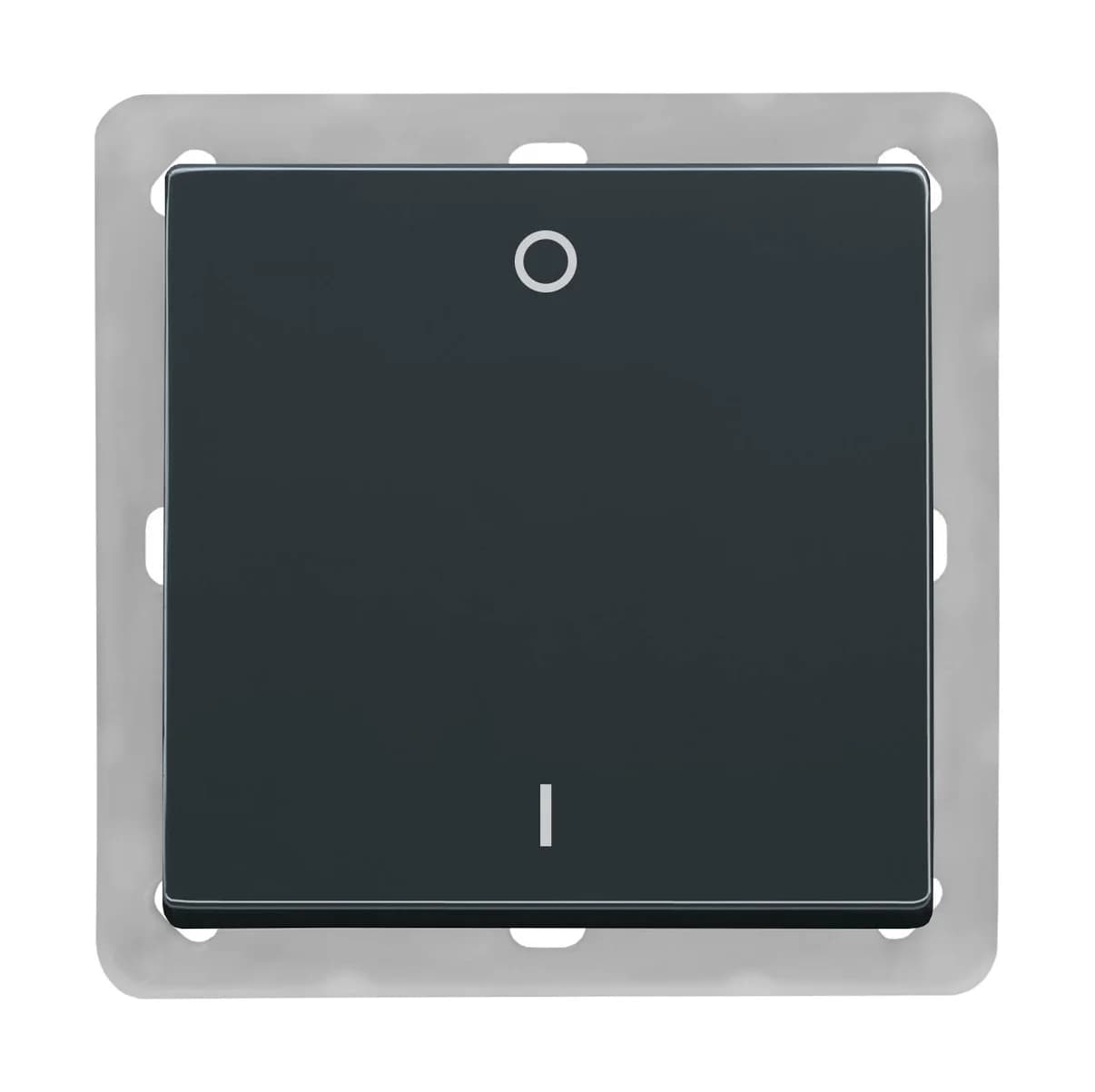

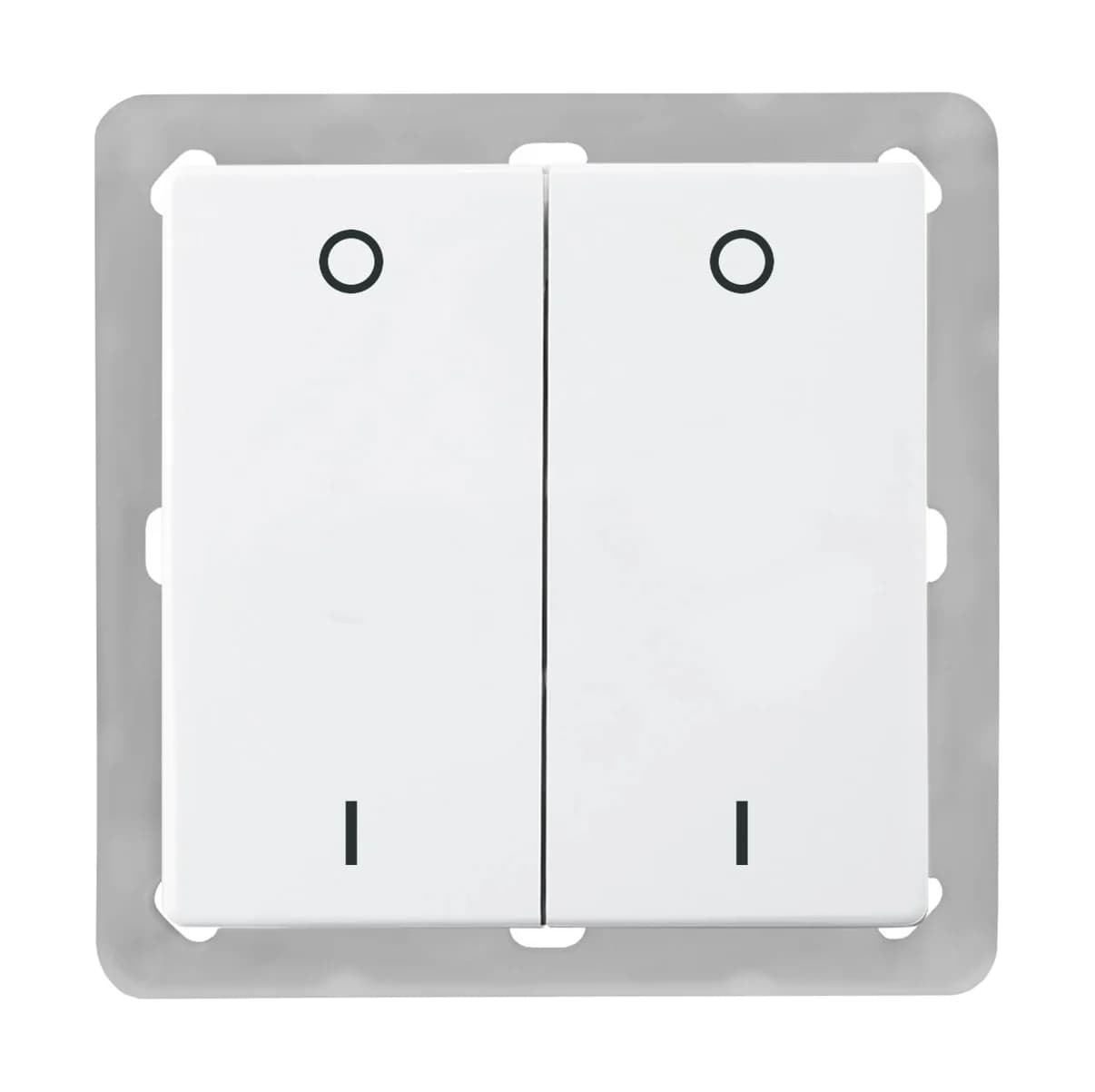

Overview
This energy harvesting wireless switch sets the on, off and dimming state of lights, and the up and down movement of blinds. It is made for Busch-Jaeger 63 x 63 mm designs (Busch-axcent, carat, future linear and solo; the frame is specified when ordering). Being wireless, it can be fixed to glass or plasterboard walls with the adhesive pad or with screws. A maintenance free electrodynamic generator powers it. It is set up over NFC. Versions have two or four channels, for lighting or for blinds, in studio white, ivory white or anthracite.
