Thermokon · Wireless switch · EnOcean

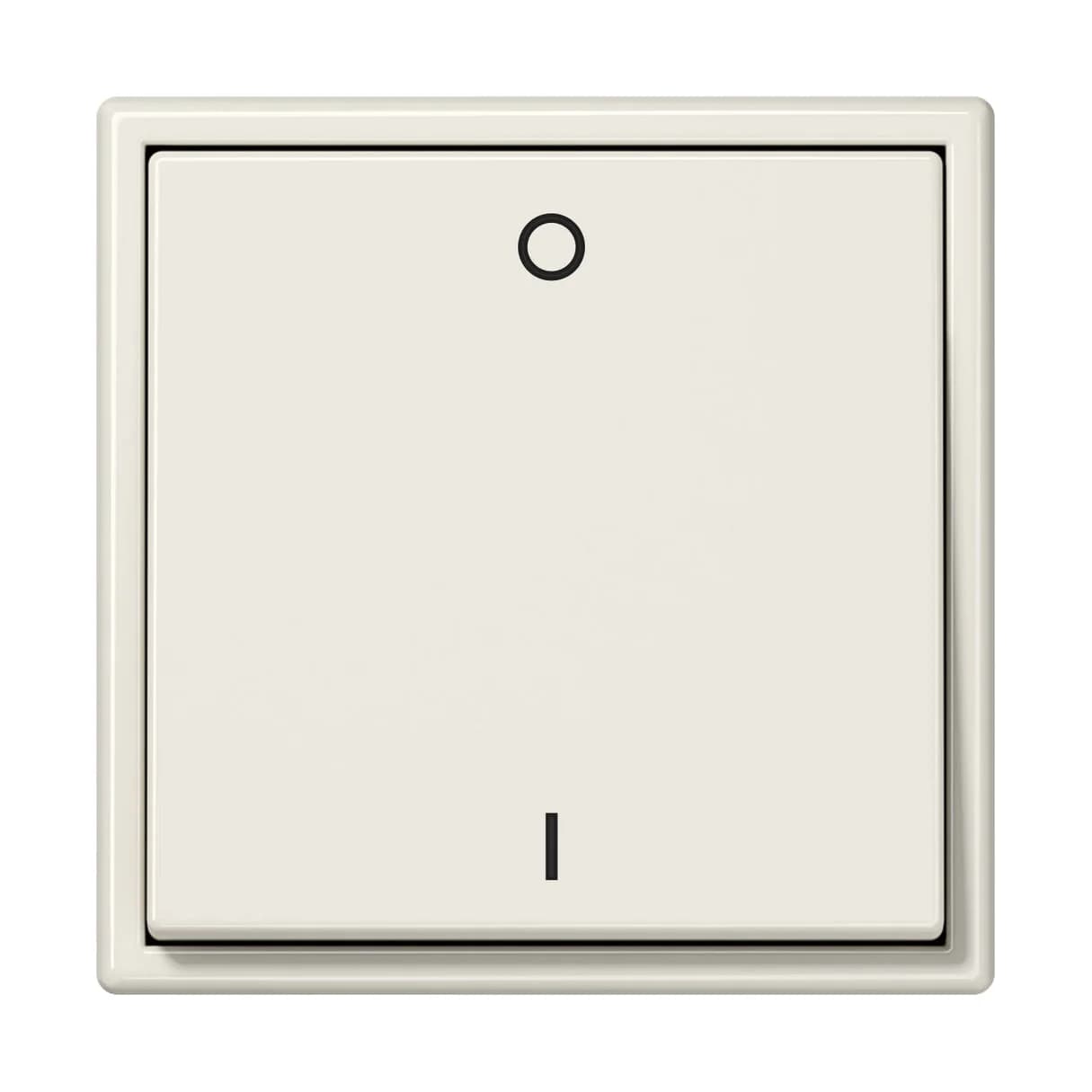

Wireless switch Jung LS 990
Energy-harvesting EnOcean wireless switch in the Jung LS 990 design, for lights or blinds, with two or four channels.
Sign in for trade prices
Availability and lead time confirmed on your quote
Part number435390
Datasheet, PDF
- Quotes answered within 24 hours, no account needed
- DHL, under 15 kg £13.50 ex VAT
- Technical support from the people who commission it
Specification
Communication
- Protocol
- EnOcean (IEC 14543-3-10), EEP F6-10-00 (RPS)
- Interface
- EnOcean 868 MHz, transmission power under 10 mW
Electrical
- Power supply
- Maintenance-free electrodynamic energy generator
Environment
- Operating temperature
- -25 to +65 °C
- Humidity
- max. 85% rH, non-condensing
Physical
- Housing material
- PC
- Colour
- White, alpine white or light grey, by version
- Mounting
- Surface mounted flat on base with adhesive foil or screws
- Dimensions
- 81 x 81 x 15 mm
Part numbers

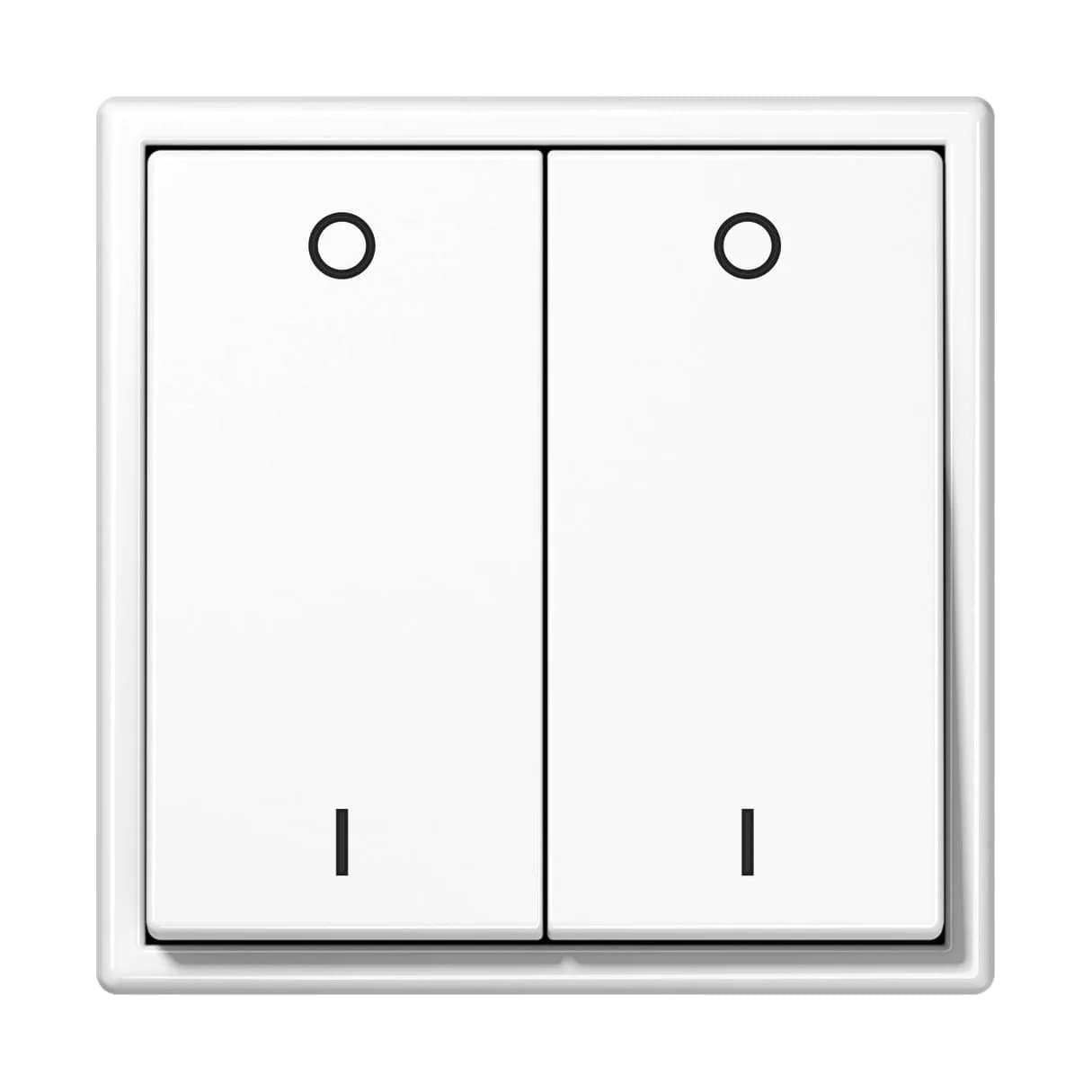

- 435390White, 2-channel light

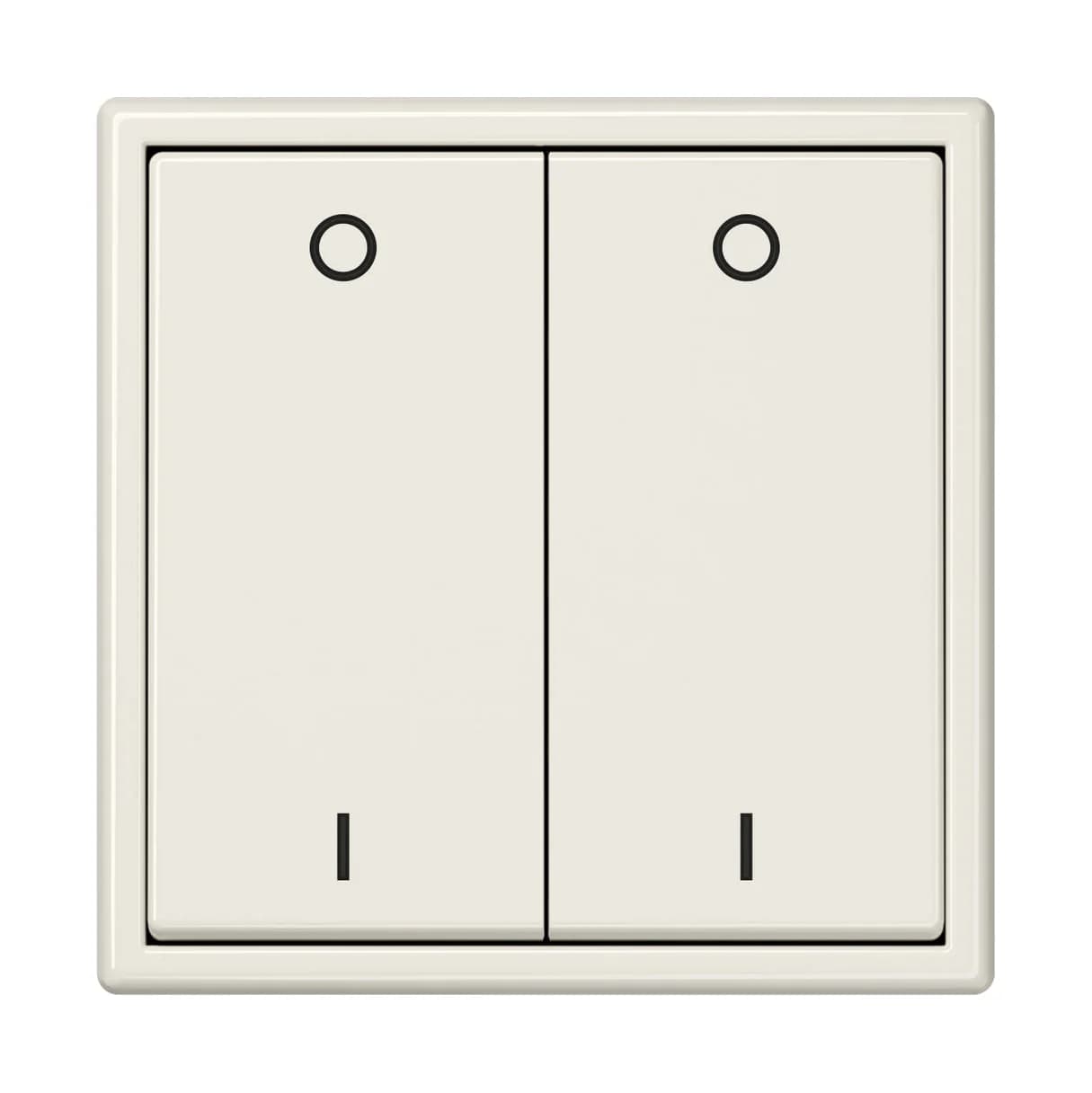

- 435376Alpine white, 2-channel light

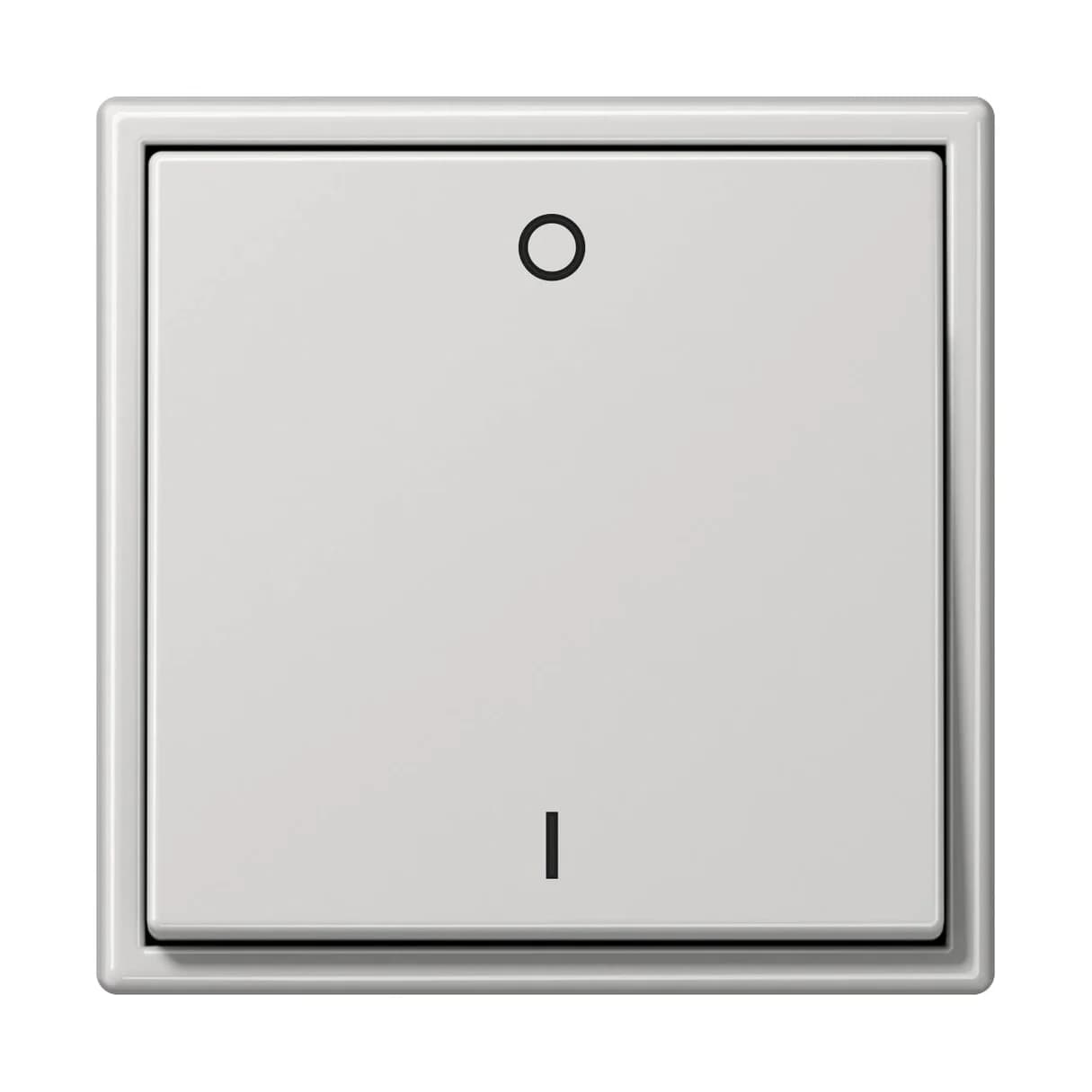

- 435413Light grey, 2-channel light
- 435475White, 4-channel light
- 435451Alpine white, 4-channel light
- 435499Light grey, 4-channel light
- 435406White, 2-channel blind
- 435383Alpine white, 2-channel blind
- 435420Light grey, 2-channel blind
- 435482White, 4-channel blind
- 435468Alpine white, 4-channel blind
- 435505Light grey, 4-channel blind
From the manufacturer's datasheet for Wireless switch Jung LS 990.
Overview
This wireless switch is built to the Jung LS 990 design and needs no wiring or battery. A small electrodynamic generator powers each telegram when the switch is pressed, so it can be fixed with the adhesive foil or screws to glass and plasterboard walls. Versions are available for light on and off or for blinds up and down, in two or four channel form, in white, alpine white or light grey. Two labels with the transmission ID are supplied.
