Thermokon · Wireless switch · Bluetooth Low Energy
Wireless Switch Mini BLE
Battery-free Bluetooth Low Energy wall switch for lights or blinds, with 2 or 4 channels, in white or anthracite.
Sign in for trade prices
Availability and lead time confirmed on your quote
Part number731065
Datasheet, PDF
- Quotes answered within 24 hours, no account needed
- DHL, under 15 kg £13.50 ex VAT
- Technical support from the people who commission it
Specification
Communication
- Protocol
- Bluetooth Low Energy, 2.4 GHz
Electrical
- Power supply
- Maintenance-free electrodynamic energy generator
Environment
- Operating temperature
- -25 to +65 °C
- Humidity
- Maximum 85% rH, non-condensing
Physical
- Housing material
- PC
- Colour
- Pure white brilliant or anthracite
- Mounting
- Surface, with adhesive foil or screws
- Dimensions
- 61 x 61 x 15 mm
Part numbers

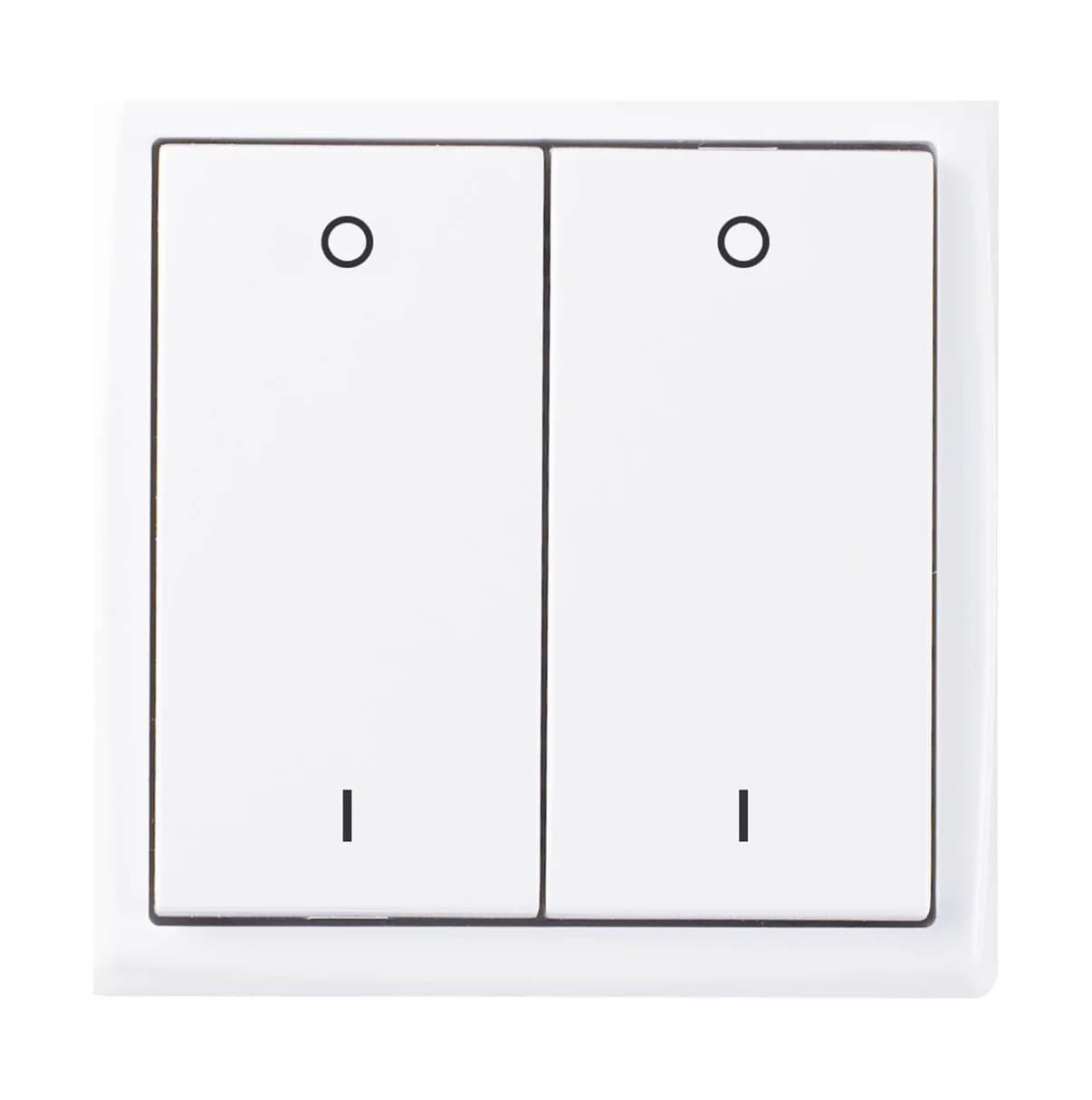

- 7310652 channel, light, pure white brilliant

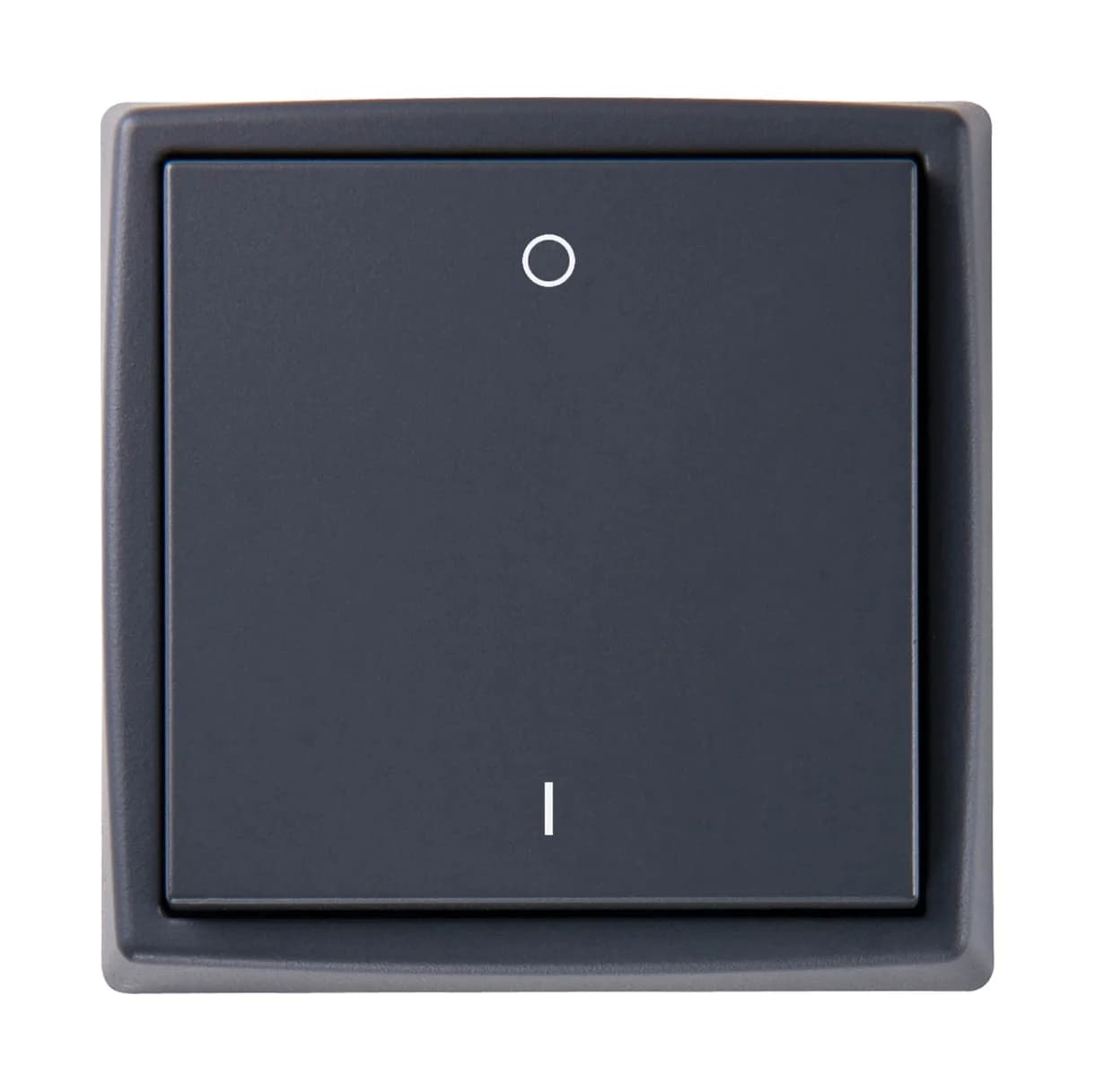

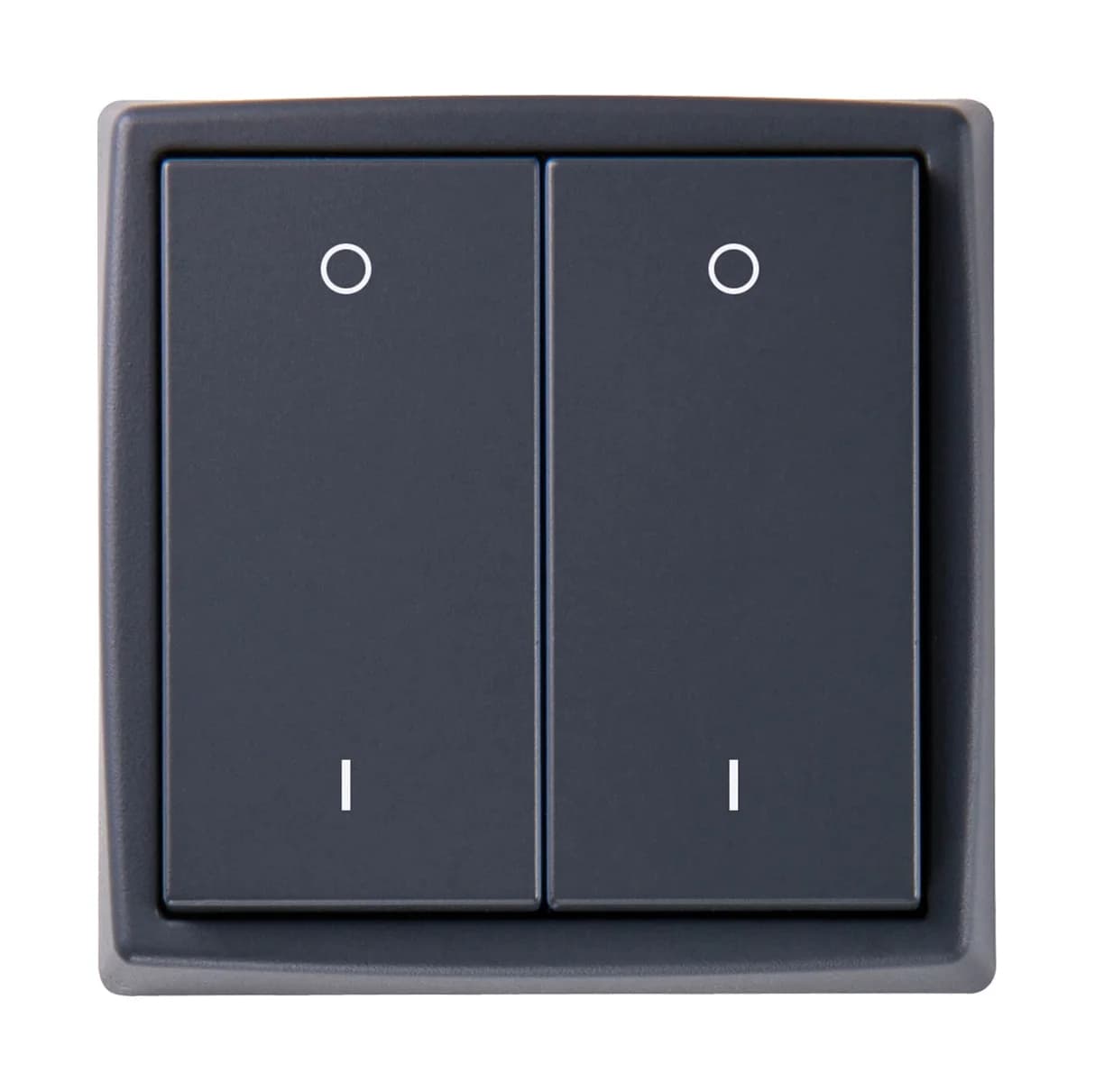

- 7339532 channel, light, anthracite
- 7084254 channel, light, pure white brilliant
- 7339774 channel, light, anthracite

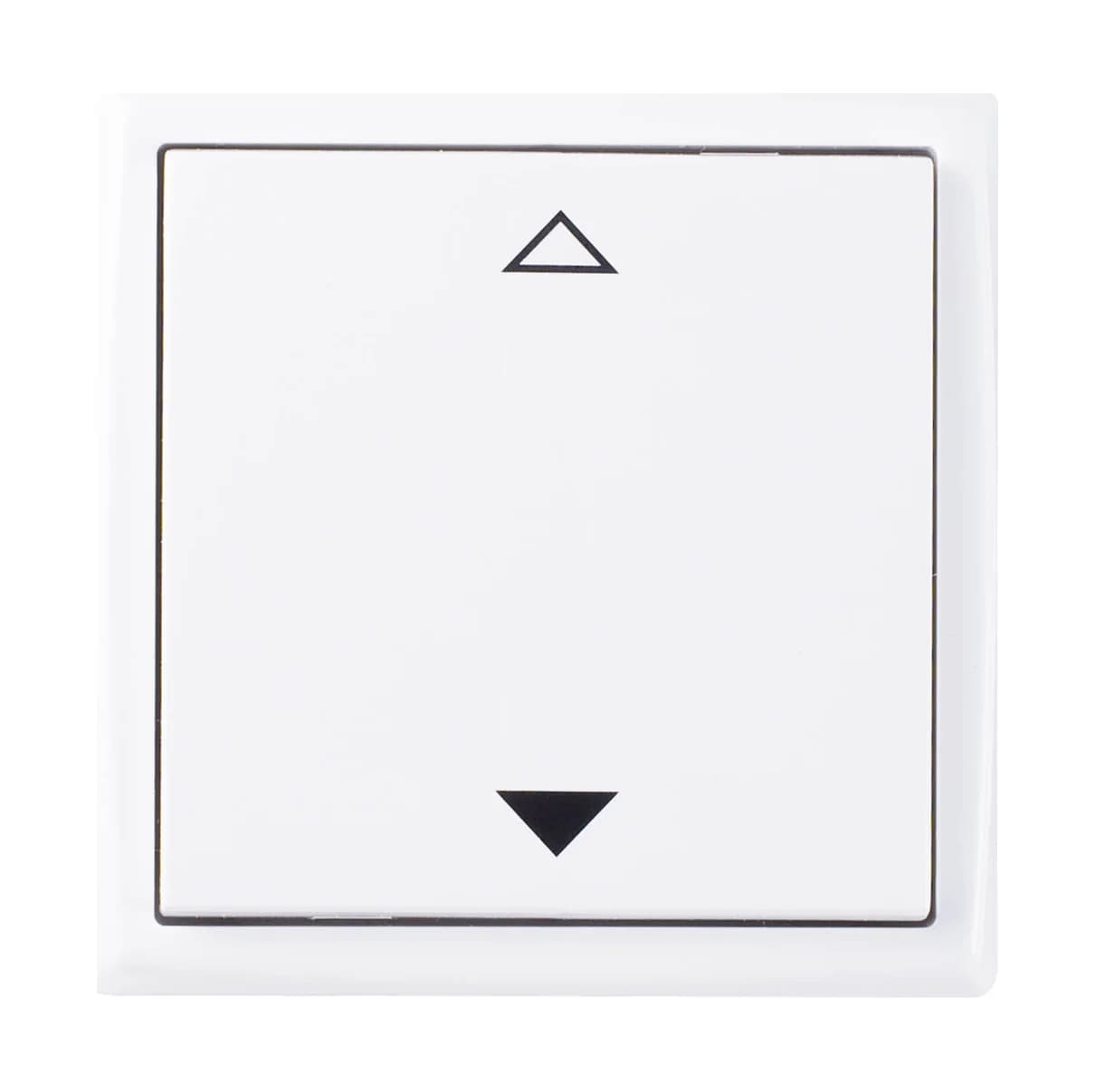

- 7339842 channel, blind, pure white brilliant

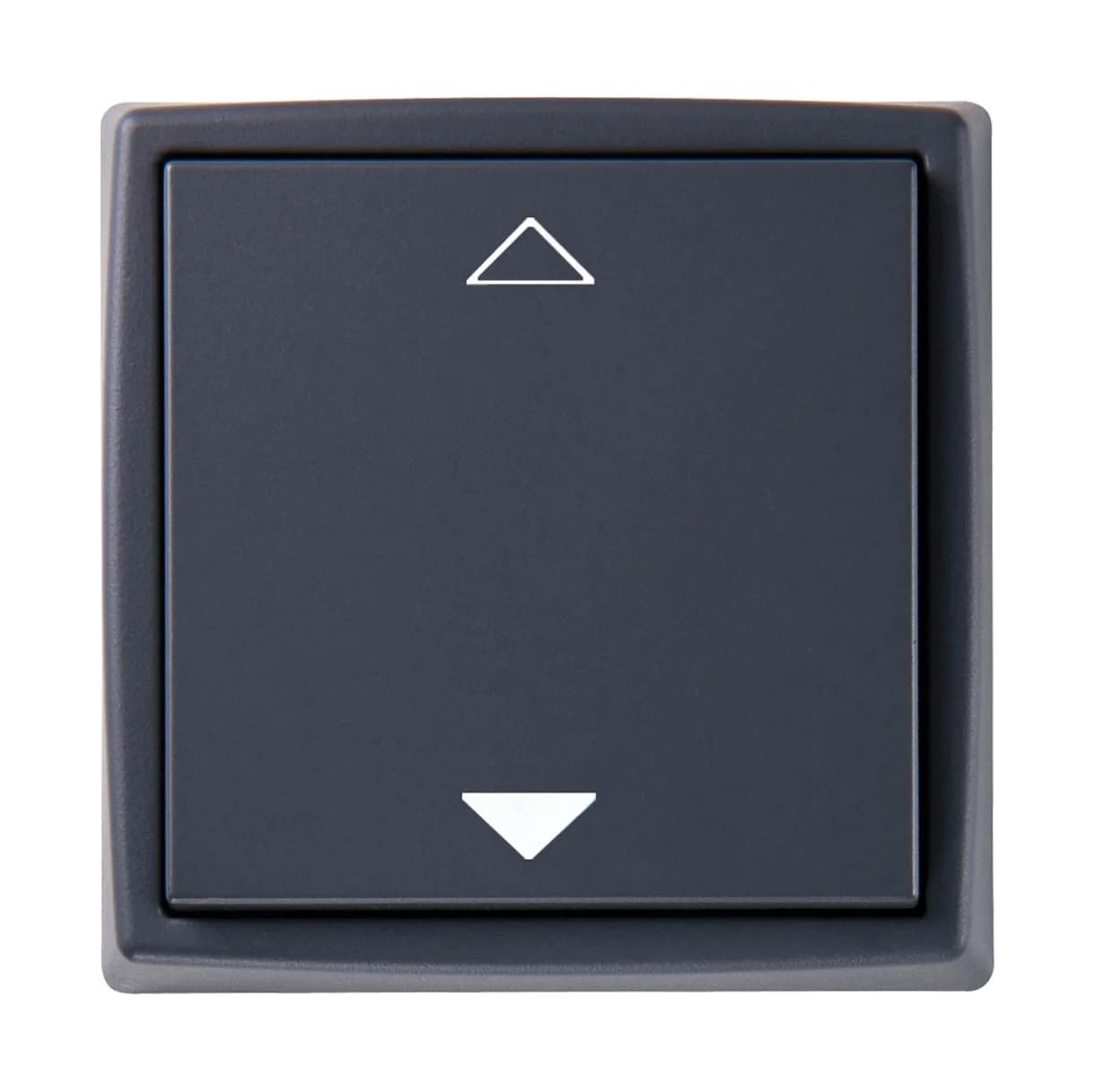

- 7340042 channel, blind, anthracite
- 7340114 channel, blind, pure white brilliant
- 7340354 channel, blind, anthracite
From the manufacturer's datasheet for Wireless Switch Mini BLE.
Overview
The Wireless Switch Mini BLE adjusts lights, dimming levels or blinds without wiring or batteries. A small electrodynamic generator in the switch makes the energy to send each press. It can be glued to glass or plasterboard with the adhesive pad, or screwed to a wall. Versions are available for light control (on and off) or blind control (up and down), with two or four channels, in pure white brilliant or anthracite. It is set up by NFC or by the data matrix code on the back.
