Thermokon · Wireless switch · EnOcean

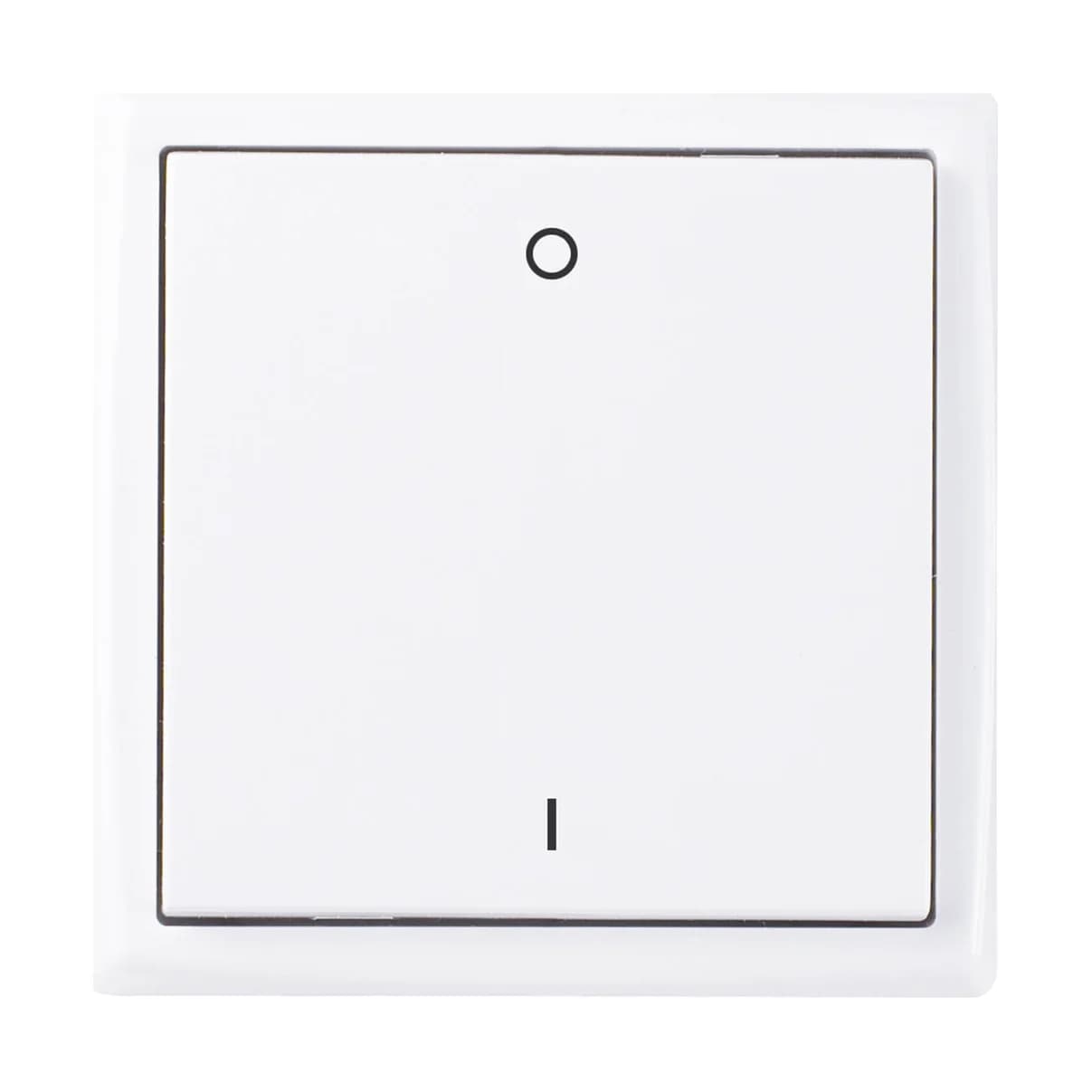

Wireless Switch Mini EnOcean
Battery-free EnOcean wireless switch with frame, 61 x 61 mm, for lights or blinds, two or four channels.
Sign in for trade prices
Availability and lead time confirmed on your quote
Part number430647
Datasheet, PDF
- Quotes answered within 24 hours, no account needed
- DHL, under 15 kg £13.50 ex VAT
- Technical support from the people who commission it
Specification
Communication
- Protocol
- EnOcean, 868 MHz, radio telegram EEP F6-10-00 (RPS)
Electrical
- Power supply
- Maintenance-free electrodynamic energy generator
Environment
- Operating temperature
- -25 to +65 °C
- Humidity
- Max. 85% rH non-condensing
Performance
- Operating force
- 7 N, actuation range 2 mm, more than 50,000 operating cycles
Physical
- Housing material
- PC
- Colour
- Pure white brilliant or anthracite, by version
- Dimensions
- 61 x 61 x 15 mm
- Mounting
- Surface, flat on the base with adhesive foil or screws
Part numbers
- 4306472-channel light, Pure white brilliant

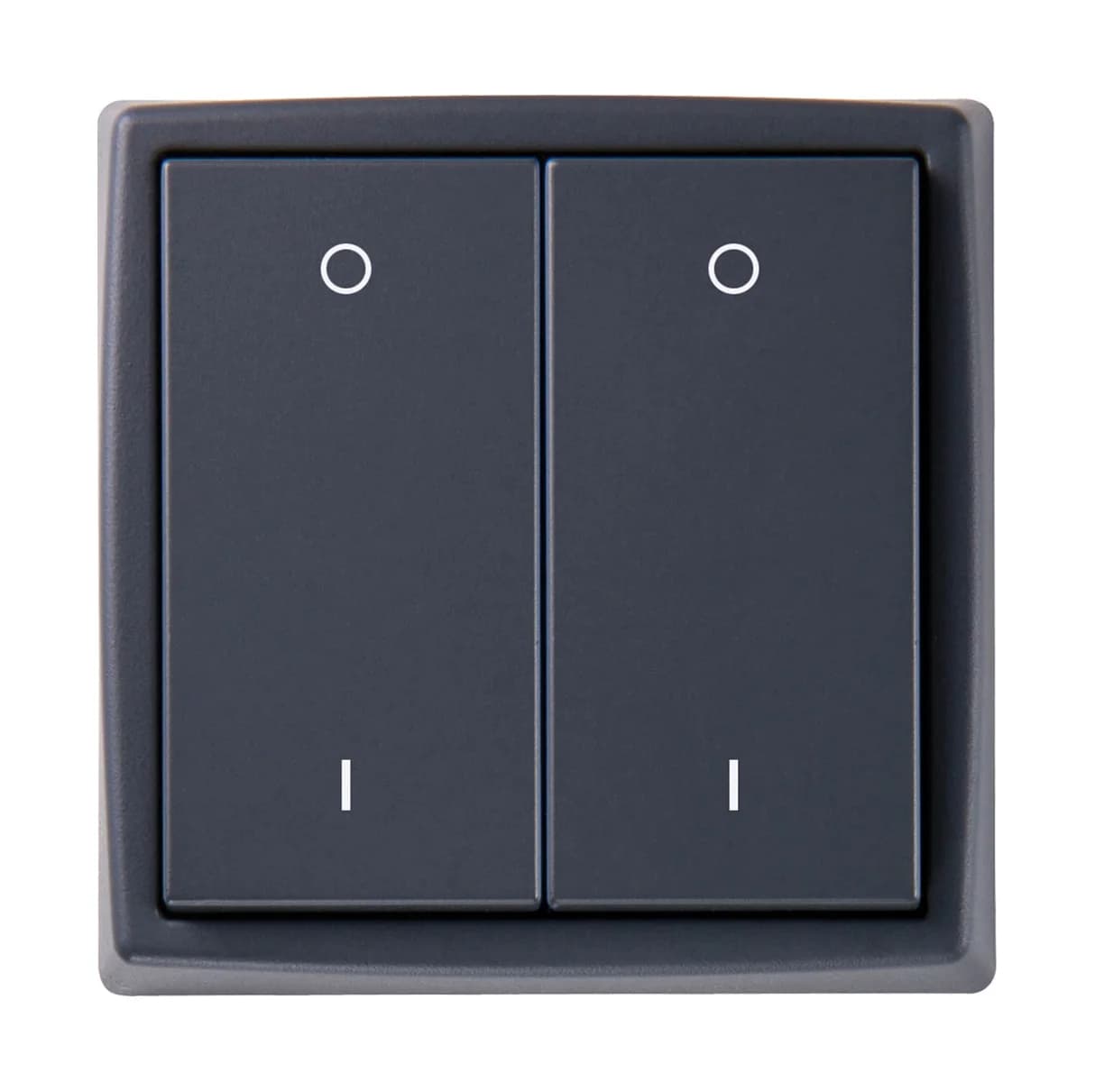

- 4306232-channel light, Anthracite

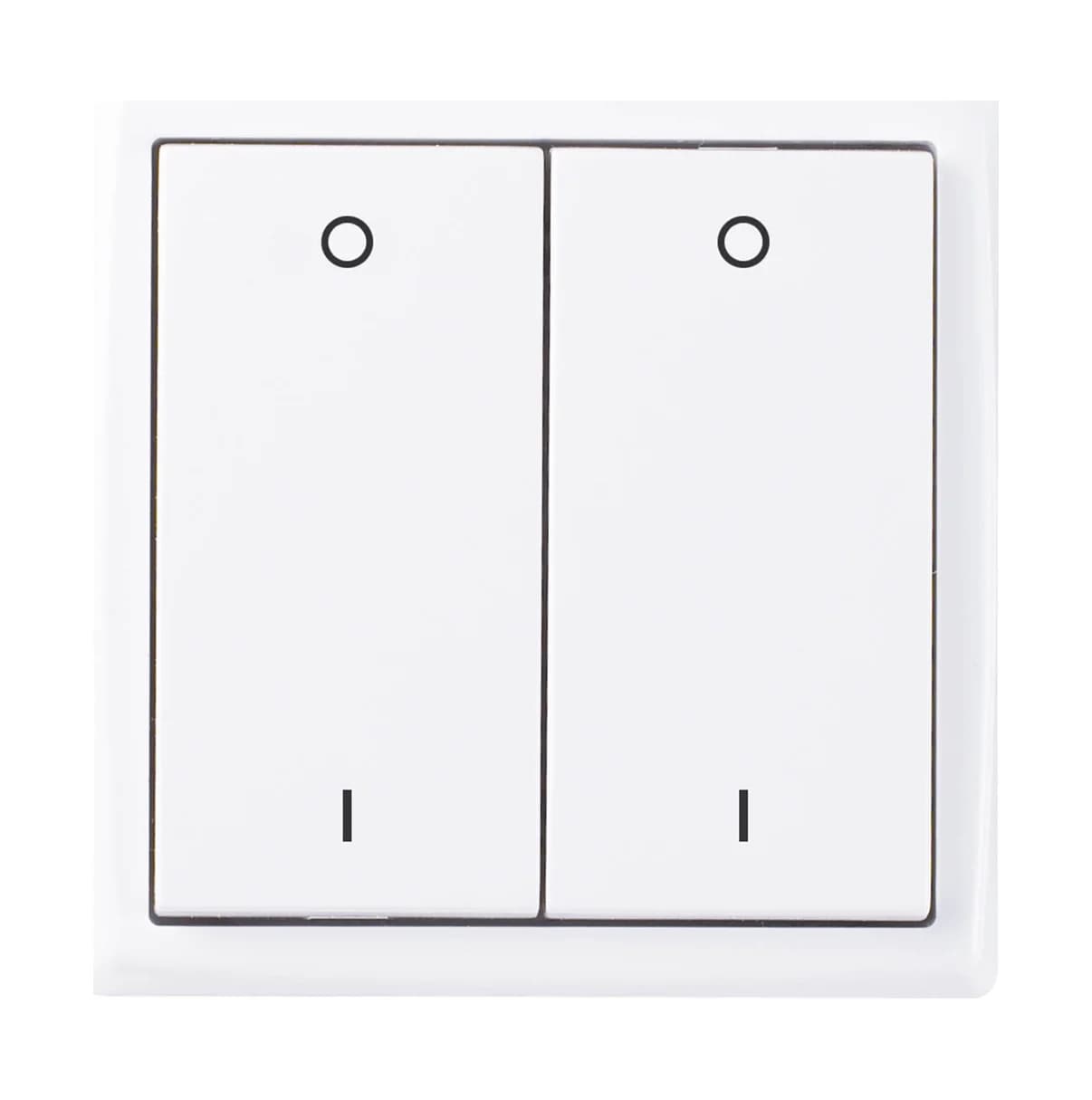

- 4308384-channel light, Pure white brilliant
- 4308144-channel light, Anthracite

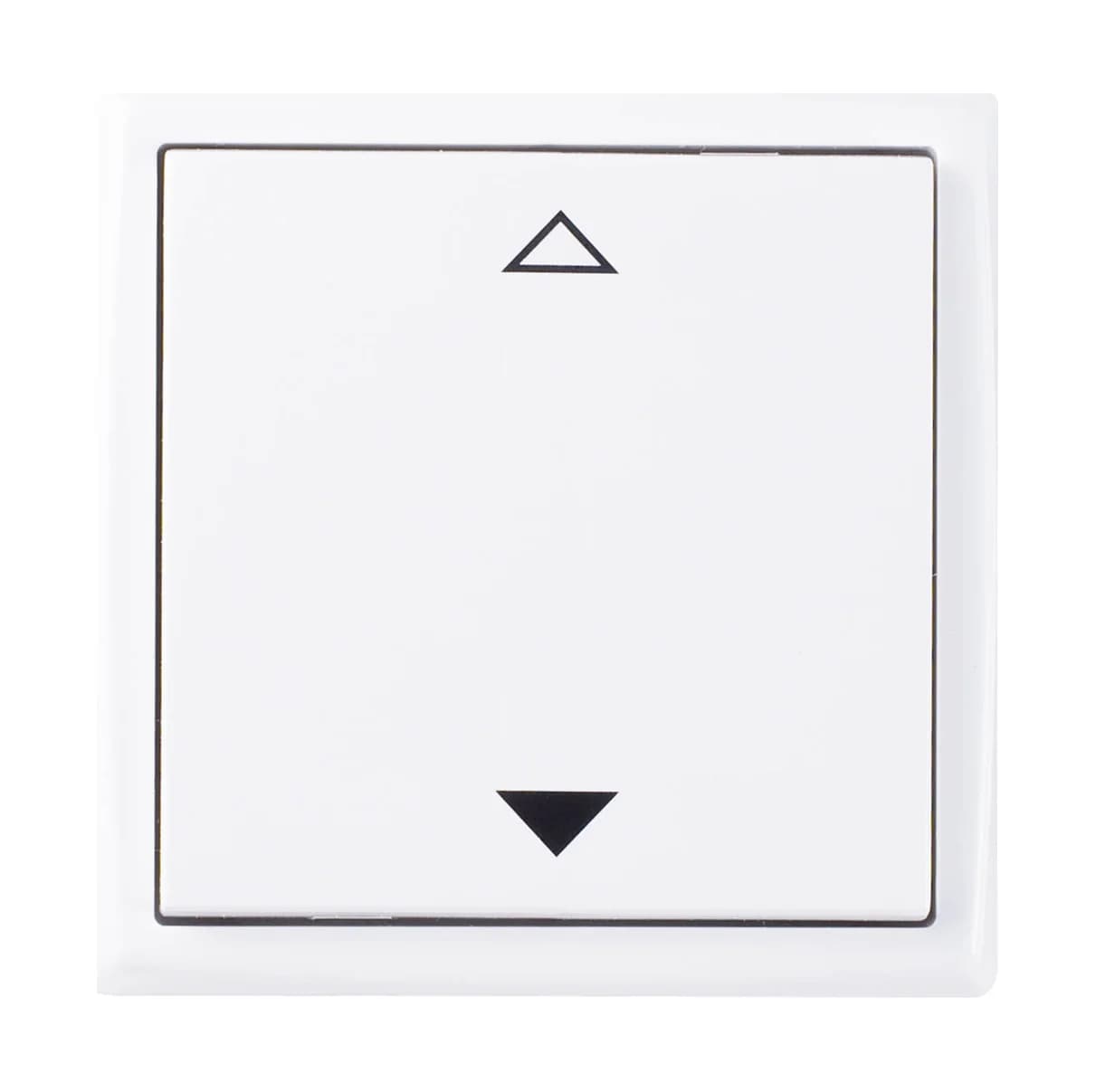

- 4306302-channel blind, Pure white brilliant
- 4303022-channel blind, Anthracite
- 4308214-channel blind, Pure white brilliant
- 4308074-channel blind, Anthracite
From the manufacturer's datasheet for Wireless Switch Mini EnOcean.
Overview
This compact energy-harvesting wireless switch controls lighting or blinds without a battery or wiring. It can be fixed to glass or plasterboard walls with an adhesive pad or screws. It sends an EnOcean telegram as soon as a rocker is pressed. Light versions switch and dim, and blind versions move blinds up and down. The frame is included, and two labels showing the transmission ID and adhesive foil are supplied.
