Thermokon · Room sensor

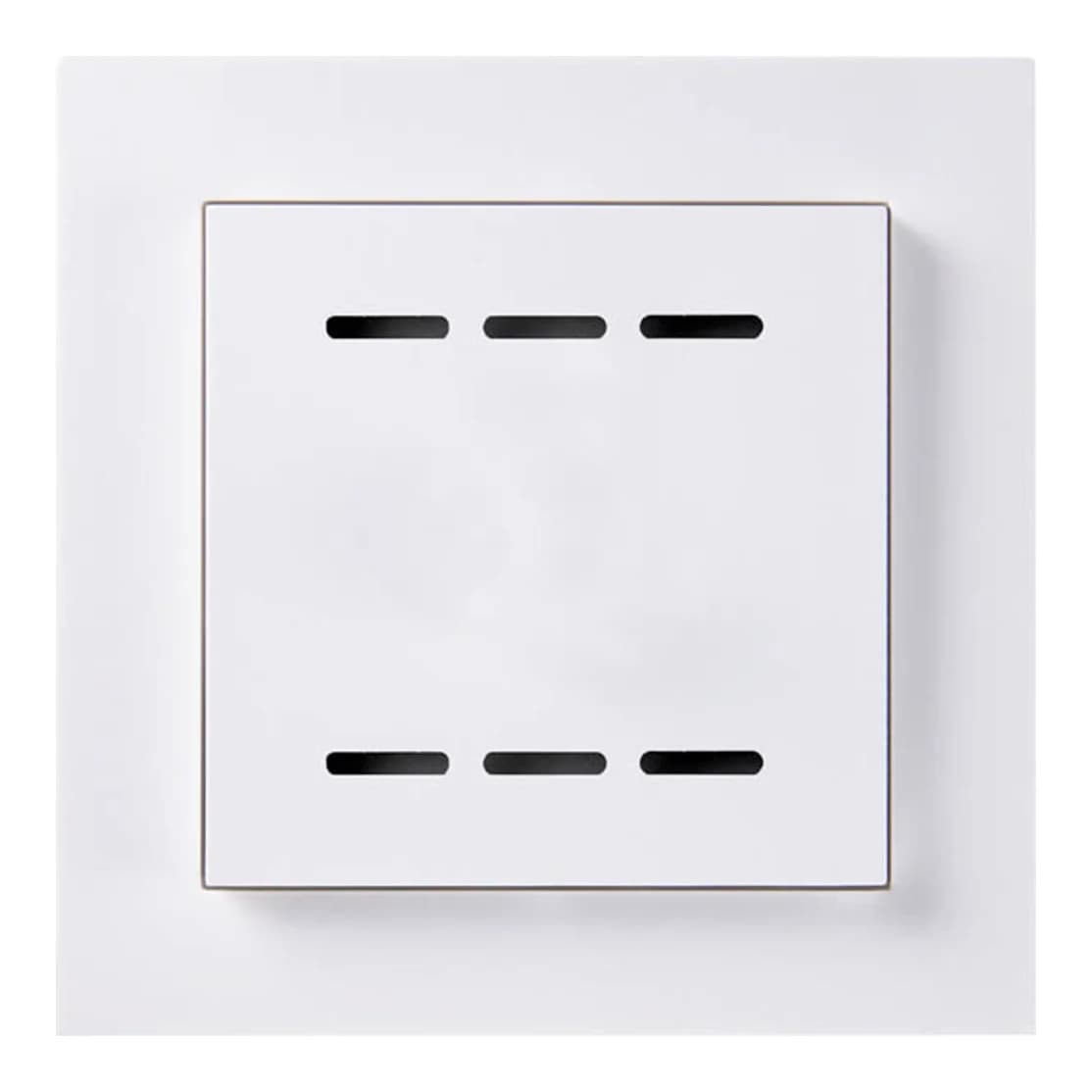

WRF06 active
Flush-mounted room sensor for temperature, humidity, CO2 and VOC with 0 to 10 V outputs, in frames from seven switch ranges.
Sign in for trade prices
Availability and lead time confirmed on your quote
Part number482721
Datasheet, PDF
- Quotes answered within 24 hours, no account needed
- DHL, under 15 kg £13.50 ex VAT
- Technical support from the people who commission it
Specification
Communication
- Connection
- Pluggable terminal block, up to 1.5 mm²
Electrical
- Power supply
- 15 to 24 V DC or 24 V AC, +/-10%
- Power consumption
- Typically 0.4 W up to 1.6 W (DC), 0.8 to 3.9 VA (AC), by version
Environment
- Protection
- IP30 IP rating
Performance
- Output signal
- 0 to 10 V, 1 to 4 channels, minimum load 5 kΩ or 10 kΩ, by version
- Measuring range
- Temperature 0 to +50 °C; humidity 0 to 100% rH, non-condensing; CO2 0 to 2000 ppm
- Accuracy
- Temperature +/-0.5 K at 21 °C; humidity +/-2% between 10 and 90% rH; CO2 +/-50 ppm + 3% of reading
- Sensor element
- NDIR for CO2; heated metal oxide for VOC
Physical
- Housing material
- PC
- Colour
- Pure white matt, pure white brilliant, anthracite, or the frame maker's white, by version
- Mounting
- Flush, in a standard EU box of 60 mm diameter, minimum depth 45 mm
- Dimensions
- 81 x 81 x 38 mm
Part numbers
- 627160Gira E2, pure white matt
- 582865Berker S.1, polar white brilliant
- 703925Busch-Jaeger Busch-balance SI, alpin white
- 703949Jung A 500, alpin white
- 703956Merten M-Smart, polar white brilliant
- 482721Temperature and humidity, pure white matt
- 732161Temperature and humidity, pure white brilliant
- 732192Temperature and humidity, anthracite
- 732420CO2, VOC, pure white matt
- 732437CO2, VOC, pure white brilliant
- 732468CO2, VOC, anthracite
- 732475CO2, VOC, temperature, humidity, pure white matt
- 732482CO2, VOC, temperature, humidity, pure white brilliant
- 732512CO2, VOC, temperature, humidity, anthracite
- 728492CO2, temperature, pure white matt
- 724555CO2, temperature, pure white brilliant
- 732123CO2, temperature, anthracite
- 732598CO2, temperature, humidity, pure white matt
- 726641CO2, temperature, humidity, pure white brilliant
- 732628CO2, temperature, humidity, anthracite
From the manufacturer's datasheet for WRF06 active.
Overview
The WRF06 is a flush-mounted room sensor for temperature, humidity and air quality in homes and offices. It connects to a controller or display system through 0 to 10 V outputs, from one to four depending on the version. It takes design frames from Berker, Busch-Jaeger, Feller, Gira, Jung, Merten and Peha, and sits in a single or multiple frame. Air quality versions show a three LED traffic light. The CO2 element is NDIR with dual channel self-calibration, and VOC is a heated metal oxide element.
