Thermokon · Room operating unit
WRF06 LCD active

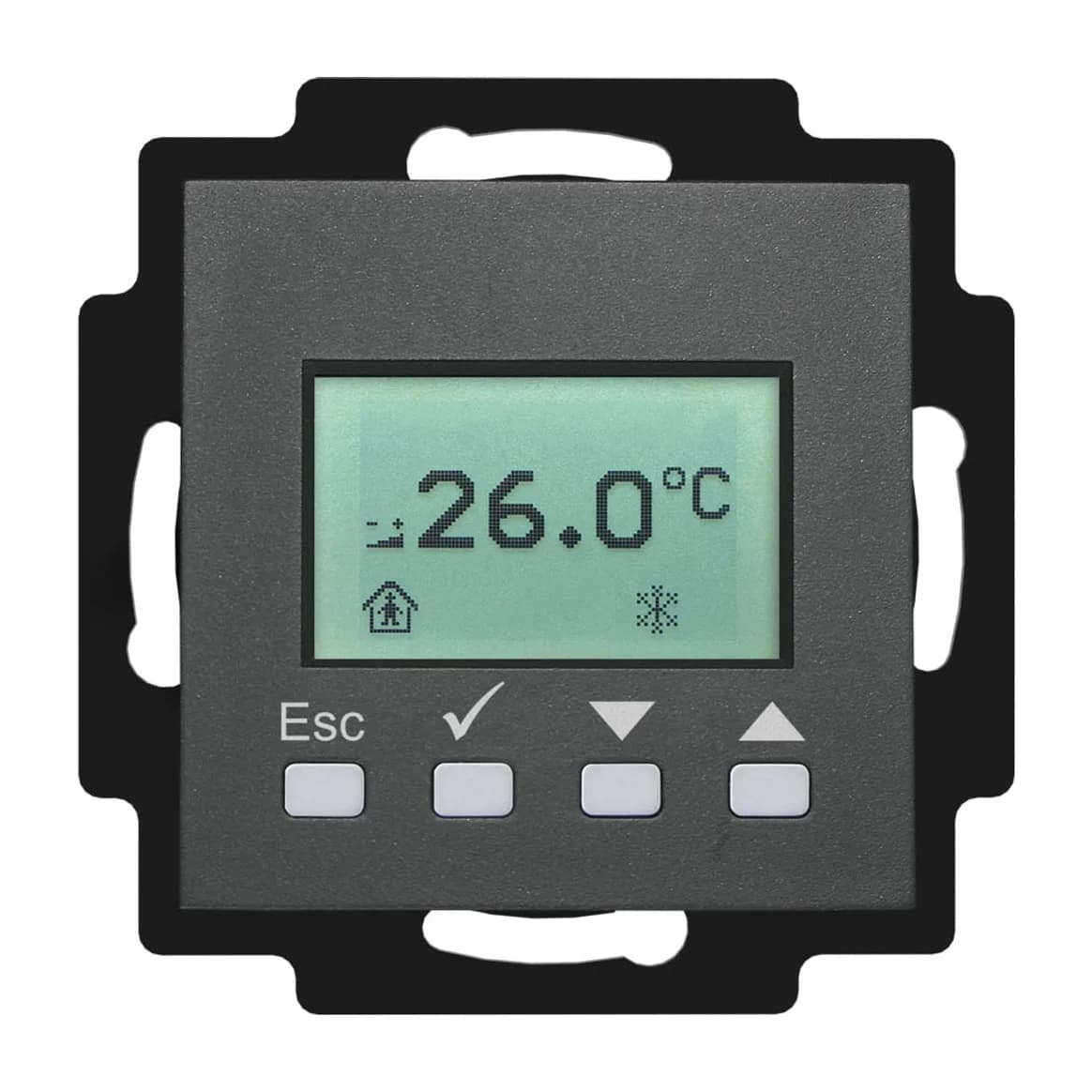

Flush mounted room operating unit with an LCD, four buttons and two 0 to 10 V outputs for setpoint and temperature.
Sign in for trade prices
Availability and lead time confirmed on your quote
Part number731089
- Quotes answered within 24 hours, no account needed
- DHL, under 15 kg £13.50 ex VAT
- Technical support from the people who commission it
Specification
Communication
- Connection
- Pluggable terminal block up to 1.5 mm2
Electrical
- Power supply
- 15 to 24 V DC (±10%) or 24 V AC (±10%), SELV
- Power consumption
- Typically 0.8 W at 24 V DC, 2.5 VA at 24 V AC
Environment
- Operating temperature
- 0 to +50 °C, humidity up to 85% rH non-condensing
- Protection
- IP30 IP rating
Performance
- Outputs
- 2 x 0 to 10 V, minimum load 1 kΩ: temperature actual value and setpoint
- Inputs
- 2 digital inputs for floating contacts
- Measuring range
- Temperature 0 to +50 °C
- Accuracy
- Temperature ±0.5 K typical at 21 °C
Physical
- Housing material
- PC
- Colour
- Pure white matt, pure white brilliant or anthracite
- Mounting
- Flush in a standard 60 mm EU box
- Dimensions
- 77 x 77 x 38 mm
From the manufacturer's datasheet for WRF06 LCD active.
Overview
The WRF06 LCD is a flush mounted room operating unit for hotel rooms, offices and living spaces. Four push buttons adjust the setpoint, fan stage and occupancy, and the LCD shows temperature, fan stage and occupancy. The VV version here has two 0 to 10 V outputs for the actual temperature and the setpoint, and two digital inputs for floating contacts that trigger messages on the display. Removable terminals allow pre-wiring. It fits a standard 60 mm EU box behind a switch range frame. Frames from Berker, Busch-Jaeger, Feller, Gira, Jung, Merten and Peha are supported, and the frame has to be chosen when ordering.
