WRF06 LCD RC RS485 Modbus

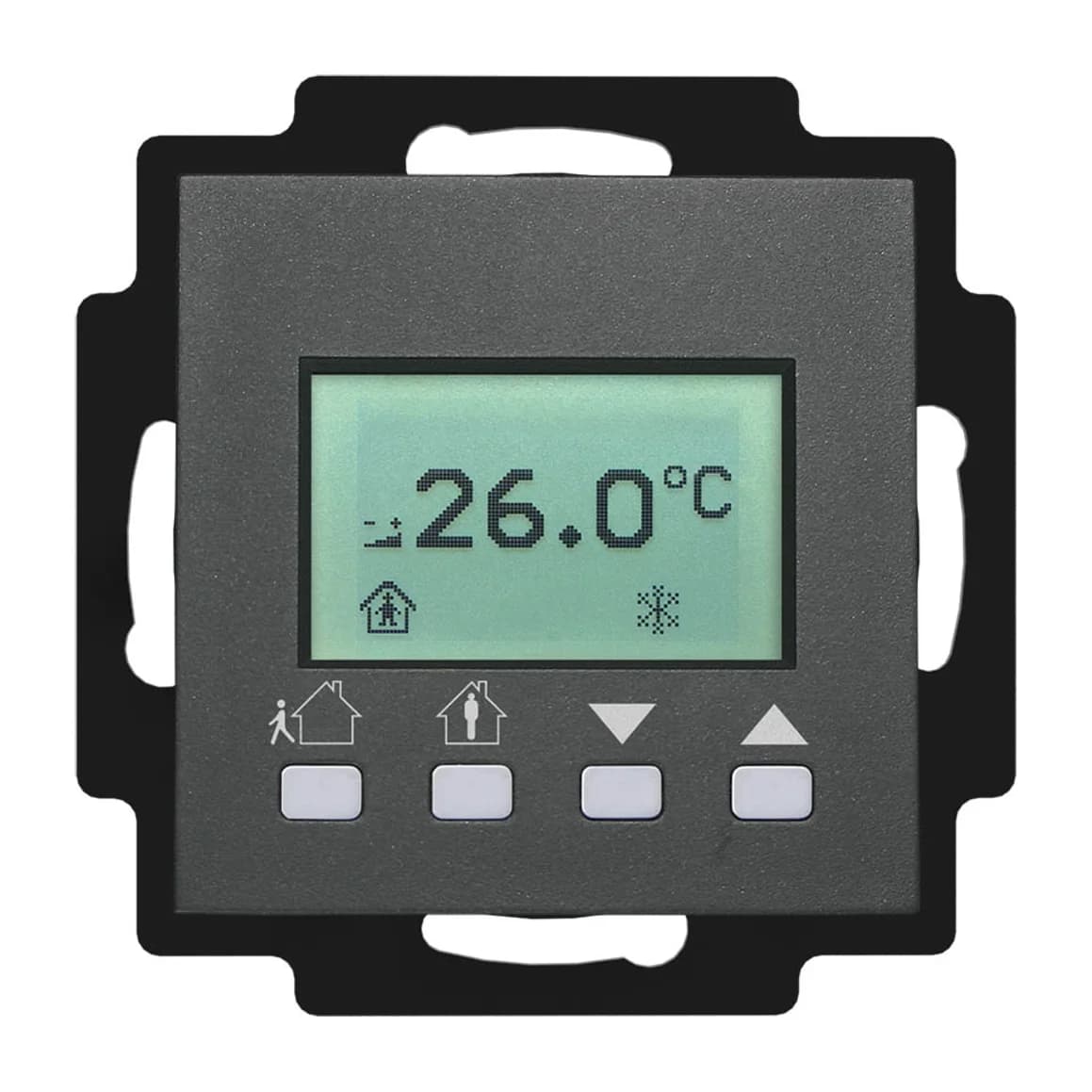

Flush-mounted room controller with LCD and four buttons for setpoint, fan stage and presence, with Modbus RTU and a choice of I/O versions.
Sign in for trade prices
Availability and lead time confirmed on your quote
Part number731140
Datasheet, PDF
- Quotes answered within 24 hours, no account needed
- DHL, under 15 kg £13.50 ex VAT
- Technical support from the people who commission it
Specification
Communication
- Protocol
- Modbus RTU over RS485, 9600 to 57600 baud
- Connection
- Pluggable terminal block, up to 1.5 mm²
Electrical
- Power supply
- 15 to 24 V DC or 24 V AC, +/-10%
- Power consumption
- Typically 0.9 W (DC), 1 VA (AC)
Environment
- Protection
- IP30 IP rating
Performance
- Inputs
- 2 or 4 digital inputs for floating contacts, by version
- Outputs
- 2 x 0 to 10 V, minimum load 10 kΩ (AO2V); NO relay contacts and triac outputs up to 3 A or 1 A, 24 V (DO2R, DO2T)
- Measuring range
- Temperature 0 to +50 °C; humidity 0 to 100% rH, non-condensing
- Accuracy
- Temperature +/-0.5 K at 21 °C; humidity +/-2% between 10 and 90% rH
Physical
- Housing material
- PC
- Colour
- Pure white matt, pure white brilliant or anthracite, by version
- Mounting
- Flush, in a standard EU box of 60 mm diameter, minimum depth 45 mm
- Dimensions
- 77 x 77 x 38 mm
Part numbers
- 7311404 digital inputs, pure white matt
- 7300684 digital inputs, pure white brilliant
- 7312014 digital inputs, anthracite
- 4151252 x 0 to 10 V outputs, pure white matt
- 7313792 x 0 to 10 V outputs, pure white brilliant
- 7314092 x 0 to 10 V outputs, anthracite
- 7314162 relay outputs, pure white matt
- 7314232 triac outputs, pure white matt

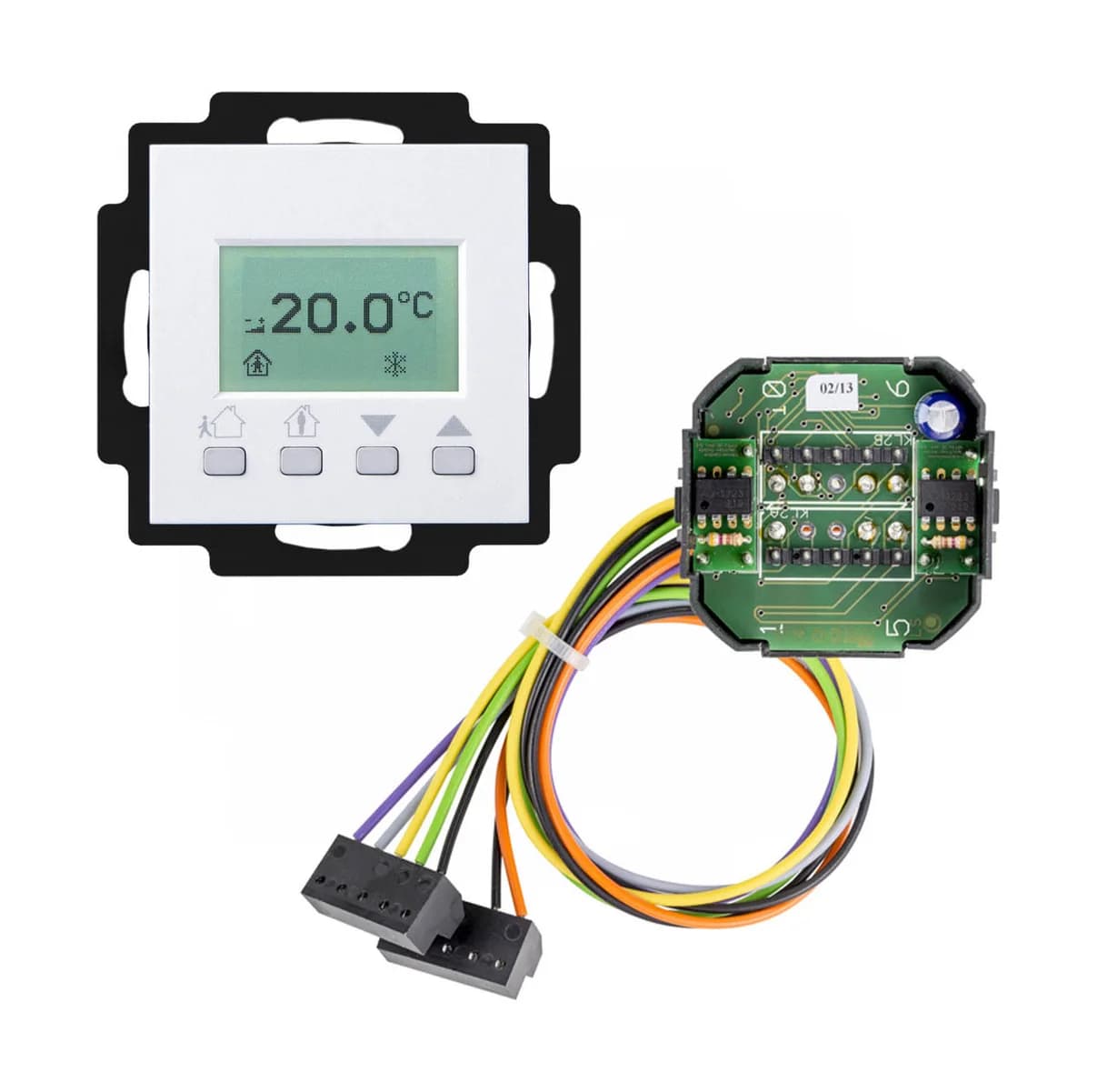

- 731430OVR output extension, pure white matt
- 731447OVT output extension, pure white matt
From the manufacturer's datasheet for WRF06 LCD RC RS485 Modbus.
