Thermokon · Room controller · LON

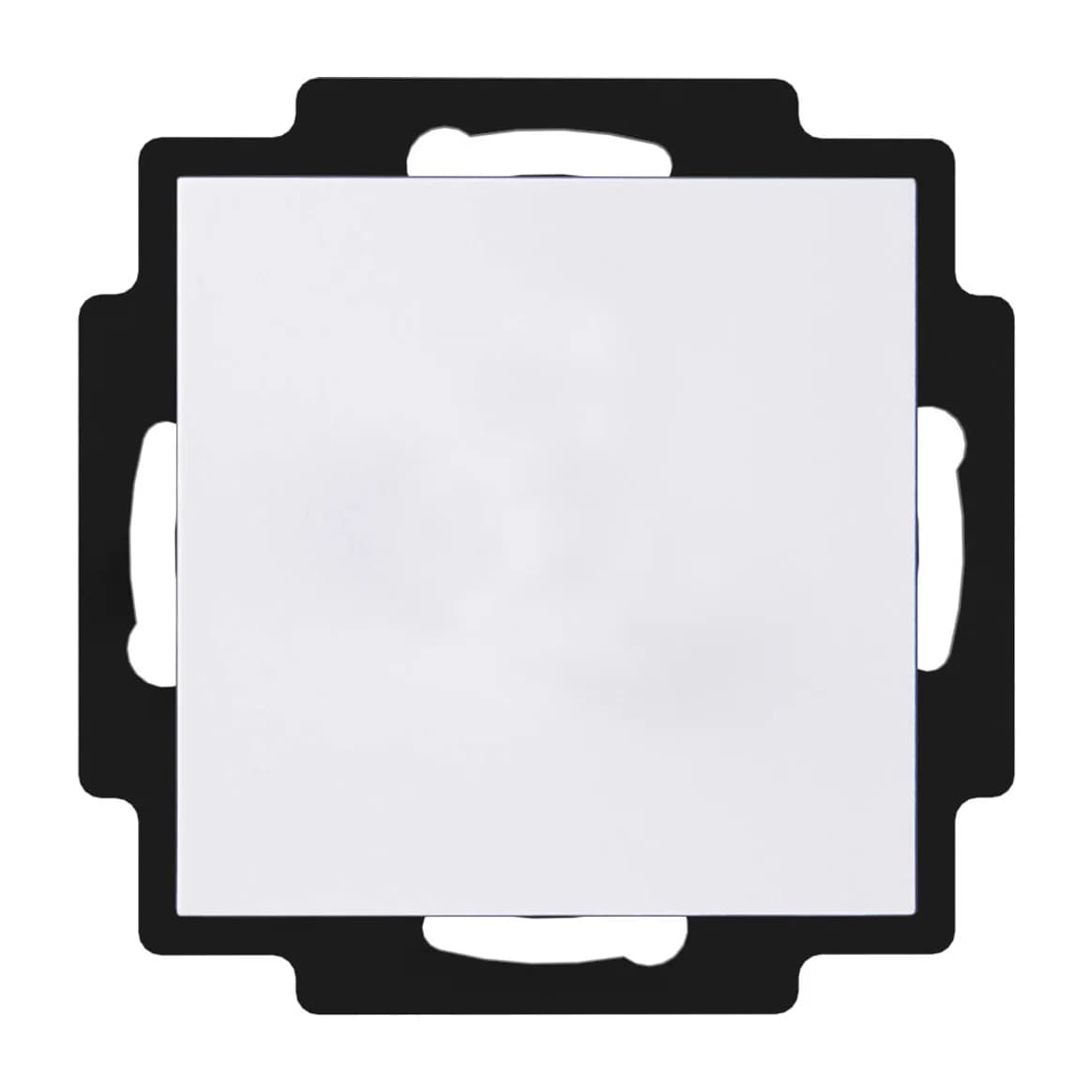

WRF06 RC LON

Name: WRF06 RC LON
Brand: Thermokon

Flush-mounted LON room controller with a temperature sensor, for fitting into the frames of common switch ranges.

Availability and lead time confirmed on your quote

Colour: Pure white matt

Output: 2 analogue outputs

Part number781411

Quotes answered within 24 hours, no account needed
DHL, under 15 kg £13.50 ex VAT
Technical support from the people who commission it

Specification

Communication

Protocol: LON FT (free topology)
Connection: Pluggable terminal block, up to 1.5 mm²

Electrical

Power supply: 15 to 24 V DC +/-10% or 24 V AC +/-10%
Power consumption: Typ. 0.9 W (24 V DC), 1 VA (24 V AC)

Environment

Operating temperature: 0 to +50 °C
Humidity: Max. 85% rH, non-condensing
Protection: IP20 IP rating

Performance

Inputs: 4 digital inputs for floating contacts (DI4 versions)
Outputs: 2 x 0 to 10 V, min. load 10 kΩ (AO2V versions)
Measuring range: 0 to +50 °C temperature
Accuracy: +/-0.5 K (typ. at 21 °C)

Physical

Housing material: PC, with Thermokon central disc
Mounting: Flush in a standard EU box, 60 mm diameter, min. 45 mm deep
Dimensions: 81 x 81 x 38 mm

Part numbers

From the manufacturer's datasheet for WRF06 RC LON.

Overview

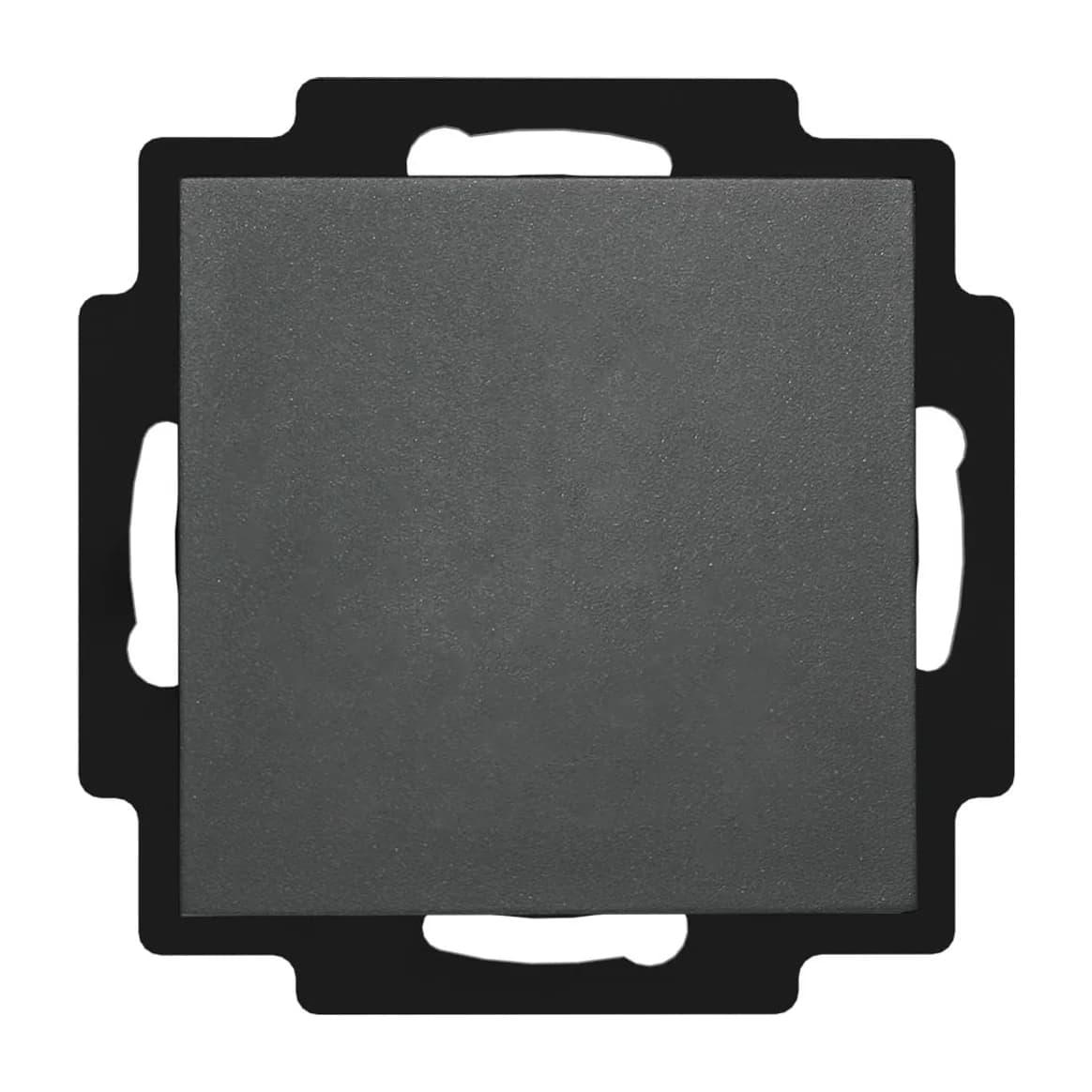

The WRF06 RC is a flush-mounted room unit with a temperature sensor and a LON FT (free topology) interface. It sits in a standard EU box, separately in a single frame or in a multiple frame, and takes design frames from many switch ranges, so it suits design-led interiors. Two versions are listed. The AO2V version has two 0 to 10 V outputs for heating and cooling or a 6-way valve. The DI4 version has four digital inputs for floating switch contacts. Each comes in five colours, and the frame must be named when ordering.
