Thermokon · Room controller · Modbus

WRF06 RC RS485 Modbus

Name: WRF06 RC RS485 Modbus
Brand: Thermokon

Flush-mounted temperature sensor and room controller with Modbus RTU, in switch range design frames, with digital inputs or 0 to 10 V outputs.

Availability and lead time confirmed on your quote

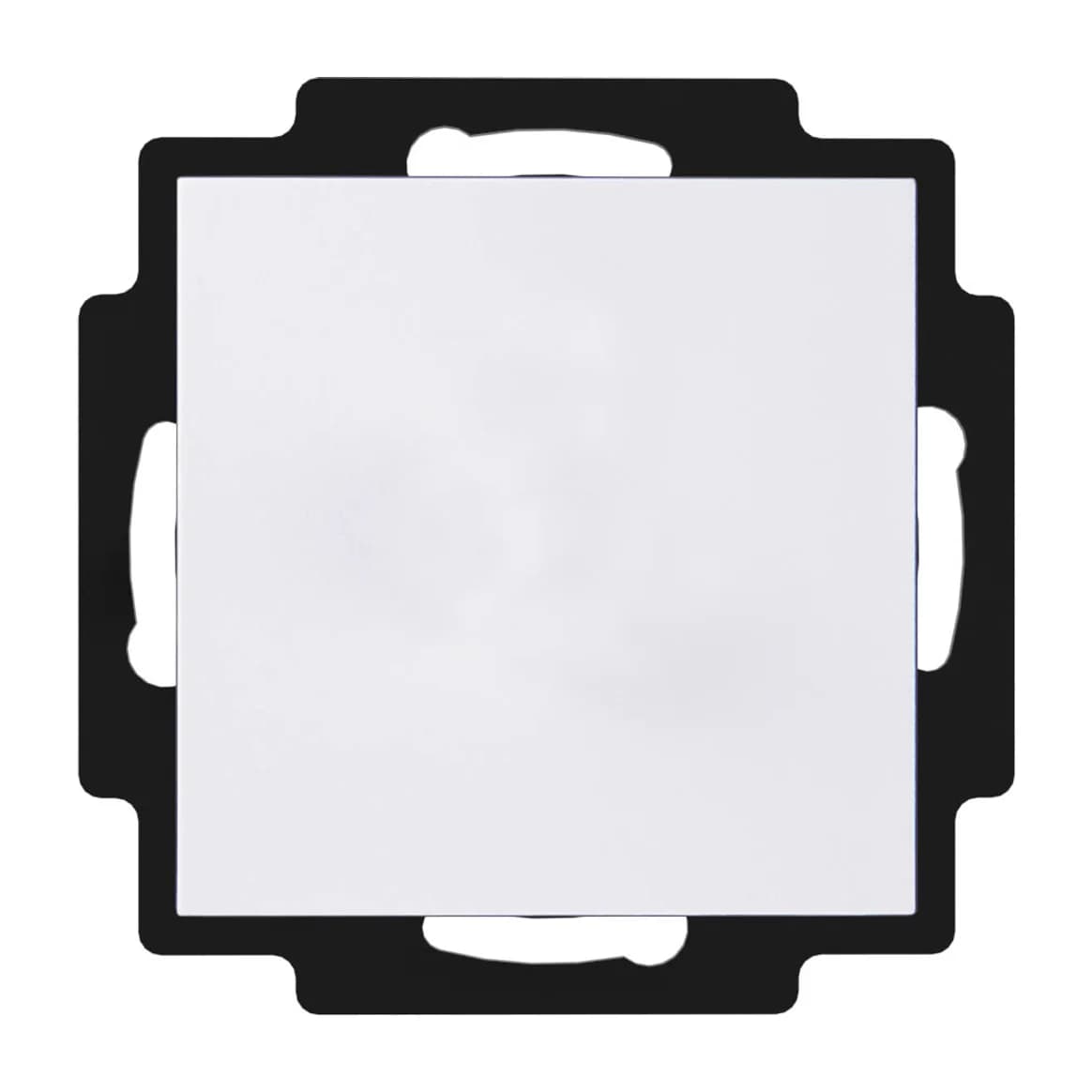

Colour: Pure white matt

Output: 4 digital inputs

Part number781916

Quotes answered within 24 hours, no account needed
DHL, under 15 kg £13.50 ex VAT
Technical support from the people who commission it

Specification

Communication

Protocol: Modbus RTU, half-duplex, RS485
Interface: RS485 Modbus, 9600, 19200, 38400 or 57600 baud, parity none (2 stop bits), even or odd (1 stop bit)
Connection: Pluggable terminal block, max. 1.5 mm²

Electrical

Power supply: 15 to 24 V DC (+/-10%) or 24 V AC (+/-10%)
Power consumption: Typical 0.9 W (24 V DC), 1 VA (24 V AC)

Environment

Operating temperature: 0 to +50 °C
Humidity: max. 85% rH, non-condensing
Protection: IP30 IP rating

Performance

Inputs: 4 digital, floating contact (DI4); 2 digital, floating contact (AO2V)
Outputs: 2 x 0 to 10 V, min. load 10 kohm (AO2V)
Measuring range: Temperature
Accuracy: +/-0.5 K, typical at 21 °C

Physical

Housing material: PC
Mounting: Flush in standard EU box, 60 mm diameter, min. 45 mm deep
Dimensions: 81 x 81 x 38 mm

Part numbers

From the manufacturer's datasheet for WRF06 RC RS485 Modbus.

Overview

The WRF06 RC is a flush-mounted room temperature sensor that connects to controllers and display systems over RS485 Modbus RTU. It is designed to match the frames of common switch ranges, so it can sit alone or in a multiple frame. One version, DI4, has four digital inputs for floating contacts. The other, AO2V, has two 0 to 10 V outputs for heating and cooling or for a 6-way valve, and two digital inputs. It mounts in a standard 60 mm EU box at least 45 mm deep and is configured with software, DIP switches or jumpers depending on the type.
