Thermokon · Room controller · LON

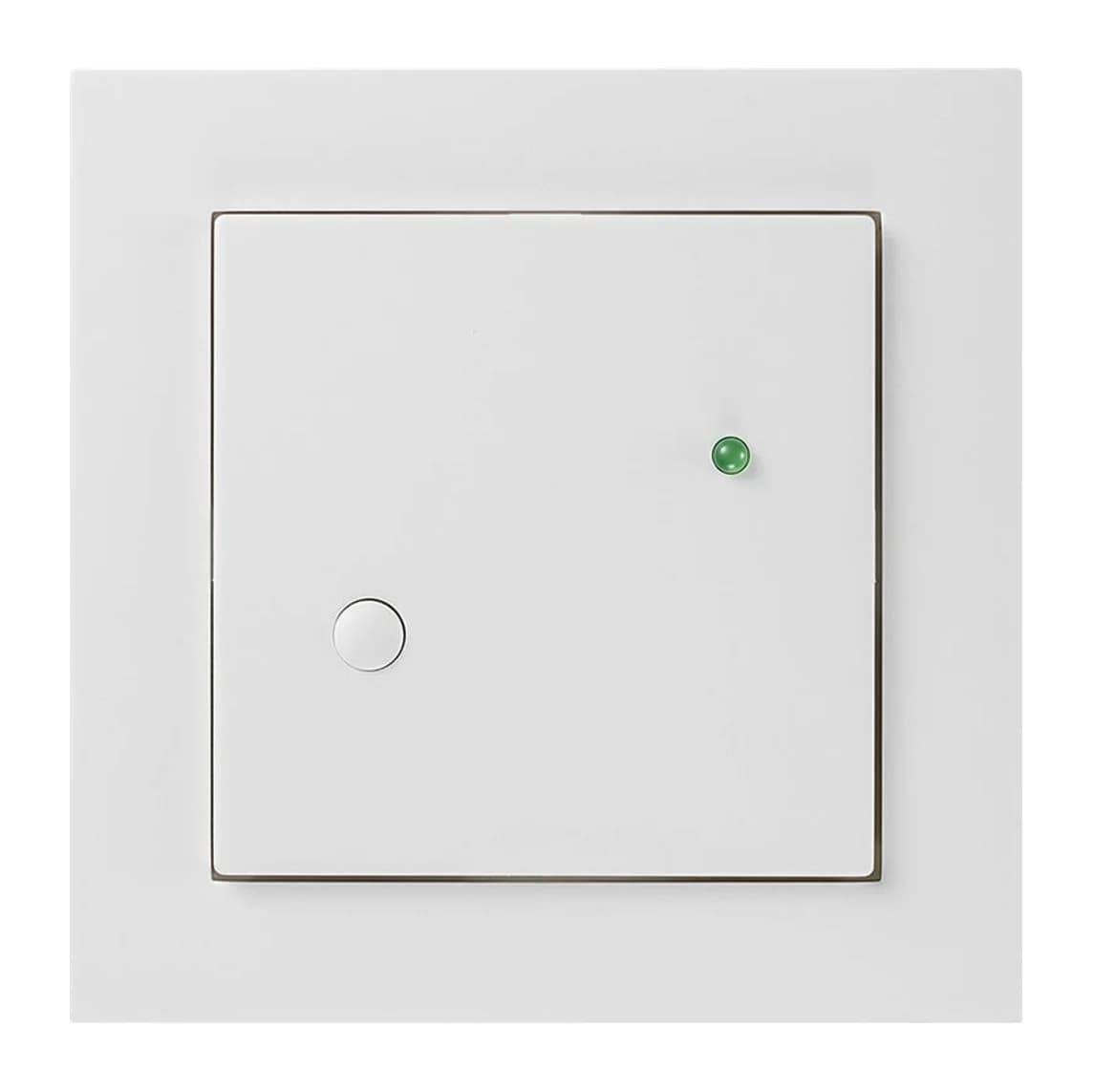

WRF06 RC x LON

Name: WRF06 RC x LON
Brand: Thermokon

Flush-mounted room operating unit for LON networks with a temperature sensor, presence button and LED, in the Gira E2 frame.

Availability and lead time confirmed on your quote

Version: 4 digital inputs

Part number696555

Quotes answered within 24 hours, no account needed
DHL, under 15 kg £13.50 ex VAT
Technical support from the people who commission it

Specification

Communication

Protocol: LON FT (free topology)
Connection: Pluggable terminal block, up to 1.5 mm²

Electrical

Power supply: 24 V DC or 24 V AC, +/-10%
Power consumption: Typically 0.9 W (DC) or 1 VA (AC)

Environment

Operating temperature: -35 to +70 °C
Humidity: Maximum 85% rH, non-condensing
Protection: IP20 IP rating

Performance

Inputs: 4 digital inputs for floating contacts (DI4 version)
Outputs: 2 x 0 to 10 V, minimum load 10 kΩ (AO2V version)
Accuracy: +/-0.5 K at 21 °C

Physical

Mounting: Flush, in a standard EU box of 60 mm diameter, minimum depth 45 mm
Dimensions: 81 x 81 x 38 mm

Part numbers

From the manufacturer's datasheet for WRF06 RC x LON.

Overview

The WRF06 RC x LON is a flush-mounted room operating unit that joins a LON FT free topology network. It has a temperature sensor, a presence button and a green status LED. Pluggable terminals allow pre-wiring. Two versions are listed. One adds four digital inputs for floating contacts. The other adds two 0 to 10 V outputs, which can drive heating and cooling or a 6 way control valve. Both are supplied with a Gira E2 frame in pure white matt.
