Thermokon · Room controller · BACnet

WRF07 RC x RS485 BACnet

Name: WRF07 RC x RS485 BACnet
Brand: Thermokon

Flush-mounted room unit on a Gira E2 frame with temperature sensor, two 0 to 10 V outputs and a BACnet MS/TP connection.

Availability and lead time confirmed on your quote

Version: Potentiometer, button, LED

Part number628167

Quotes answered within 24 hours, no account needed
DHL, under 15 kg £13.50 ex VAT
Technical support from the people who commission it

Specification

Communication

Protocol: BACnet MS/TP (RS485)
Connection: Terminal block, max. 1.5 mm²

Electrical

Power supply: 24 V DC ±10% SELV or 24 V AC ±10% SELV
Power consumption: Typ. 0.9 W (24 V DC), 1 VA (24 V AC)

Environment

Operating temperature: 0 to +50 °C
Humidity: Max. 85% rH non-condensing
Protection: IP20 IP rating

Performance

Outputs: 2 x 0 to 10 V, min. load 10 kΩ
Inputs: 2 x digital for floating switch contact
Measuring range: Temperature 0 to +50 °C
Accuracy: Temperature ±0.5 K (typ. at 21 °C)

Physical

Colour: Pure white matt (Gira E2 frame)
Mounting: Flush, in standard 60 mm EU box (min. depth 45 mm)
Dimensions: 81 x 81 x 38 mm
Weight: 50 g

Part numbers

From the manufacturer's datasheet for WRF07 RC x RS485 BACnet.

Overview

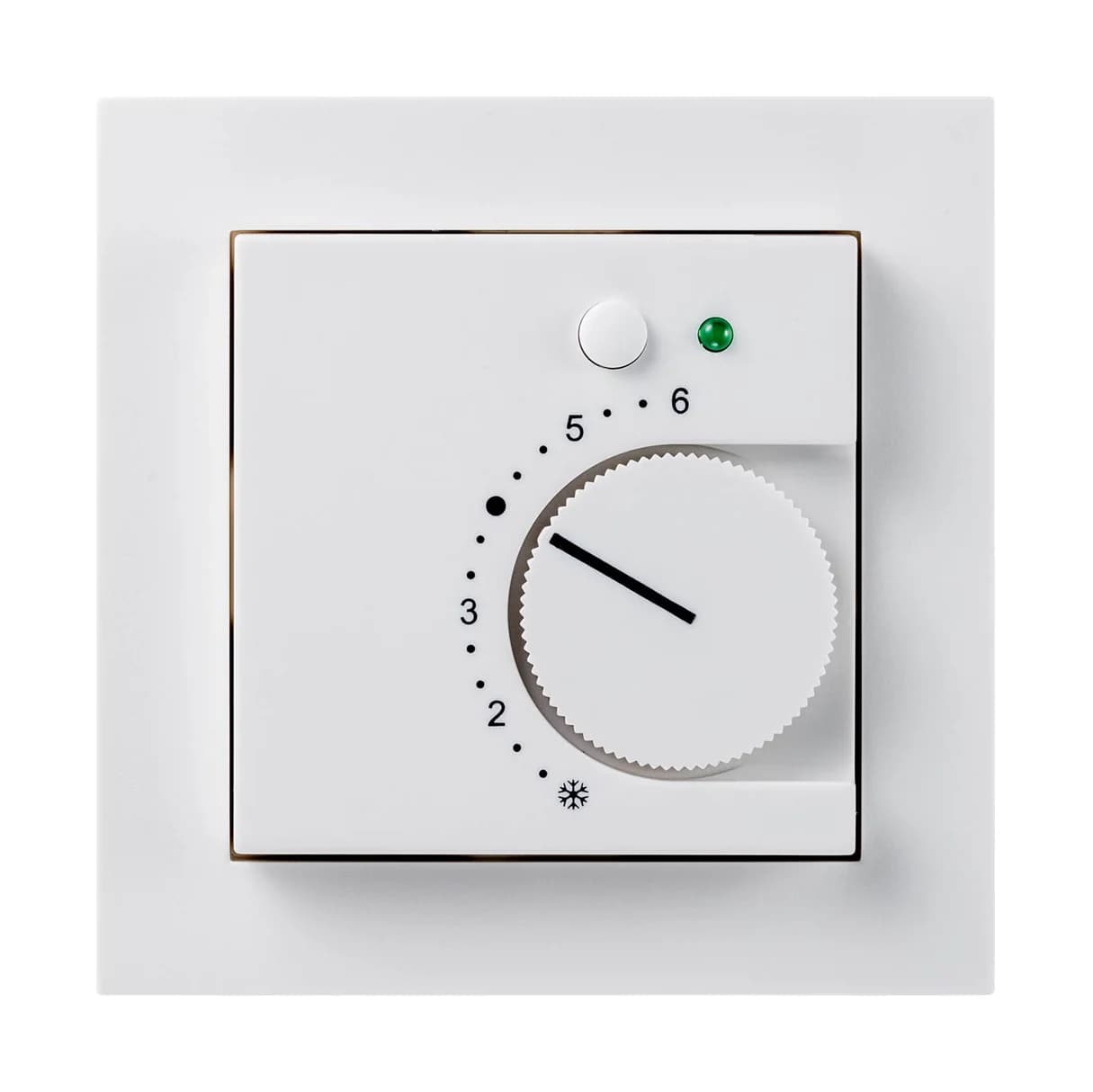

The WRF07 RC is a flush-mounted room unit built to match switch ranges from several manufacturers, here in pure white matt on a Gira E2 frame. It has an integrated temperature sensor, two 0 to 10 V outputs for heating and cooling or a 6-way valve, and an RS485 BACnet MS/TP connection. The removable terminal allows pre-wiring. The two versions differ in the operating elements: a setpoint potentiometer alone, or a potentiometer with a button and green status LED.
