Thermokon · Room operating unit
Flush-mounted room operating unit in the design of common switch ranges, with a passive sensor element, a 10 kΩ setpoint potentiometer and optional button, rocker switch and LED.
Availability and lead time confirmed on your quote
Part number399012
From the manufacturer's datasheet for WRF07 x passive.

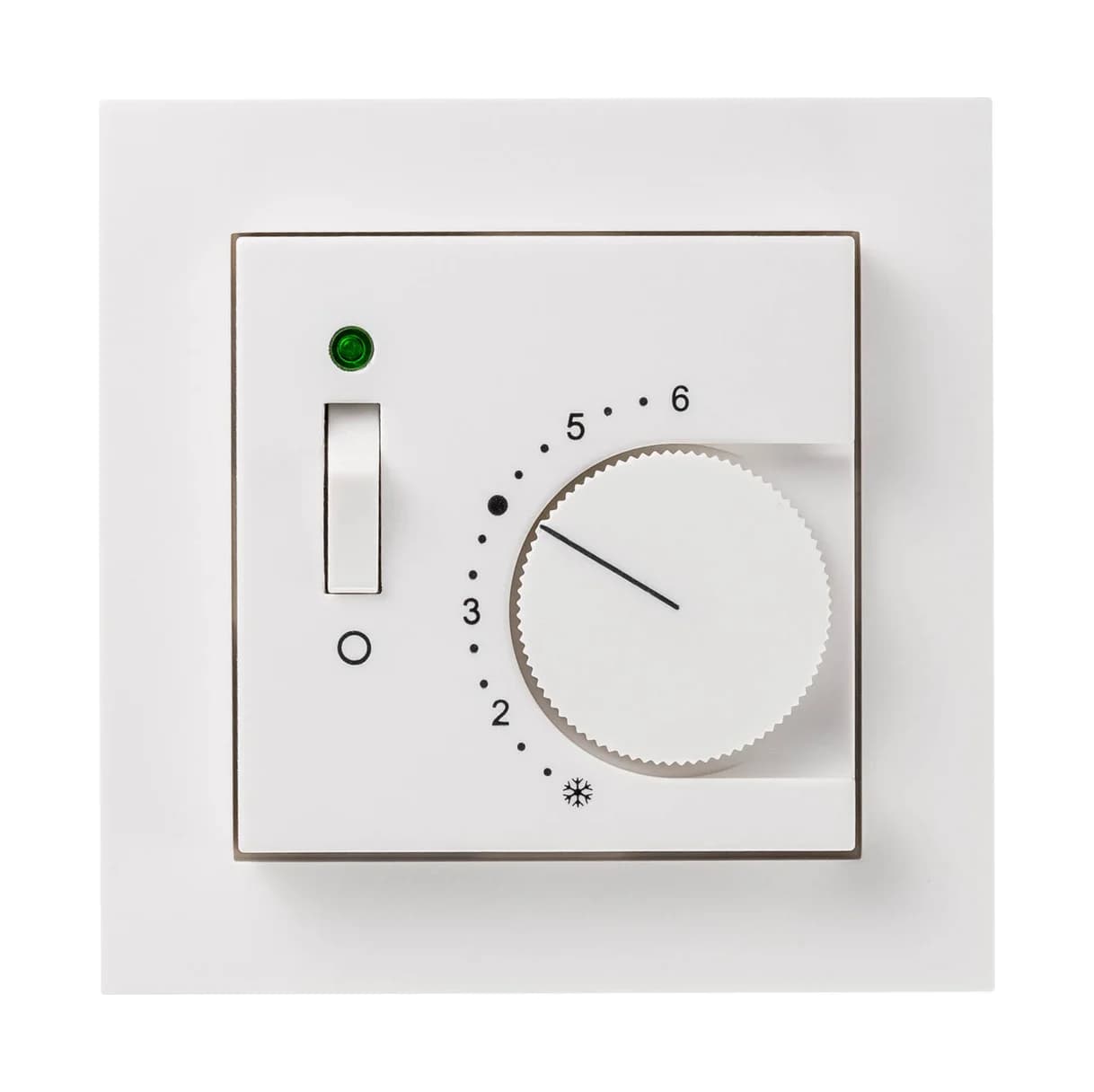

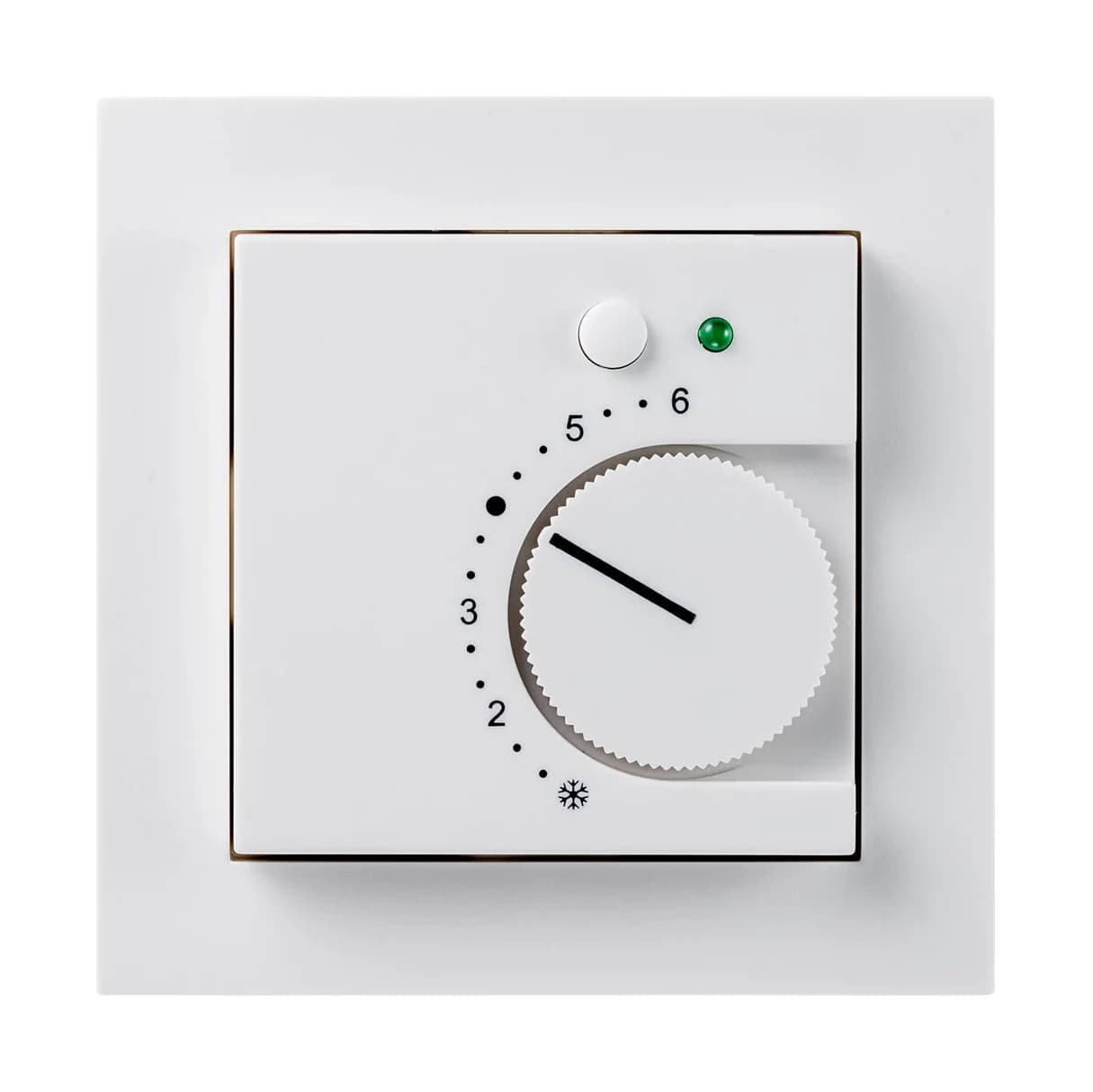

The WRF07 x passive is a room operating unit that sits in a standard EU flush box and takes the look of a switch range from Berker, Busch-Jaeger, Feller, Gira, Jung, Merten or Peha. It is a passive device: the setpoint potentiometer is a 10 kΩ resistance, and the temperature sensor is a passive element chosen from the list below. The versions listed here have the potentiometer only (P), a button and green status LED (PTD), or a rocker switch for fan stages and a green status LED (PSD). Each can be had without a sensor or with Pt100, Pt100 1/3 DIN, Pt1000, Pt1000 1/3 DIN, Ni1000, Ni1000TK5000 or NTC10k. All are shown in a Gira E2 frame in pure white matt. The terminal is removable, so the unit can be pre-wired.
