5P-IES

DATA SHEET

DESCRIPTION

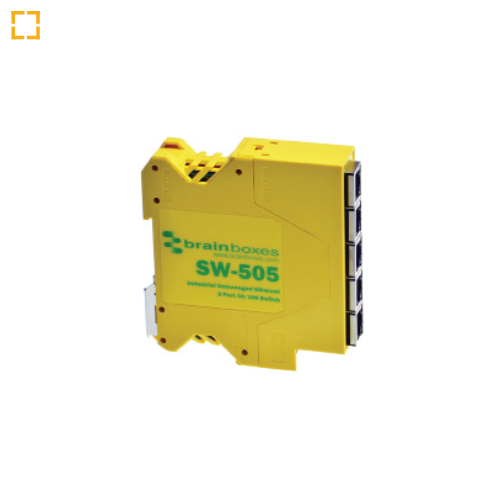

The SW-505 from Brainboxes is a rugged, compact 5-port unmanaged Ethernet switch designed for reliable, maintenance-free operation in industrial and mobile environments. With support for 10/100 Mbps auto-sensing, Auto MDI/MDIX, and a wide input voltage range of +5V to +30V DC, it offers seamless, plug-and-play Ethernet connectivity for control panels, vehicles, and harsh environments.

Built into a DIN-rail mountable, non-conductive IP-20 polyamide housing, the SW-505 operates across extreme temperatures from -40°C to +80°C. It features redundant dual power inputs, broadcast storm protection, and magnetic isolation for enhanced electrical resilience.
