DDC420

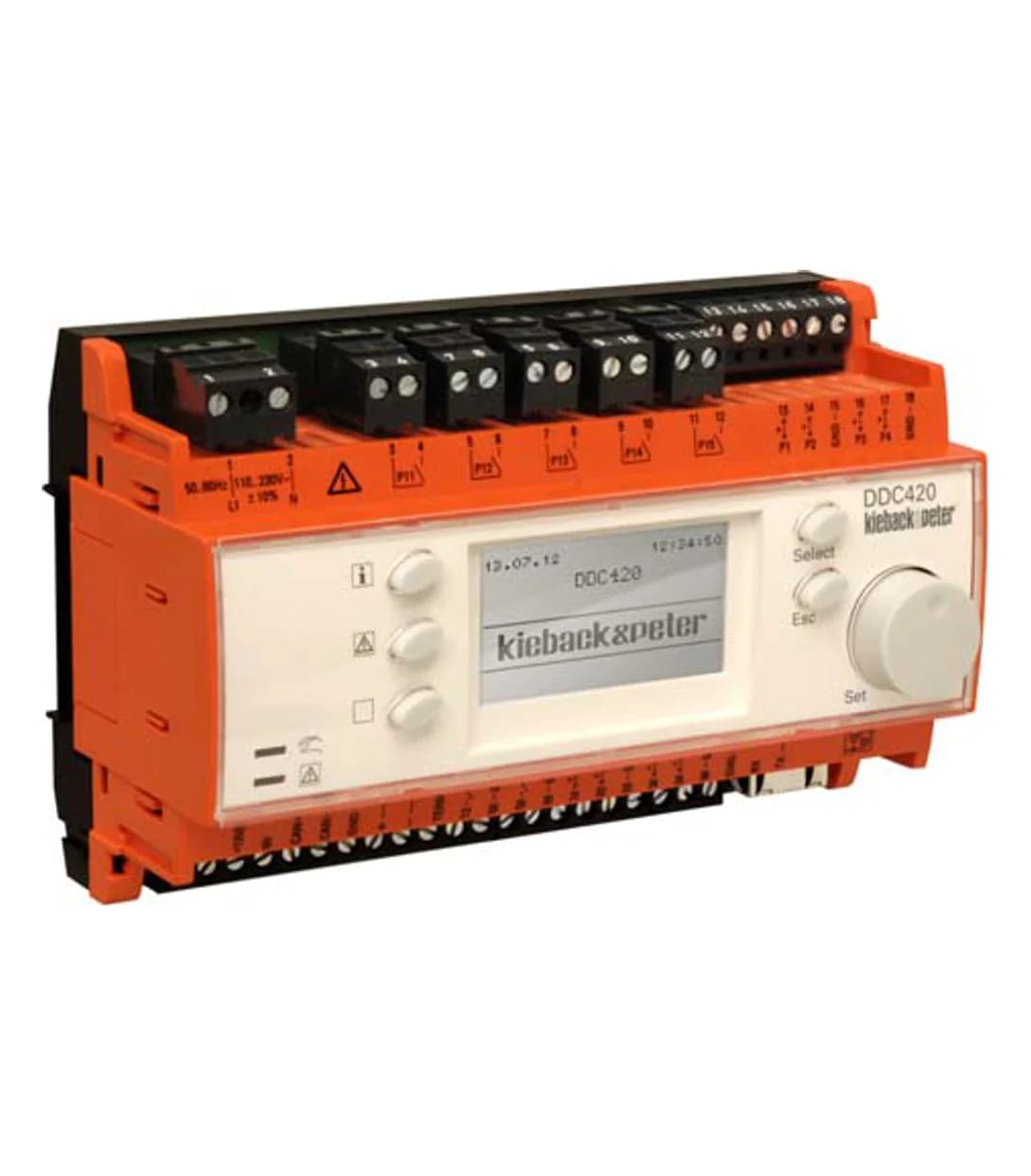

DDC420 is a compact DIN-rail automation station with 15 on-board points, a local display, a web server and BACnet/IP for HVAC and heating control.
Production stopped
The maker has stopped production. We confirm availability on your quote.
Replaced by DDC520
Sign in for trade prices
Production stopped
Part numberDDC420
Datasheet, PDF
- Quotes answered within 24 hours, no account needed
- DHL, under 15 kg £13.50 ex VAT
- Technical support from the people who commission it
Specification
Communication
- Protocol
- BACnet/IP; BACnet MS/TP master (RS485)
- Interface
- Ethernet RJ45 10/100 Mbit/s; 1 CAN fieldbus 2000 m at 20 kBd; RS232 (modem); RS485
Electrical
- Power supply
- 110 to 230 V AC ±10%, 50/60 Hz, 21 VA
Environment
- Operating temperature
- 0 to 50 °C
- Humidity
- 20 to 80 % r.h., non-condensing in operation
- Protection
- IP20 when installed IP rating
Performance
- Inputs
- 2 binary (also pulse counting to 80 Hz); 8 universal (P1 to P8)
- Outputs
- 5 relay changeover outputs, 5(3) A at 250 V AC; universal points as transistor output 24 V DC max 40 mA or analog 0 to 10 V max 2.5 mA
Physical
- Mounting
- TH 35x7.5 top hat rail in a closed enclosure
- Dimensions
- 143.5 x 90 x 67 mm
- Weight
- About 0.345 kg
From the manufacturer's datasheet for DDC420.
Overview
The DDC420 is a stand-alone controller for heating, ventilation and air conditioning plant. It has five relay outputs, two binary inputs that also count pulses up to 80 Hz, and eight universal points that can each be set as a binary output, binary input, analog output or analog input. Inputs accept the usual temperature sensors (KP10, Ni1000, PT100, PT1000, NTC and others) and 0 to 10 V signals. A backlit graphic display with a set knob and buttons gives local operation, and an integrated web server gives remote operation from a browser with no extra software. The controller communicates over Ethernet using BACnet/IP and has an RS485 BACnet MS/TP master port, an RS232 port for a modem, and a CAN fieldbus for expansion with FBM and FBU modules and RBW room operating units. A battery-buffered clock keeps time for 10 years. Remote TPC touch panels connect to it over TCP/IP.
